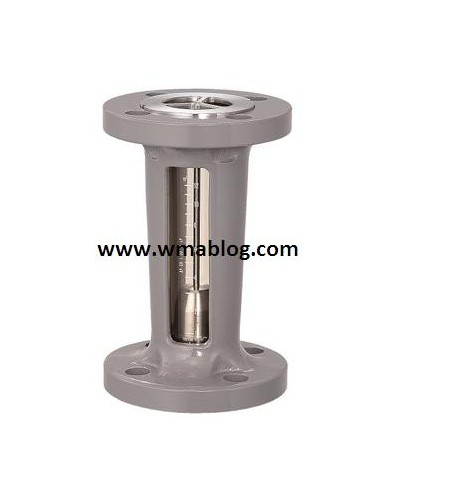

Flow Meter MODEL RK1950AP SERIES
Gambar Produk
Flow Meter MODEL RK1950AP SERIES
Update Terakhir
24-11-2017
Minimum Pembelian
1 unit
Dilihat Sebanyak
124 kali
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Flow Meter MODEL RK1950AP SERIES
Large Capacity Flow Meter
MODEL RK1950AP SERIES
Amber tapered tube with secure structure
Features
-Float receiver functions also as a joint, for secure piping.
- The block tapered tube has an O-ring seal.
-The integral housing protects the tapered tube.
-The tapered tube made of engineering plastic is impact-resistant.
Standard Specifications
|
Accuracy |
±2%F.S |
||
|
Max. operating temperature |
120℃ |
||
|
Max. operating pressure |
1 MPa for 40 A or less |
0.8 MPa for 50 A or more |
|
|
Direction of flow |
Bottom → Top |
||
|
Coating |
Finish color: Gray (Close to Munsell N-6.5) |
||
|
Connection standard |
JIS10K-RF 10A-100A |
Flange only |
|
|
Part name |
Material |
|
Float receiver |
SUS304 |
|
O-ring |
NBR |
|
Tapered tube |
Polysulfone resin (Transparent amber) |
|
Housing |
Ductile cast iron: FCD400 |
|
Rod |
SUS304 |
|
Float |
SUS304 |
|
Bore |
For water |
For air |
|
10A |
1.5-10L/min |
120-400L/min |
|
15A |
1.5-15L/min |
120-500L/min |
|
20A |
1.5-30L/min |
0.12-1m3/min |
|
25A |
9-100L/min |
0.35-3.5m3/min |
|
32A |
60-150L/min |
2.5-6m3/min |
|
40A |
90-200L/min |
3-7m3/min |
|
50A |
80-300LL/min |
3-10m3/min |
|
65A |
250-500L/min |
9-18m3/min |
|
80A |
250-500L/min |
9-18m3/min |
|
100A |
400-900L/min |
15-30m3/min |
*Gas (Applicable t0o N2, H2, Ar, etc)
*Maximum scale range (20°C at 0.005Mpa for AIR)
*Threaded type for 10-25 A
Flange type for 10-100 A
