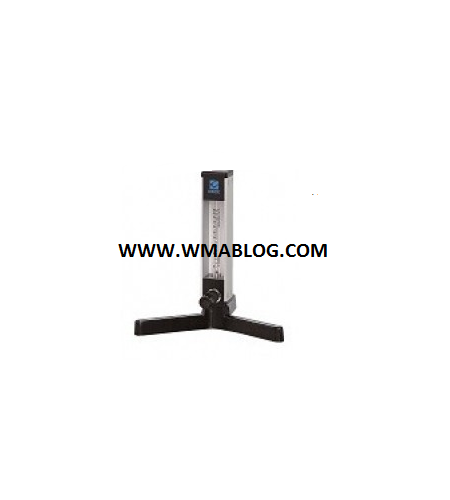

Precision Flow Meter for Laboratory 1350 Series
Perhatian!
Spesifikasi Precision Flow Meter for Laboratory 1350 Series
MODEL 1350 SERIES
The easy-to-heandly RK1350 Series for laboratory use is ideal for high-precision measurement and control of very small flow.
Features
· 1.Calibration with actual standard gases for high-precision flow control.
· 2. Control of very small flow.
· 3. Measurement of wide-ranging flow from 0.5-5 ML/MIN to 3-30 L/MIN
· 4. The flow meters come in four types with total length of 126, 156, 206, or 256mm
Standard Spesifications
|
|
Gas |
Liquid |
|
Fluids |
Air, N2,O2,H2,He,Ar,CO2, (calibration with actual gas) For other gases, please consult us regarding conversion conditions or calibration with the actual gas to be used. *Option : Scales for two types of fluids |
Standard fluids (Water) For other liquids, please consult us regarding conversion conditions or calibration with actual liquid to be used. |
|
Flow range |
0.5-5ML/MIN (Refer to the Capacity List on page 55.) *Option : 0.5-3 ML/MIN |
0.5-5ML/MIN to 0.1-1L/MIN (Refer to the capacity Table on page 55.) *Option : 0.5-3 ML/MIN |
|
Accuracy |
FS ±2% (Measurement point) *Option : FS ±1% (Measurement point) |
FS ±2% (Measurement point) |
|
Proof Pressure |
100 ML/MIN or less : 1.0 Mpa 5 L/MIN or less : 0.7 Mpa 10 L/MIN or more : 0.5 MPa |
5 ML/MIN or less : 1.0 Mpa 150 ML/MIN or less : 0.7Mpa 200 ML/MIN or less : 0.5 Mpa |
|
Available scale |
10:1 *option 20:1 |
|
|
Material |
SS |
BS |
|
Body block |
SUS316 |
Brass |
|
Tapered tube |
Pyrex®, glass |
|
|
Packing |
FKM |
NBR |
|
Float |
Pyrex®, SUS316, glass |
|
|
Protective cover |
Acrylic resin |
|
|
Temperature resistance |
MAX60℃ |
|
|
End connection |
Rc1/4 (Standard), Rc1/8 (Optional) |
|
