Spesifikasi Flowmeters MODELS RK2000/RK2005/RK2006 SERIES

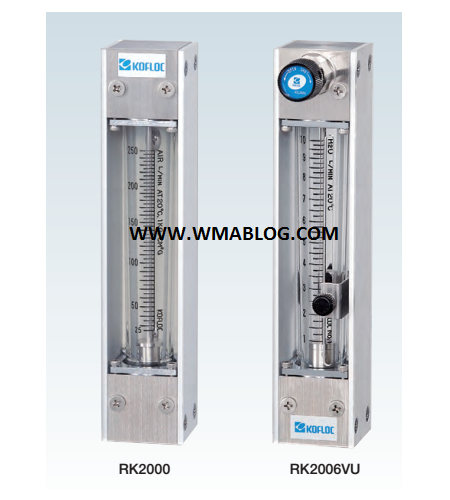

Large Capacity Flowmeters
MODELS RK2000/RK2005/RK2006 SERIES
These are large capacity float type flowmeters. Flows within the ranges of 200 to 1,000 L/MIN (for gases) and 10 L/MIN to 30 L/MIN (for liquids) full scale can be measured and controlled.
Features
1.Capable of measuring/controlling large flows of gases in the ranges of 200 to 1,000 L/MIN full scale (Air calibration)
2.Capable of measuring/controlling large flows of liquids in the ranges of 10 to 30 L/MIN full scale (Water calibration)
3.Low prices
4.Can be mounted onto various types of measuring instruments and sampling systems, and in diverse plants.
Standard Spesifications and Length Designations
|
Fluids |
Gases and liquids (Calibration conditions for other fluids) |
|
|
Accuracy |
Within FS±5% |
|
|
Proof pressure |
0.7MPa |
|
|
Materials |
S |
BS |
|
Body block and some other components |
SUS304 |
Brass |
|
Tapered tube |
Pyrex®, glass |
|
|
Packing |
FKM, fluorocarbon resin |
NBR, POM |
|
Float |
SUS304 |
|
|
Protective cover |
Acrylic resin |
|
|
Temperature resistance |
MAX 60℃ (RK2000), 10-30℃ (RK2005, RK2006) |
|
|
Length designation code |
Air (L/MIN)(at atmospheric pressure) |
H2O L/MIN |
|
20 Connection Rc3/8 |
20-200 |
*1.0-10 |
|
25-250 |
— |
|
|
30-300 |
— |
|
|
25 Connection Rc3/4 |
40-400 |
1.5-15 |
|
50-500 |
*2.0-20 |
|
|
70-700 |
*3.0-30 |
|
|
100-1000 |
— |
*The RK2005 and RK2006 are compatible with flow ranges marked with asterisks (*) only.
