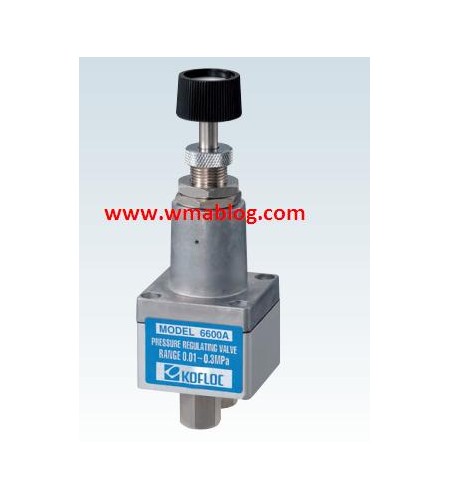

Pressure Regulating Valve (precision Reguler for Analytical Equipment) MODEL 6600 SERIES
Perhatian!
Spesifikasi Pressure Regulating Valve (precision Reguler for Analytical Equipment) MODEL 6600 SERIES
MODEL 6600 SERIES
This is a compact, lightweight precision pressure regulator with superior repeatability to provide reliable and speedy regulations. Since all the components are perfectly cleaned before assembly, this model is ideal for high-sensitivity instruments for analysis required for R&D activities.
Features
• High-precision control characteristic
High control performance with repeatability within a range of ±1% against fluctuations in pressure on the primary side and load resistance variations on the secondary side
• Perfect for panel mounting
Flow inlet and outlet are located on the back of the product to facilitate easy pipe connection. Additionally, it is compact in size and light in weight, ideal for panel instrumentation systems.
• Bleed-free
All units are subjected to a rigorous leak test before shipping though the product is bleed-free.
Applications
• Gas chromatographs
• Scientific instruments
• Gas mixing systems in various fields
Standard Specifications
|
Model |
6600A |
6600B |
6600AL |
6600BL |
||
|
Maximum primary pressure |
0.8MPa |
|||||
|
Secondary control pressure |
0.01–0.3MPa |
0.03–0.6MPa |
0.01–0.3MPa |
0.03–0.6MPa |
||
|
Minimum operating differential pressure |
0.05MPa |
|||||
|
Proof pressure |
0.8MPa |
|||||
|
Repeatability |
Within ±1% of the pressure rating |
|||||
|
Temperature characteristics |
Within ±1% of the pressure rating per 10℃ |
|||||
|
Heat resistance |
5℃-60℃ |
|||||
|
Flow rating |
See the graph. |
|||||
|
Connection end |
Rc 1/4 (standard), Rc 1/8 |
|||||
|
Materials of parts in |
（A） Al, brass, NBR, POM, SUS316 |
|||||
Notes
-IN/OUT joints only are optionally available. Lock plug is used for the gauge port.
-Press fitting of the OUT side filter is actually custom-made.Contact us for consultation.
-Pressure gauge port and OUT port are identical. Either will do for pressure gauge port or OUT port.
