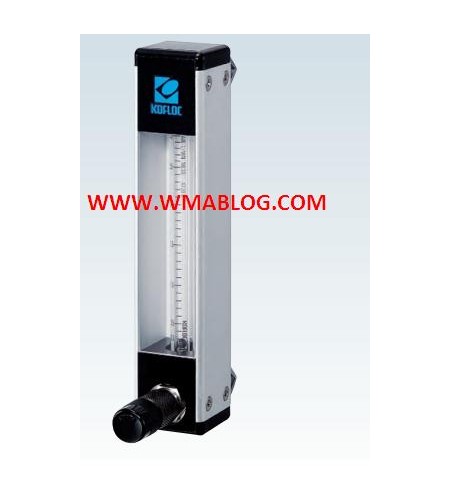

Flowmeter with Precision Needle Valve ( for Accurate Flow Control) MODEL RK1250 SERIES
Perhatian!
Spesifikasi Flowmeter with Precision Needle Valve ( for Accurate Flow Control) MODEL RK1250 SERIES
MODEL RK1250 SERIES
Model RK1250 Series Flowmeter is a completely renewed model of existing KOFLOC RK1200,designed as a flowmeter that can be integrated into the customer's equipment.A happy combination of a grade high precision float type flowmeter with a needle valve capable of very accurate flow control provides a flowmeter ideal for measurement and control of trace flows.
Features
-Capable of controlling ultra-minute flows
Can respond to a wide range of flows from ultra-minute flows of 0.5-3 ml/min to flows of 3-30 l/min.
-The incorporated precision needle valve allows a delicate control of flows.
The effective revolving speed of the needle valve can be maximized by specifying a maximum flow and normal supply pressure.
-Wide variations
Four total lengths of the flowmeter are available:126,156,206,and 256 mm,for your selection according to your needs.
-Two types of valve arrangement
The needle valve can be laid out either at the top or at the bottom of the meter.Choose the type that best suits your needs.
-Measurement and control of water flows also possible
Measurement and control of water flows not exceeding 1l/min are also possible.
Applications
･For integration into your equipment panel
･For gas devices to be used on the semiconductor manufac-turing site
･For biotechnology industries
･For vacuum line control
Standard Specifications
|
|
Gases |
Liquids |
|
Fluids |
Air, N2, O2, H2, He, Ar, and CO2 (Calibration by actual gas) |
Standard fluid: Water |
|
Flow range |
0.5-5 ML/MIN to 3-30 L/MIN (See the Capacity Table below.) |
0.5-5 ML/MIN to 0.1-1 L/MIN (See the Capacity Table below.) |
|
Accuracy |
FS±2% (Measurement point) |
FS±2% (Measurement point) |
|
Proof pressure |
1.0 MPa for 100 ML/MIN or less |
1.0 MPa for 5 ML/MIN or less |
|
Available scale |
10:1 * Optional: 20:1 |
|
|
Materials |
SS |
BS |
|
Body block |
SUS316 |
Brass |
|
Tapered tube |
Pyrex®, glass |
|
|
Packing |
FKM |
NBR |
|
Float |
Pyrex, SUS316, glass |
|
|
Protective cover |
Acrylic resin |
|
|
Temperature |
MAX60℃ |
|
|
Connection end |
Rc1/4 (Standard); Rc1/8 (Optional) |
|
