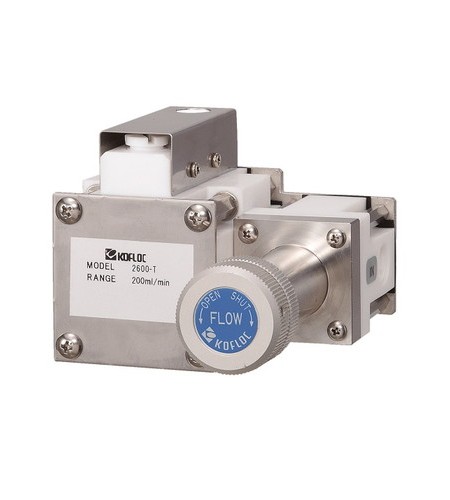

Teflon Constant Flow Valve for Liquids/Chemicals MODEL 2600 SERIES

Update Terakhir
08-11-2017
Minimum Pembelian
1 Unit
Dilihat Sebanyak
121 kali
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi Teflon Constant Flow Valve for Liquids/Chemicals MODEL 2600 SERIES

 All-Teflon Constant Flow Valve for Liquids/Chemicals

MODEL 2600 SERIES

This constant flow valve has been developed for control of water and chemical flows. It maintains liquid flows constant against fluctuations of both primary and secondary pressures.

Features

1.Outstanding control of liquid flows at a constant rate
A valve composed of high-precision components ensures smooth control of flows.
2.Not affected by pressure variations
Flows are maintained at a constant rate against fluctuations of both primary and secondary pressures.
3.Non-metal material (PTFE) used for the wetted part
This resin (PTFE) is perfect for a part apt to be easily damaged by metal ions.
4.Small flows from 100-500 ml/min controllable
Minute flows are also controllable optionally.
5.Model 2600, all-Teflon type, is compatible with practically all chemicals thanks to the use of a Perfluoro O-ring.
(There are some operating conditions to be met according to the type of chemical. Be sure to contact us for information before placing your purchase order.)
6.Bubblers (air bubble purge taps) provided in the upper/lower diaphragm chambers
Air bubble purge at the initial flow setting stage of operation provides the most accurate possible control.

Applications

1.Ultrapure water analyzers
2.Environmental instrumentation systems; food/chemical industry equipment
3.Ultrapure water and chemical mixing systems

Standard Applications



Model 2600-T

Fluid

Liquids (Mainly H2O)

Flow rating
Control accuracy

100-500 ML/MIN 0.1-1 L/MIN

Within ±3% of the set value

Operating differential pressure

0.1 MPa or more

Operating pressure

0.1-0.5 MPa

Proof pressure

0.7MPa

Materials of parts exposed to fluids

fluorocarbon resin, Perfluoro

Max. operating temperature

15-35

Connection end

Rc 1/4

Note: The control accuracy is guaranteed only when the fluid temperature is constant,

because the viscosity varies with temperature.

Contact us for the detailed specifications.
