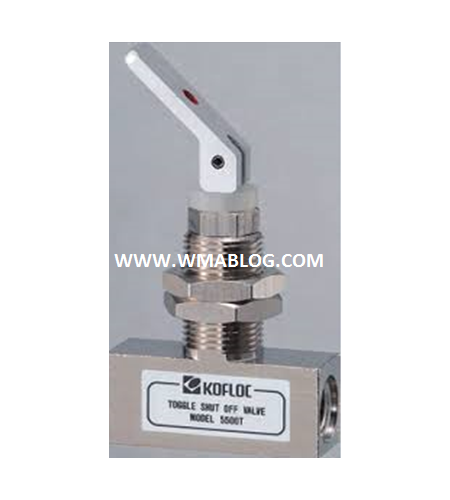

Koflok Togglo Valve (Stop Valve with Small Retention Section) MODEL 5500 SERIES
Perhatian!
Spesifikasi Koflok Togglo Valve (Stop Valve with Small Retention Section) MODEL 5500 SERIES
MODEL 5500 SERIES
The KOFLOC toggle valve is a shutoff valve developed for quick, reliable opening/closing operation. The special structure with a valve section and special O-ring excels in durability, while ultra-cleanliness assures high-sensitivity analysis.
Features
1.Lifting by 90 degrees and tilting for quick opening/closing.
2.Precision machining ensures high air-tightness.
3.The dead space has been minimized.
4.The valve can be used for both gas and liquid.
5.This panel-mount type for easy mounting on a panel is compact and ideal for instrumentation.
Applications
1.Scientific instruments, analyzers, and environmental measuring instruments
2.Compact portable measuring instruments
3.Instrumentation panel boards and various testing devices.
Standard Spesifications
Open/close operation |
90 derajat toggle |
Orifice diameter |
1.5 |
CV Value |
0.06 |
Maximum operating pressure |
0.8 MPa |
Materials of parts in contact with fluids |
(B) Brass, FKM, NBR, Ai (S) SUS304, FKM |
Connection end |
M8x1 (option: Rc 1/8, Rc 1/4) |
Mounting |
Panel mount |
