DURAN® flat flange reaction vessel flange with groove

Update Terakhir
06-09-2016
Dilihat Sebanyak
131 kali
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

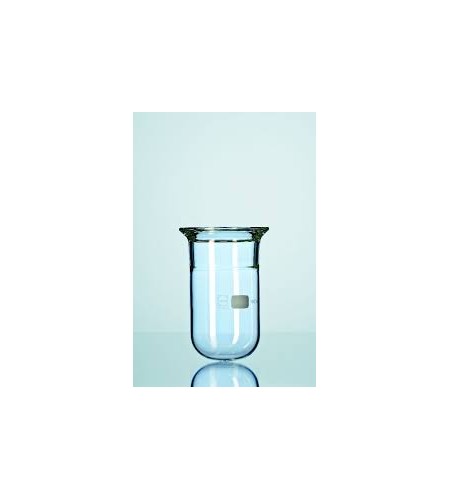

Spesifikasi DURAN® flat flange reaction vessel flange with groove

 Pressure and vacuum resistant due to the wall thickness and geometry. A sealing ring (O-ring) can be inserted in the groove, with which the vessel is securely sealed (suitable sealing rings available).

Ordering information:

Cat. No. Capacity
ml
DN Full
capacity
ml
Flange
AD
mm
d
mm
h
mm
Max. operating
pressure
at 250 °C
Pack
Quantity
24 390 24 100 60 195 100 70 85 2,5 bar 1
24 390 36 250 60 315 100 70 125 2,5 bar 1
24 390 44 * 500 100 740 138 106 120 1,5 bar 1
24 390 54 * 1 000 100 1 395 138 106 205 1,5 bar 1
24 390 63 2 000 100 2 620 138 140 270 1,5 bar 1
24 390 71 4 000 150 5 765 184 200 290 1,0 bar 1
24 390 76 6 000 150 7 320 184 215 320 1,0 bar 1
24 390 86 10 000 150 11 935 184 240 410 0,5 bar 1
