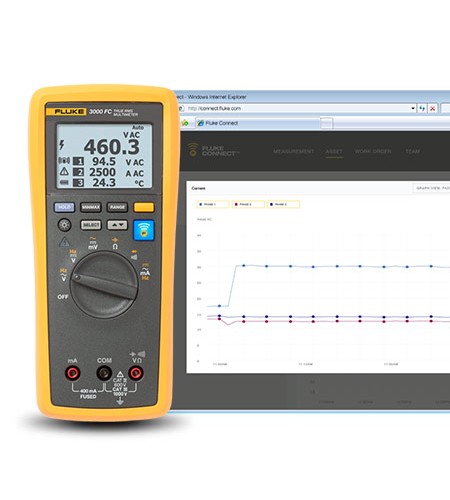

Fluke 3000 FC Series Wireless Multimeter
Perhatian!
Spesifikasi Fluke 3000 FC Series Wireless Multimeter
- AC and DC voltage measurements to 1000V
- AC and DC current with 0.01 mA resolution
- Continuity, resistance, diode test, capacitance and frequency measurements
- MIN/MAX Recording
- CAT III 1000 V, Cat IV 600 V; IP54
Plus, the Fluke Connect wireless enabled modules measure AC, DC and AC+DC voltage, AC and DC current, plus temperature, all of which display on the Fluke 3000 FC Series Wireless Multimeter. Choose a standard clamp or flexible clamp to measure AC current. Mix and match modules to suit your unique measurement needs. Read the primary measurement on the main display and up to three modules at any one time. Modules are available separately or as part of Fluke Connect kits.
| AC Voltage | |||
| Range¹ / resolution | 600.0 mV / 0.1 mV 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V 1000 V / 1 V |
||
| Accuracy2 3 4 | 45 Hz to 500 Hz | 1.0% + 3 | |
| 500 Hz to 1 kHz | 2.0% + 3 | ||
| 1. AC voltage ranges are specified from 1% of range to 100% of range. 2. Crest factor of ≤ 3 at full scale up to 500 V, decreasing linearly to crest factor < 1.5 at 1000 V. 3. For non-sinusoidial waveforms, add ± (2% of reading + 2% full scale) typical, for crest factor up to 3. 4. Do not exceed 107 V-Hz. |
|||
| DC Voltage, Continuity, Resistance, Diode Test and Capacitance | |||
| mV | Range / resolution | 600.0 mV / 0.1 mV | |
| Accuracy | 0.09% + 2 | ||
| V | Range / resolution | 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V 1000 V / 1 V |
|
| Accuracy | 0.09% + 2 0.15% + 2 |
||
| ))) | Range / resolution | 600 Ω / 1 Ω | |
| Accuracy | Meter beeps at < 25 Ω, beeper detects opens or shorts of 250 μs or longer. | ||
| Ω | Range / resolution | 600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 60.00 kΩ / 0.1 kΩ 600.0 kΩ / 0.001 MΩ 50.00 MΩ / 0.01 MΩ |
|
| Accuracy | 0.5% + 2 0.5% + 1 1.5% + 3 |
||
| Diode test | Range / resolution | 2.000 V / 0.001 V | |
| Accuracy | 1% + 2 | ||
| µF | Range / resolution | 1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF1 / 1 μF |
|
| Accuracy | 1.2% + 2 10% typical |
||
| 1. In the 9999 μF range for measurements to 1000 μF, the measurement accuracy is 1.2% + 2. | |||
| AC and DC Current | |||
| mA AC (45 Hz to 1 kHz) |
Range1 / resolution | 60.00 mA / 0.01 mA 400.0 mA3 / 0.1 mA |
|
| Accuracy | 1.5% + 3 | ||
| mA DC2 | Range1 / resolution | 60.00 mA / 0.01 mA 400.0 mA3 / 0.1 mA |
|
| Accuracy | 0.5% + 3 | ||
| 1. All AC current ranges are specified from 5% of range to 100% of range. 2. Input burden voltage (typical): 400 mA input 2 mV/mA. 3. 400.0 mA accuracy specified up to 600 mA overload. |
|||
| Frequency | |||
| Range / resolution | 99.99 Hz / 0.01 Hz 999.9 Hz / 0.1 Hz 9.999 kHz / 0.001 kHz 99.99 kHz / 0.01 kHz |
||
| Accuracy1 | 0.1% + 1 | ||
| 1. Frequency is specified up to 99.99 kHz in volts and up to 10 kHz in amps. | |||
| Input Characteristics | |||
 |
Overload protection | 1100 V RMS | |
| Input impedance (nominal) | > 10 MΩ < 100 pF | ||
| Common mode rejection ratio (1 kΩ unbalance) |
> 120 dB at DC, 50 Hz or 60 Hz | ||
| Normal mode rejection | > 60 dB at 50 Hz or 60 Hz | ||
 |
Overload protection | 1100 V RMS | |
| Input impedance (nominal) | > 10 MΩ < 100 pF | ||
| Common mode rejection ratio (1 kΩ unbalance) |
> 60 dB, DC to 60 Hz | ||
| Normal mode rejection | > 60 dB at 50 Hz or 60 Hz | ||
 |
Overload protection | 1100 V RMS | |
| Input impedance (nominal) | > 10 MΩ < 100 pF | ||
| Common mode rejection ratio (1 kΩ unbalance) |
> 120 dB at DC, 50 Hz or 60 Hz | ||
| Normal mode rejection | > 60 dB at 50 Hz or 60 Hz | ||
| Open Circuit Test Voltage | |||
 |
Overload protection | 1100 V RMS | |
| Input impedance (nominal) | < 2.7 V DC | ||
| Full scale voltage to 6 MΩ Full scale voltage 50 MΩ |
< 0.7 V DC < 0.9 V DC |
||
| Typical short circuit current | < 350 mA | ||
 |
Overload protection | 1100 V RMS | |
| Input impedance (nominal) | < 2.7 V DC | ||
| Full scale voltage to 6 MΩ Full scale voltage 50 MΩ |
2.000 V DC | ||
| Typical short circuit current | < 1.1 mA | ||
| mA Function | |||
| Overload protection | Fused, 44/100 A, 1000 V FAST Fuse | ||
| Overload | 600 mA overload for 2 minutes maximum, 10 minutes rest minimum | ||
| MIN/MAX Recording Accuracy | |||
| DC functions | ± 12 counts for changes > 350 mS in duration. | ||
| AC functions | ± 40 counts for changes > 900 mS in duration. | ||
| General Specifications | |||
| Maximum voltage between any terminal and earth ground | 1000 V DC or AC RMS | ||
| Ω fuse protection from A inputs | 0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only | ||
| Display (LCD) | Update rate | 4/sec | |
| Volts, amps, ohms | 6000 counts | ||
| Frequency | 10,000 counts | ||
| Capacitance | 1,000 counts | ||
| Battery type | Three AA Alkaline batteries, NEDA 15A IEC LR6 | ||
| Battery life | 250 hours minimum | ||
| RF communications | 2.4 GHZ ISM Band | ||
| RF communication range | Open air, unobstructed | Up to 20m | |
| Obstructed, sheetrock wall | Up to 6.5m | ||
| Obstructed, concrete wall, or steel electrical enclosure | Up to 3.5m | ||
| Temperature | Operating | -10°C to 50°C | |
| Storage | -40°C to 60°C | ||
| Temperature coefficient | 0.1 X (specified accuracy) / °C (< 18°C or > 28°C) | ||
| Relative humidity | 0% to 90% (0°C to 35°C) 0% to 75% (35°C to 40°C) 0% to 45% (40°C to 50°C) |
||
| Altitude | Operating | 2,000 m | |
| Storage | 12,000 m | ||
| Electromagnetic compatibility EMI, RFI, EMC, RF |
EN 61326–1:2006, EN 61326–2–2:2006 ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489 V1.8.1:2008 FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249 FCCID : FCC: T68–FDMMBLE IC: 6627A–FDMMBLE |
||
| Safety compliance | ANSI / ISA 61010–1 / (82.02.01): 3rd edition CAN / CSA-C22.2 No 61010-1-12: 3rd edition UL 61010–1: 3rd edition IEC / EN 61010–1:2010 |
||
| Certifications | CSA, FCC, CE | ||
| Ingress Protection (IP) rating | IP54 | ||
| Pollution Degree | 2 | ||
| Size (H x W x L) | 4.75 x 9.3 x 20.7 cm (1.87 x 3.68 x 8.14 in) | ||
| Weight | 340 g (12 oz) | ||
| Warranty | Three years | ||
