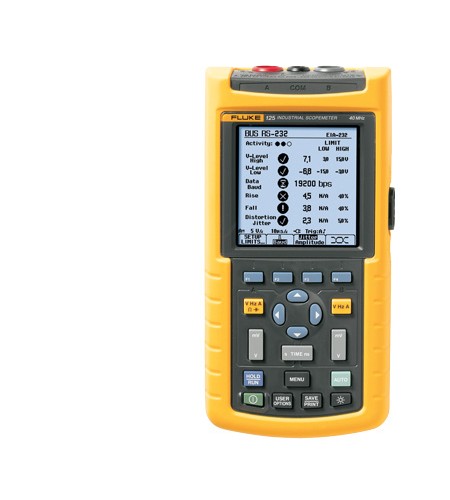

Fluke 125/S ScopeMeter® Oscilloscopes with SCC120 kit

Update Terakhir
09-09-2016
Dilihat Sebanyak
43 kali
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi Fluke 125/S ScopeMeter® Oscilloscopes with SCC120 kit


Specifications
Oscilloscope bandwidth 40 MHz
Dual input true RMS meter VDC, VAC, VAC + VDC, Ohms,Continuity, Diode-test Current, °C, °F, Capacitance, dBV, dBM, Crest Factor, Touch Hold and Zeroset
TrendPlot recording Automatic vertical scaling and time compression
Display the actual, MIN, MAX and AVG reading
Cursors Fluke 125/124: ΔT, 1/ΔT, V, ΔV, rise- and fall time
Sample rate 2.5 GS/s repetitive sampling
25 MS/s single shot sampling
Inputs and digitizers 2
Timebase range 20 ns - 1 min/div
Input sensitivity 5 mV - 500 V/div
Trigger types Connect-and-View™, Free Run, Single Shot, Edge, Video, External
Glitch capture 40 ns
Scope measurements Automatic measurements: 26 (all instruments) On top, Fluke 125 has additional measurement functions for Power (W), VA, VAR and Power Factor (PF) for single phase and balanced-three-phase (delta) power systems
Harmonics mode Capability to analyze the harmonics contents of power signals
(see Harmonics Mode Section below for details)
Maximum record length 512 min/max pts per input
Memory 20 screens and setups
Additional Power Measurement Capabilities
Measurement Types Watt, VA VAR, Power Factor (PF)
Power Configuration Single phase or balanced three-phase (delta-configuration) mains supply
Voltage Measurement Channel A; using STL120, voltage probe or direct input
Current Measurement Channel B, using i400s (included) or other compatible current clamp
Current clamp or shunt sensitivity 0.1 / 1 / 10 / 100 / 1000 mV/A, 10 mV/mA and 400 mV/A
Harmonics mode
  Converts waveform information into a harmonics display (using FFT processing) which shows the relative amplitudes of the 1st up to the 33rd harmonic
Analyzed waveform Voltage waveform(Ch.A), Current wavefrom (Ch.B) or Power (Ch.A x Ch.B), automatically generated
Harmonics frequency range DC up to 33rd harmonic (for fundamental up to 60 Hz);
DC up to 24th harmonic (for fundamental up to 400 Hz)
Display Bargraph showing 1st up to 33rd harmonic and DC; amplitude displayed in % relative to fundamental
Measurements Relative amplitude of individual harmonics;
THD in %r or %f
Bus Health Test Functions
Bus health test Verifies the electrical parameters of industrial bus systems using automatic measurement and analysis functions. Next to that, an Eyepattern mode is provided for visual inspection of signal quality.
Parameter classification Default values:
  • well within limits = 'good'
  • within certain percentage of the limit values = 'weak'
  • beyond limit values = 'bad'

Limits values, as a default, are based on industry standard for the selected bus type or may be set by the user.

Bus systems supported AS-i (EN50295, 166 kb/s);
CAN-bus (ISO-11898, up to 1 Mb/s);
Interbus S (EIA-485, 500 kb/s);
ControlNet (61158 type 2, 5Mb/s);
Modbus (EIA-232 up to 115 kb/s and EIA-485 up to 10 Mb/s);
Foundation Fieldbus H1 (61158 type 1, 31.25 kb/s);
Profibus DP (EIA-485 up to 10 Mb/s);
Profibus PA (61158 type 1, 31.25 kb/s);
Ethernet 10Base2 (coaxial);
Ethernet 10BaseT (UTP, 10 Mb/s);
RS-232 (EIA-232, up to 115 kb/s);
RS-485 (EIA-485, up to 10 Mb/s);
User defined single wire or balanced system
Modes Waveform Parameter Analysis With Automatic Read-out And Parameter:
  • validation (good / weak / bad); test limits are based on industry standards or may be set by the user
  • Eyepattern display mode
Measured parameters
(where applicable)
Baud rate,
Risetime,
Fall time,
High level,
Low level,
Bias voltage level,
Signal amplitude,
Distortion,
Jitter
Eyepattern display mode Gives waveform display of bus signals with display persistence
Timebase and attenuator settings may be altered by the user
Environmental Specifications
Operating temperature 0°C to 50°C
Storage temperature -20°C to +60°C
Operating Altitude 3,000 m
Safety Specifications
Electrical safety 600 V CAT III (EN61010-1)
Mechanical And General Specifications
Size 232 x 115 x 50 mm
Weight 1.2 kg
Warranty 3-years on main instrument
1-year on accessories
Battery life 7 hrs using NiMH
RS232/USB unterface Optically isolated via optional PM9080 or OC4USB for interfacing to Printer or PC
