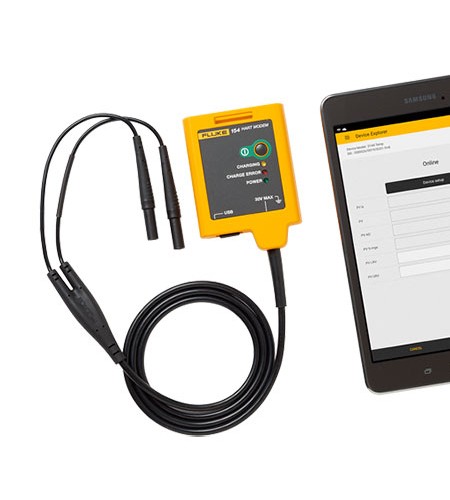

Fluke 154 HART Calibration Assistant
Perhatian!
Spesifikasi Fluke 154 HART Calibration Assistant
- Full HART Device Description (DD) support of all HART devices
- Configure HART devices
- Perform HART trim on HART devices when used with a Fluke 750 or 720 series calibrator
- Monitor device PV, SV, TV, QV and other measured HART variables
- Quarterly HART DD updates for free
- Convenient wireless connectivity to HART modem
- Easy to use, fast connect and view HART data
- Store HART device configurations
- Long range wireless communication up to 250 feet
| Tablet | |
| Operating system | Android 5.0 or newer |
| Processor | ARM or Atom |
| Memory RAM | 1 GB |
| Memory ROM | 2 GB |
| Screen | 960x540 qHD |
| Communication port | Bluetooth |
| HART Modem | |||
| Enclosure | |||
| Material | High strength ABS Plastic | ||
| Dimensions | 10.16 x 2.5 x 6.9 cm (4 x 1 x 2.75 in) | ||
| Total unit weight | 0.16 kg (0.36 lbs) | ||
| Cables | |||
| HART cable length | 4 ft (1.2 m) | ||
| HART cable connectors | Mini-Grabber | ||
| HART Interface | |||
| Interface | Capacitive coupling | ||
| Output | 600 mVpp | ||
| Leakage | < 10 uA | ||
| Connections | Across loop resistor or HART field device | ||
| Specifications | HART 4, HART 5, HART 6, HART 7 | ||
| HART physical layer spec | HCF_SPEC-54 | ||
| Bluetooth | |||
| Specification | Bluetooth v2.0 | ||
| Frequency | 2.4 GHz | ||
| Class 1 master distance | 275 ft (83.8 m) | ||
| Battery | |||
| Type | Rechargeable Li-Ion | ||
| Life | 19 hours continuous use | ||
| Environmental | |||
| Operating temperature | 0 °C to 50 °C (32 °F to 122 °F) | ||
| Storage temperature | -10 °C to 45 °C (-14 °F to 113 °F) | ||
| Humidity | 0% to 90% (non-condensing) | ||
