Spesifikasi Jual Globe Valve BFS SG series

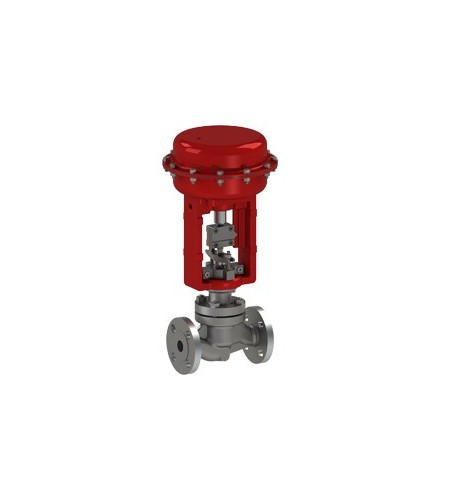

Single Port Unbalance Globe Valve
The S-Series range of Valves was developed to provide a cost effective, reliable and easily maintained control valve capable of working in rigorous environments.
The quick change trim option provides for easily accessible seat and trim components to minimise fitting and parts replacement times.
Stem guided contoured trim in both balanced and non balanced configuration gives excellent rigidity and resistance to vibration and service wear.
The valve is designed to accommodate other products within the BFS multi-hole multi stage and disk stack X[iks]-Trim
Globe
Single Port Unbalanced Trim
Bonnet
Plain, Extension, Bellows Seal.
Size
1/2"(15A) through 12" (300A)
Pressure Rating (ANSI)
150,300,600,900,1500,2500
Process Connection
FF,RF,RTJ,SW,BW,others
Trim Form
Single Port Top Guided Contoured, Multi-Hole Noise Control and Anti-Cavitation Trim, X[iks]-trim
Application
General Service, Cryogenic Service
The S-Series range of Valves was developed to provide a cost effective, reliable and easily maintained control valve capable of working in rigorous environments.
The quick change trim option provides for easily accessible seat and trim components to minimise fitting and parts replacement times.
Stem guided contoured trim in both balanced and non balanced configuration gives excellent rigidity and resistance to vibration and service wear.
The valve is designed to accommodate other products within the BFS multi-hole multi stage and disk stack X[iks]-Trim
SGS1G1 / Single Globe
| Construction | Single Port Globe Valve |
| Trim Form | Unbalanced Single P-Port Type |
| Size | 1" to 12" |
| Rating | Class 150# to 2500# |
| Characteristic | Linear, EQ%, Mod-% |
| Seat Leakage | FCI 70-2 Class IV.V.V |
Globe
Single Port Unbalanced Trim
Bonnet
Plain, Extension, Bellows Seal.
Size
1/2"(15A) through 12" (300A)
Pressure Rating (ANSI)
150,300,600,900,1500,2500
Process Connection
FF,RF,RTJ,SW,BW,others
Trim Form
Single Port Top Guided Contoured, Multi-Hole Noise Control and Anti-Cavitation Trim, X[iks]-trim
Application
General Service, Cryogenic Service
