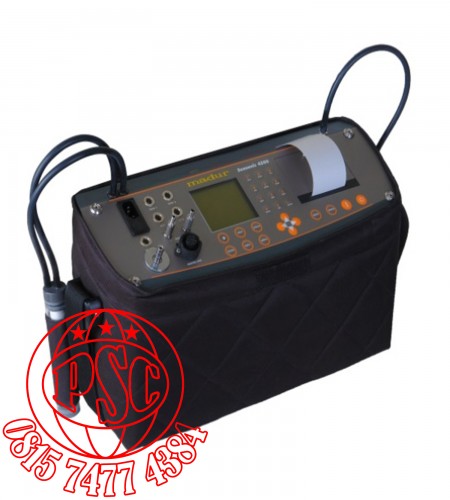

Sensonic 4500 Gas Analyzers

Sensonic 4500 Gas Analyzers

Specifications

Dimensions ( W x H x D )

470 x 310 x 160 mm

Weight ( without accessories )

12.0÷12.8 kg

Casing material

Aluminium padded with foam and fabric ( polyester )

Operating conditions

T : 10 °C ÷ 50 °C, RH: 5 % ÷ 90 % ( non-condensing )

Storing temperature

0 °C ÷ +55 °C

Power supply : Input | maximal power consumption

115 VAC or 230 VAC | 90 W (without heated hose)

Battery: type | work time | charging time

Lead-acid, rechargeable 12V / 2.2Ah | 7h | 14h

Data memory: size | number of results

32kB | 30 reports + 10 banks (1024 sets of data)

Display

Graphical LCD 128 x 128, with variable contrast and backlighting

Printer

High-speed dot matrix, graphic printer for 57mm normal paper

Analogue outputs (optional)

Two current (0/4÷20mA) or voltage (0÷10V) outputs

Gas pump | gas flow

Diaphragm, max 2l/min (with automatic flow control) | 90l/h (1.5l/min)

Purging pump for CO sensor

Diaphragm, max 1.5l/min

Communication interface with PC computer

RS-232C

Gas filtering

1. Heated filter included in the heated hose

2. Built-in final filter (behind the gas dryer) with replaceable insert

 Built-in gas dryer, heated hose driver, heated hose

Drying method

Water condensation by rapid cooling down

Cooler type

based on Peltier element

Cooler temperature

+5°C electronically stabilised

Cooler temperature hysteresis

~ 1°C

Maximum gas flow for efficient drying

100l/h

Condensate pump

Peristaltic, 38ml/min.

Heated hose temperature

+120°C electronically stabilised

Heated hose temperature hysteresis

~ 5°C

Heated hose length

3m (optionally 5m or 10m)

Heated hose power consumption

360W (max)

Heated hose thermocouple wires

K-type (S-type optionally)

Measurements of gas components

Method

Range | Resolution

Accuracy

Time (T₉₀)

O₂ – Oxygen

Electrochemical sensor

20.95% | 0.01%

± 0.1% abs. or 5% rel

45 sec

Electrochemical, partial pressure

20.95% | 0.01%

± 0.1% abs. or 5% rel

45 sec

Electrochemical, partial pressure

25.00% | 0.01%

± 0.1% abs. or 5% rel

45 sec

Electrochemical, partial pressure

100.00% | 0.1%

± 0.1% abs. or 5% rel

45 sec

CO – Carbon monoxide

Electrochemical sensor

20 000ppm | 1ppm

± 5ppm abs. or 5% rel

45 sec

Electrochemical, with H₂ compensation

2 000ppm | 1ppm

± 5ppm abs. or 5% rel

45 sec

Electrochemical sensor

10% | 10ppm

± 50ppm abs. or 5% rel

45 sec

NDIR (as a second sensor only)

10% | 0.01%

± 0.05% abs. or 5% rel

45 sec

NDIR (as a second sensor only)

100% | 0.1%

± 0.5% abs. or 5% rel

45 sec

CO₂ – Carbon dioxide

NDIR

25% | 0.01%

± 0.05% abs. or 5% rel

45 sec

NDIR

50% | 0.01%

± 0.05% abs. or 5% rel

45 sec

NDIR

100% | 0.1%

± 0.5% abs. or 5% rel

45 sec

C_xH_y – Total Hydrocarbons

NDIR

5% | 0.01%

± 0.05% abs. or 5% rel

45 sec

NDIR

25%| 0.01%

± 0.05% abs. or 5% rel

45 sec

NDIR

100% | 0.1%

± 0.5% abs. or 5% rel

45 sec

NO – Nitric oxide

Electrochemical sensor

5 000ppm | 1ppm

± 5ppm abs. or 5% rel

45 sec

NO₂ – Nitrogen dioxide

Electrochemical sensor

1 000ppm | 1ppm

± 5ppm abs. or 5% rel

45 sec

SO₂ – Sulphur dioxide

Electrochemical sensor

5 000ppm | 1ppm

± 5ppm abs. or 5% rel

45 sec

H₂S – Hydrogen sulfide

Electrochemical sensor

1 000ppm | 1ppm

± 5ppm abs. or 5% rel

45 sec

H₂ – Hydrogen

Electrochemical sensor

2 000ppm | 1ppm

± 10ppm abs. or 5% rel

45 sec

Electrochemical sensor

20 000ppm | 1ppm

± 10ppm abs. or 5% rel

45 sec

NH₃ – Ammonia

Electrochemical sensor

1 000ppm | 1ppm

± 10ppm abs. or 5% rel

45 sec

CL₂ - Chlorine

Electrochemical sensor

250ppm | 1ppm

± 5ppm abs. or 5% rel

45 sec

HCl - Hydrogen chloride

Electrochemical sensor

50ppm | 1ppm

± 5ppm abs. or 5% rel

120 sec
