Spesifikasi Jual Desuperheater BFS MNSD series

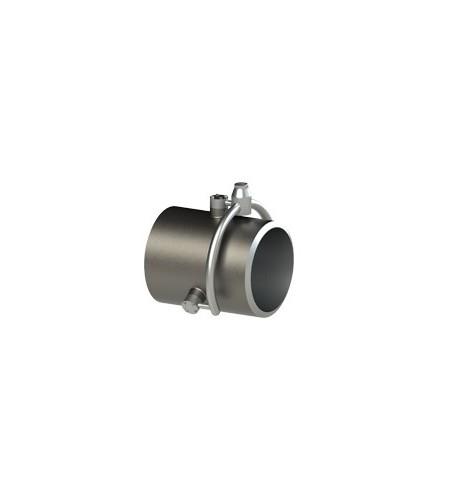

Multiple-variable Nozzle Steam Desuperheater / MNSD series
The bFS steam desuperheater MNSD used in desuperheater applications where large spray water flows are required for cooling of the steam.
The MNSD is part of the steam line with a number of water atomizing nozzles, Variable Nozzles. The nozzles are connected to a common spray water pipe connection.
The spray water flow is controlled by a separate spray water control valve. A liner can be installed in the MNSD to improve the system turn down or protect the steam line.
The MNSD can easily be adapted for any special requirement, such as incorporation of separate emergency cooling arrangement or split range operation
Desuperheater
Multi-Variable-Nozzle Desuperheater
Size
Up to 8"
Pressure Rating (ANSI)
150,300,600,900,1500,2500, 4500
Process Connection
RF, RTJ, SW, BW, Others..
Type of Nozzle
Variable Nozzle, Rangeability / 50:1
Application
Big load variation, High reliable Temp. control (Turbine extraction, Important process line)
The bFS steam desuperheater MNSD used in desuperheater applications where large spray water flows are required for cooling of the steam.
The MNSD is part of the steam line with a number of water atomizing nozzles, Variable Nozzles. The nozzles are connected to a common spray water pipe connection.
The spray water flow is controlled by a separate spray water control valve. A liner can be installed in the MNSD to improve the system turn down or protect the steam line.
The MNSD can easily be adapted for any special requirement, such as incorporation of separate emergency cooling arrangement or split range operation
Desuperheater
Multi-Variable-Nozzle Desuperheater
Size
Up to 8"
Pressure Rating (ANSI)
150,300,600,900,1500,2500, 4500
Process Connection
RF, RTJ, SW, BW, Others..
Type of Nozzle
Variable Nozzle, Rangeability / 50:1
Application
Big load variation, High reliable Temp. control (Turbine extraction, Important process line)
