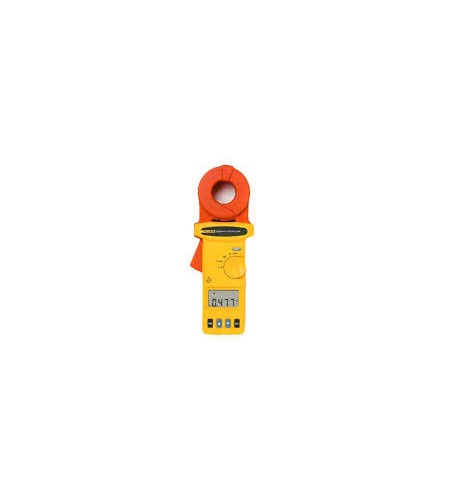

Fluke 1630 Earth Ground Clamp Meter
Perhatian!
Spesifikasi Fluke 1630 Earth Ground Clamp Meter
- A wide ground loop resistance range, from 0.025 Ω to1500 Ω, to satisfy all requirements
- Large jaw opening of 35 mm (1.38 in) for tests on ground conductors and/or equipotential bus bars
- Measurement of ground leakage current, from 0.2 mA to 1000 mA, without needing to disconnect - ideal for system troubleshooting
- Wide AC current measurement range from 0.2 A to 30 A allows one instrument for multiple applications
- User-defined HI / LO Alarm limits, for rapid measurement evaluation
- Handy ‘display hold’ button for capturing readings in hard-to-reach places
- Time saving memory function automatically records and stores measured values
- Automatic self calibration ensures correct measurement every time
- Overload protection: 200 A
- Carrying case and resistance test loop included
- ≥ 8 hours battery life (continuous operation)
| General Specifications | |
| Operating error | Refers to the operating temperature range and is guaranteed for 2 years |
| Storage temp. range | -20°C to 60°C (-4°F to 140°F) |
| Reference temp. range | 23°C ±5°C (73°F ±9°F) |
| Storage humidity | < 75% Rh |
| Operating humidity | < 85% Rh |
| Display | 999 digital LC display with special symbols |
| Protection | IP30 according to IEC 529/EN 60529 |
| Safety | 300 V, CAT III pollution degree 2 IEC 61010-1 and IEC 61010-2-032 |
| Weight | 750 g (1.165 lbs) |
| Conductor size | 35 mm (1.38 in) approximately |
| Dimension (L x W x D) | 276 x 100 x 47 mm (10.8 x 3.9 x 1.9 in) |
| Emission | IEC 1000 4-2, IEC 61326-I class B |
| Immunity | IEC 61000-4-2, 8 kV (air) criteria A |
| IEC 61000-4-3, 3 V/m performance criteria A | |
| Range selection | Auto |
| Overload indicator | "OL" on display |
| Measuring time | 0.5 sec |
| Measuring frequency | 3.333 kHz |
| Battery type | 9 V alkaline (type IEC 6 LR 61) |
| Battery life | ≥ 8 hours (continuous operation) |
| Power consumption | 40 mA |
| Low battery indication | Display symbol |
| Ground Loop Resistance (Autorange) | |
| Range | Accuracy (±% of reading Ω) |
| 0.025 - 0.250 Ω | ±1.5% rdg ±0.02 Ω |
| 0.250 - 9.999 Ω | ±1.5% rdg ±0.05 Ω |
| 10.00 - 99.99 Ω | ±2.0% rdg ±0.3 Ω |
| 100.0 - 199.9 Ω | ±3.0% rdg ±1.0 Ω |
| 200.0 - 400.0 Ω | ±5.0% rdg ±5 Ω |
| 400.0 - 600.0 Ω | ±10% rdg ±10 Ω |
| 600.0 - 1500 Ω | ±20% |
