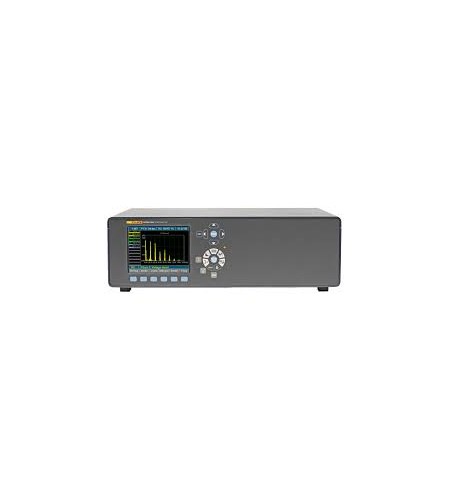

Fluke Norma 5000 Power Analyzer
Gambar Produk
Fluke Norma 5000 Power Analyzer
Update Terakhir
13-09-2016
Dilihat Sebanyak
104 kali
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Fluke Norma 5000 Power Analyzer
Providing the highest bandwidth on the market, the Fluke Norma 5000 Six-Phase Power Analyzer is the ideal test and analysis tool for the development of frequency converters and lighting equipment. Ideal for field testing, it offers easy and straight-forward operation with unmatched price performance. Features include: 3 to 6 power phases, optional internal printer, 5.7 in / 144 mm color display, harmonic analysis, scope mode, vector diagram display, recorder function, Fluke NormaView PC software and expandable 4 MB RAM data memory.
- Compact design makes it easy to carry and saves working space.
- Simple user interface ensures easy, intuitive operation.
- A variety of standard configurations allows users to choose the exact functionality required for their unique application.
- Simultaneous parallel acquisition of all phases allows accurate viewing of dynamic events on all phases at exactly the same point in time.
- All inputs are galvanically isolated to avoid short circuits in all applications.
- Voltage, current and power harmonics measured up to the 40th harmonic for complete analysis.
- FFT analysis, vector diagram, and Digital Oscilloscope (DSO) mode included in the base unit for complete analysis capability.
- User-selectable average time – from 15ms up to 3600s – for dynamic measurements.
- 4 MB on-board memory (expandable to 128 MB) for storage of measured values.
- Fast and easy connection to a PC – RS232 and USB included as standard; optional IEEE488, Ethernet, or USB2.0.
- PI1 process interface to measure torque and speed with external sensors, plus four analog outputs for easy use on motor and drive applications.
- 341 kHz or 1 MHz sample rates for detailed signal analysis.
- Bandwidth from DC to 3 MHz / 10 MHz for reliable measurement precision.
- Fluke NormaView PC software for data download, analysis & report writing.
| General Specifications | ||
| Number of Phases | 1 to 3 | |
| Weight | Approx. 5 kg (11 lb) | |
| Size | 150 x 237 x 315 mm | |
| 5.9 x 9.3 x 12.4 in | ||
| On-board Printer | No | |
| Display | Color, 5.7 in / 144 mm - 320 x 240 pixel | |
| User-selectable background lighting and contrast. | ||
| Bandwidth | DC to 3 MHz or DC to 10 MHz depending on input module | |
| Basic Accuracy | 0.2%, 0.1% or 0.03% depending on input modules | |
| Sampling Rate | 0.33 MHz or 1 MHz depending on input modules | |
| Voltage Input Range | 0.3 V to 1000 V | |
| Current Input Range (direct, not via shunt) | 0.03 mA to 20 A depending on input module | |
| Memory for Configurations | 4 MB | |
| Memory for Settings | 0.5 MB | |
| Fast Fourier Transformation (FFT) | To the 40th harmonic | |
| RS232/USB Interface | Standard | |
| PI1 Process interface (8 analog/impulse inputs and 4 analog outputs) | Optional | |
| IEEE 488.2/GPIB interface (1 MBit/s Ethernet / 10 MBit/s or 100 MBit/s) | Optional | |
| Fluke NormaView PC software (for data download, analysis and report writing) | Standard | |
| Basic Functions | ||
| Fast Fourier Transformation (FFT) | Calculation of harmonics with graphical representation. Up to 3 bar graphs are displayed at the same time. | |
| Measured values: U, I, P per phase | ||
| Order: 1st to 40th harmonics, maximum half sample frequency | ||
| Digital Oscilloscope (DSO) | Simultaneous display of up to 3 measured values on sample level. Quick view of curve form and distortion. | |
| Integration function (energy) | Simultaneous display of up to 6 configurable numeric values. Start/Stop conditions and positive negative direction available. | |
| Vector Display | Vector display of HO1 up to 6 signals. For easy testing of the right connection of the instrument and quick overview of the phase angle of each signal. | |
| Recorder | Display of average values over time for trend determination. | |
| RAM data memory | Storing of sample and average values; setting of start and stop conditions. | |
| From the RAM approximately 4 MB are available for the storage of measured values. | ||
| Configuration | Set up the analyzer to measure and display data in the format required. | |
| Ambient Conditions | ||
| Working Temperature Range | 5°C to 35°C (41°F to 95°F) | |
| Storage Temperature Range | -20°C to 50°C (-4°F to 122°F) | |
| Housing Material | Fluke Norma Power Analyzers are extremely compact and equipped with a solid metal case to meet stringent EMC requirements. | |
| Climatic Class | KYG DIN 40040, max. 85% relative humidity, non-condensing. | |
| Power supply | 85 V AC to 264 V AC, 50 Hz to 60 Hz, DC 100 to 260 V, ca. 40 VA European plug with switch. Binding post for current available on some models. | |
| Measuring Inputs | Safety sockets 4 mm, 2 for each input. External shunt connection over BNC socket. | |
| Operation | Membrane keyboard with cursor – function keys and direct functions. | |
| Connections | Rear panel of the 3-phase Analyzer | |
| Measured Values | ||
Non-gapping calculation of averaged values for each phase. In three phase system additionally calculation of total power and averaging of V and I of the three phases. The fundamental H01 will be calculated in synchronous mode also for these values.
|
||
| Frequency and Synchronization | ||
| Range | DC and 0.2 Hz to sample rate | |
| Accuracy | ±0.01% of measured value (reading) | |
|
||
| Configuration Memory | ||
| Up to 15 user configurations can be saved into a permanent memory and reloaded later on. Changes that were not saved are lost after switching off the instrument. | ||
| Interface | ||
| RS232 interface for upload of firmware and data exchange with the PC. A printer can be connected over an external converter. | ||
| Options | IEEE 488.2 / 1 MBit/s | |
| Ethernet / 10 MBit/s or 100 Mbit/s | ||
| Standards and Safety | ||
| Electrical Safety | EN 61010-1 / 2nd Edition 1000 V CAT II (600V CAT III) | |
| Degree of pollution 2, safety Class I | ||
| EN 61558 for transformer | ||
| EN 61010-2-031/032 for accessories | ||
| Maximum inputs | For voltage inputs Measurement range 1000 Veff, 2 kVpeak | |
| For current inputs Measurement range 10 Aeff, 20 Apeak | ||
| Test voltage | Net input | case (protective conductor): 1.5 KV AC |
| Net connection | Measurement input: 5.4 kV AC | |
| Measurement inputs | Case: 3.3 kV AC | |
| Measurement input | input: 5.4 kV | |
| Electromagnetic susceptibility | Emission | IEC 61326-1, EN 50081-1, EN 55011 Class B |
| Immunity | IEC 61326-1 / Annex A (industrial sector), EN 50082-1 | |
Power Phases
The Fluke Norma 4000 Power Analyzer can be equipped with up to three power phases. Users can select the power phase best suited for their application.
Each modular plug-in power phase consists of a voltage and a current measurement channel. Each measuring channel is available for each basic unit, however only one kind of channel can be used per unit. Check standard configurations.
Power Phase Overview
| Power Phase Channels | ||
| PP42 | Accuracy | 0.2% (0.1% rd + 0.1% rg) |
| Current range | 20 A | |
| Sampling rate | 341 kHz | |
| Bandwidth | 3 MHz | |
| PP50 | Accuracy | 0.1% (0.05% rd + 0.05% rg) |
| Current range | 10 A | |
| Sampling rate | 1 MHz | |
| Bandwidth | 10 MHz | |
| PP54 | Accuracy | 0.1% (0.05% rd + 0.05% rg) |
| Current range | 10 A | |
| Sampling rate | 341 kHz | |
| Bandwidth | 3 MHz | |
| PP64 | Accuracy | 0.03% (0.02% rg + 0.01% rg) |
| Current range | 10 A | |
| Sampling rate | 341 kHz | |
| Bandwidth | 3 MHz | |
Current Shunts
| Planarshunt | |
| Continuous load (Imin) Range (Imax) |
0.3 A |
| 32 A | |
| Nominal current (calibration point) | 32 A |
| Basic accuracy at calibration point [%] | ± 0.03 |
| Basic accuracy at nominal current [%] | ± 0.03 |
| Nominal voltage drop [V] | 320 mV |
| Nominal resistance [Ohm] | 10 mΩ |
| Short time overrange (5s load 15s interval) |
100A/ 1s-5s |
| Overload Wmax | - |
| Bandwidth | DC - 1 MHz |
| Frequency range | - |
| Angular accuracy [°/kHz] | ± 0.1 |
| Frequency influence [%/kHz] | - |
| Load influence [%/A2] | - |
| Temperature coefficient [ppm/K] | ≤10 |
| Weight (kg / lbs) | 0.62 /1.36 |
| Triaxialshunts | |||
| Continuous load (Imin) Range (Imax) |
0.1 A | 1 A | 6 A |
| 30 A | 100 A | 300 A | |
| Nominal current (calibration point | 10 A | 30 A | 100 A |
| Basic accuracy at calibration point [%] | ± 0.03 | ± 0.03 | ± 0.1 |
| Basic accuracy at nominal current [%] | ± 0.03 | ± 0.03 | ± 0.1 |
| Nominal voltage drop [V] | 100 mV | 30 mV | 20 mV |
| Nominal resistance [Ohm] | 10 mΩ | 1 mΩ | 0.2 mΩ |
| Short time overrange (5s load 15s interval) | 35 A | 200 A | 450 A |
| Overload Wmax | 90 W | 200 W | 2 kW |
| Bandwidth | 2 MHz | 2 MHz | 1 MHz |
| Frequency range | 0 to 500 kHz | 0 to 200 kHz | 0 to 100 kHz |
| Angular accuracy [°/kHz] | ± 0.001 | ± 0.002 | ± 0.002 |
| Frequency influence [%/kHz] | ± 0.0015 | ± 0.0015 | ± 0.01 |
| Load influence [%/A2] | 1 x 10-6 | 1 x 10-6 | 1 x 10-6 |
| Temperature coefficient [ppm/K] | ≤15 | ≤15 | ≤10 |
| Weight (kg / lbs) | 0.75 / 1.65 | 0.75 / 1.65 | 1.2 / 2.65 |
| Triaxialshunts (Cont.) | |||
| Continuous load (Imin) Range (Imax) |
2 A | 18 A | 18 A |
| 450 A | 1000 A | 1500 A | |
| Nominal current (calibration point | 150 A | 300 A | 500 A |
| Basic accuracy at calibration point [%] | ± 0.1 | ± 0.1 | ± 0.1 |
| Basic accuracy at nominal current [%] | ± 0.1 | ± 0.1 | ± 0.1 |
| Nominal voltage drop [V] | 75 mV | 15 mV | 30 mV |
| Nominal resistance [Ohm] | 0.5 mΩ | 0.06 mΩ | 0.06 mΩ |
| Short time overrange (5s load 15s interval) | 650 A | 1500 A | 2000 A |
| Overload Wmax | 10 kW | 7.5 kW | 10 kW |
| Bandwidth | DC - 500 MHz | DC - 500 kHz | DC - 200 kHz |
| Frequency range | 0 to 100 kHz | 0 to 20 kHz | 0 to 20 kHz |
| Angular accuracy [°/kHz] | ± 0.025 | ± 0.025 | ± 0.025 |
| Frequency influence [%/kHz] | ± 0.03 | ± 0.03 | ± 0.03 |
| Load influence [%/A2] | 0.5 x 10-6 | 0.2 x 10-6 | 0.5 x 10-6 |
| Temperature coefficient [ppm/K] | ≤10 | ≤10 | ≤10 |
| Weight (kg / lbs) | 6 / 13.2 | 5.3 / 11.7 | 6 / 13.2 |
