Spesifikasi Jual Electrolizers TIAANO

ELECTROLYSERS
Electrolyzer for disinfection of water
We design fabrication, supply, erection & commissioning of Electro-chlorination Electrolyzer (cell assembly) and its spares for...

  • Available chlorine capacity of 10 GPH to 1000 Grams. / hr. for general application.
  • Higher capacity with multifold cell assembly [more than 1250 kg/hr.] for industrial / commercial application.
  • Our electrodes are manufactured form Titanium Sheet, Mesh, Plate, Rod, Wire, Tube, Pipe and the combination of all the above, confirming to ASTM B 265, 348 & 337 or 338 gr.1 & 2.
  • Electrodes are to be coated with platinum group of precious metal mixed oxide and or platinum in the thickness of minimum 6-micron.
  • Bi-polar, Mono-polar & Reverse polarization cell design is also in our scope.
  • We design the cell voltage for 3.5 to 4.5.
  • Life guarantee for DSA (precious metal oxide mix) coating of 5 years, depends on the current density and material of construction [sheet, mesh or pipe].
  • The Reverse Polarity cell is guaranteed up to 10000 hours of operation, or depends on the operating conditions in swimming pool.
  • We adopt the different design parameters to design the electrolyzers, for...
  • Sea water,
  • Brine,
  • Swimming pool operation.
Electrolyzer for bio-fouling of sea water
Whenever seawater or freshwater is utilized in an engineering process such as a Power Station, Petrochemical Works or Refinery, biological fouling is an ever present cause for treatment. Bio-fouling restricts the cooling flow at CW pump intakes, in pipe runs and reduces heat transfer across heat exchangers, and condensers, thereby reducing the efficiency of the process. Electrochlorinator manufactured by Ti Anode Fabricators Pvt Ltd, India will keep the intakes free of bio fouling and maintain the efficiency of heat transfer and reduce the system life cycle costs with extended equipment life.

Our systems are now providing the most advanced electrochlorination equipment available as well as a technically superior design for energy efficient long-term plant operation. Also replacing electrolyzers for the systems available worldwide manufactured and supplied by M/s. Denora, M/s. Sespi, M/s. US Filters, under the brand names of Chloropac, Sanichlor, Sanilac & etc.

The systems are designed and manufactured in fully assembled multi skid packages to make the installation as easy and fast as possible and give assurance in greater reliable operation by factory functional testing of parts after assembly.

For example, LNG plants use tremendous amounts of water, required to cool nitrogen gas. Tichlor is the natural solution for prevention of bio fouling in these cooling water systems. Ti Anode Fabricators Pvt Ltd, India has proven itself by Its Long-term performance and service to the L.N.G. industry, by the way of replacing their titanium electrolyzers.

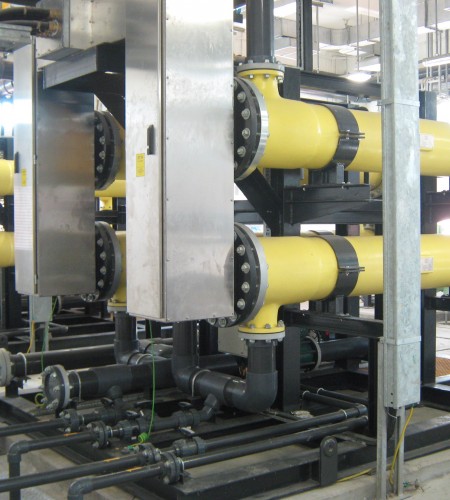

Elektrolizers Ready for Shipment          Titanium Electrodes Assembly          Titanium Tubular Electrolyzer
