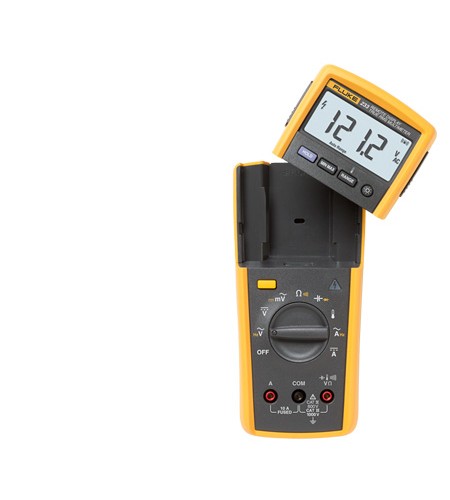

Fluke 233 Remote Display Digital Multimeter
Perhatian!
Spesifikasi Fluke 233 Remote Display Digital Multimeter
- True RMS AC voltage and current for accurate measurements on non-linear signals
- Measure up to 1000 VAC and DC
- Measure up to 10 A (20 A for 30 seconds)
- 10,000 μF capacitance range
- Frequency to 50 kHz
- Built in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
- Resistance, continuity and diode test
- Low power wireless technology allows the display to be carried up to 10 meters (33 ft) away from the point of measurement for added flexibility. No interference with measurements
- The removable magnetic display can be conveniently mounted where it is easily seen
- Make measurements without holding the meter to improve visual focus on probes and augment safe electrical measurements
- Use as a conventional multimeter when the display is connected
- Radio transmitter automatically turns off when the display is connected to the meter
- Auto power off maximizes battery life
- Min/Max and Average recording to capture variations automatically
- Test continuity and diodes
- Easy to read display with large digits and bright backlight
- Battery life approximately 400 hours
| Accuracy specifications | ||
| DC voltage | Range | 0.1 mV to 1000 V |
| Accuracy | 0.25% + 2 | |
| AC voltage | Range | 0.1 mV to 1000 V |
| Accuracy | 1.0% + 3 | |
| DC current | Range | 1 mA to 10 A |
| Accuracy | 1.0% + 3 | |
| AC current | Range | 1 mA to 10 A |
| Accuracy | 1.5% + 3 | |
| Resistance | Range | 0.1 Ω to 40 MΩ |
| Capacitance | Range | 1 nF to 9999 μF |
| Resolution | 1nF | |
| Frequency | Range | 5 Hz to 50 kHz |
| Resolution | 0.01 Hz | |
| Counts | 6000 | |
| Temperature | -40°C to +400°C | |
| Power | AA batteries: Three for main body two for display | |
| Battery life | 400 hours | |
| Wireless frequency | 2.4 GHz ISM Band 10 meter range | |
| Safety rating | CAT IV 600 V , CAT III 1000 V | |
| General specifications | ||
| Basic features | AC true-rms | Yes |
| Ranging | Auto/manual | |
| Display | Backlight | Yes |
| Data storage | Min/Max/Avg | Yes |
| Other features | Battery type | AA alkaline |
| Removable display | Yes | |
| Warranty and protection | Safety rating | CAT IV 600 V/CAT III 1000 V |
| External protection | Rubber overmold | |
| Warranty | Three-years | |
| Size (H x W x L) | 5.3 x 9.3 x 19.3 cm (2.08 x 3.6 x 7.6 in) | |
| Weight | 604 g (1.3 Ib) | |
