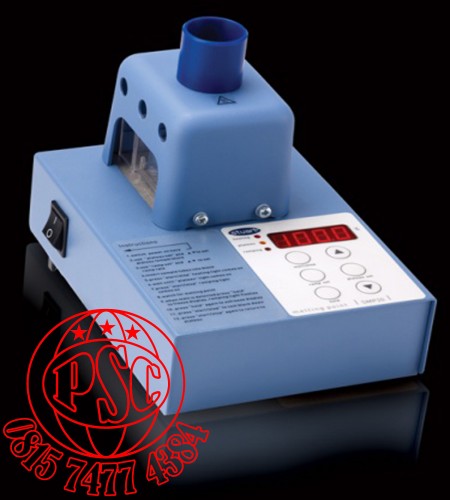

Melting Point Apparatus SMP10 Stuart

Melting Point Apparatus SMP10 Stuart

Specifications

No. of samples

Up to 3

Temperature range

50 to 250 °C

Heating rate

1 to 10 °C min

Dimensions ( W x D x H )

370 x 140 x 110 mm

Net weight

1.7 kg

Electrical supply

230 V, 50 Hz, 50 W

Melting point tubes

Made from soda glass, these tubes are easy to seal in a Bunsen flame and break into two. Supplied in robust tube holder, pack of 100 tubes. Tube overall length is 100 mm Tube diameter = 1.9 mm, inner diameter = 1.3 mm and wall thickness = 0.3 mm.

Melting Point Apparatus, Analogue, SMP11

Model

Description

SMP11

Melting point Apparatus, complete with thermometer and pack of 100 melting point tubes ( open both ends )

SMP111

Spare thermometer, spirit filled, 50 °C to 250 °C

SMP12

Cooling plug ( brass ) for rapidly reducing heating block temperature after use

SMP14

Glass melting point tubes, open at both ends, pack of 100

SMP21

Glass melting point tubes, closed at both ends, pack of 100

SMP101

Glass melting point tubes, closed at one end, pack of 100

Supplied complete with calibration certificate showing individual serial number for traceability.

Model

SMP10

Number of samples

2

Temperature range

Ambient to 300 ºC

Temperature accuracy

± 1.0 ºC at 20 ºC, ± 2.5 ºC at 300 ºC

Display

Three digit LED

Display resolution

1 ºC

Display hold facility

No

Ramp rates

20 ºC per minute to plateau, 2 ºC per minute to melt

Dimensions ( W x D x H )

160 x 220 x 170 mm

Net weight

1.8 Kg

Electrical supply

230 V, 50 Hz, 75 W

Model

SMP20

Number of samples

2

Temperature range

Ambient to 300 ºC

Temperature accuracy

± 1.0 ºC at 20 ºC, ± 2.5 ºC at 300 ºC

Display

Four digit LED

Display resolution

0.1 ºC

Display hold facility

Yes

Ramp rates

20 ºC per minute to plateau, variable between 1 and 10 ºC per minute to melt

Dimensions ( W x D x H )

160 x 220 x 170 mm

Net weight

1.8 Kg

Electrical supply

230 V, 50 Hz, 75 W

Melting point tubes

Made from soda glass, these tubes are easy to seal in a Bunsen flame and break into two. Supplied in robust tube holder, pack of 100 tubes. Tube overall length is 100 mm Tube diameter = 1.9 mm, inner diameter = 1.3 mm and wall thickness = 0.3 mm.

Model

Description

SMP10

Melting point apparatus, 1 ºC resolution, complete with pack of 100 melting point tubes, closed at one end

SMP20

Melting point apparatus, 0.1 ºC resolution, complete with pack of 100 melting point tubes, closed at one end

SMP10/ 1

Glass melting tubes, closed at one end, pack of 100

SMP2/ 1

Glass melting tubes, closed at both ends, pack of 100

SMP1/ 4

Glass melting tubes, open at both ends, pack of 100

An accessory printer is available separately to produce a written record of the melt, and all units are supplied with a calibration certificate showing individual serial numbers for traceability.

No of samples

3

Temperature range

Ambient to 400 °C

Temperature resolution

0.1 °C

Temperature accuracy

± 0.5 at 50 °C, ± 1.0 at 100 °C, ± 2.5 at 360 °C

Display

40 x 4 LCD

Ramp rates

0.5 - 10 °C in 0.1 °C increments

Temperature sensor

PT1000 Platinum resistance

Memory

7 results per tube

Accessory printer available

Yes

Datetime display

Yes

Cool down time 350 - 50 °C

~ 10 mins

Heat up time 50 - 350 °C

~ 6 mins

Electrical supply

120 V,230 V, 50 Hz

Language variants

English, German, French, Italian, Spanish

Temperature units

°C

Size Dimensions ( W x D x H )

325 x 200 x 170 mm

Net Weight

3.6 kg

Model

Description

SMP30

Melting point apparatus, complete with pack of 100 melting point tubes, open at one end.

SMP30 / IQOQ

Melting point apparatus, complete with IQOQ documentation and pack of 100 melting point tubes, open at one end.

SMP30 / 1

Accessory printer with power supply

SMP10 / 1

Glass melting point tubes, closed at one end, pack of 100

An accessory printer is available separately to produce a written record of the melt, and all units are supplied with a calibration certificate showing individual serial numbers for traceability.

No of samples

3

Temperature range

Ambient to 400 °C

Temperature resolution

0.1°C

Temperature accuracy

± 0.5 at 50 °C, ± 1.0 at 100 °C, ± 2.5 at 360 °C

Display

40 x 4 LCD

Ramp rates

0.5-10 °C in 0.1 °C increments

Temperature sensor

PT1000 Platinum resistance

Memory

7 results per tube

Accessory printer available

Yes

Datetime display

Yes

Cool down time 350 - 50 °C

~ 10 mins

Heat up time 50 - 350 °C

~ 6 mins

Electrical supply

120 V,230 V, 50 Hz

Language variants

English, German, French, Italian, Spanish

Temperature units

°C

Size Dimensions ( W x D x H )

325 x 200 x 170 mm

Net Weight

3.6 kg

Model

Description

SMP30

Melting point apparatus, complete with pack of 100 melting point tubes, open at one end.

SMP30 / IQOQ

Melting point apparatus, complete with IQOQ documentation and pack of 100 melting point tubes, open at one end

SMP30 / 1

Accessory printer with power supply

SMP10 / 1

Glass melting point tubes, closed at one end, pack of 100

All units are factory supplied with a calibration certificate showing individual serial number for traceability. The SMP50 also conforms to Pharmacopeia and GLP

Technical Specification

SMP50

No of samples

3 simultaneously

Temperature range

Ambient to 400 °C

Temperature resolution

0.1 °C

Display

7 inch HD Colour

Ramp rates

0.1-20 °C in 0.1 °C increments

Temperature sensor

PT1000 Platinum resistance

Memory

8GB ( approx. 300 results with video )

Cool down time 350 - 50 °C

~12 mins

Heat up time 50 - 350 °C

~ 6 mins

Oven control

Closed loop PID

Data transfer

USB Flash drive

Sample level

2-3 mm in 50 mm or 100 mm length capillaries

Electrical supply

120 V 230 V, 50-60 Hz

Temperature units

°C or °F

Size Dimensions ( W x D x H )

164 x 360 x 300 mm

Net Weight

4.6 Kg

Languages

English, French

Product code

Description

SMP50

Automatic melting point

SMP50 / IQOQ

Automatic melting point with IQ / OQ documentation

SMP50 / PRINTER

Accessory Printer

SMP2 / 1

Glass melting point tubes, closed at both ends, pack of 100

SMP10 / 1

Glass melting point tubes, closed at one end, pack of 100
