Brainchild Human Machine Interface (HMI) Type 730
Perhatian!
Spesifikasi Brainchild Human Machine Interface (HMI) Type 730

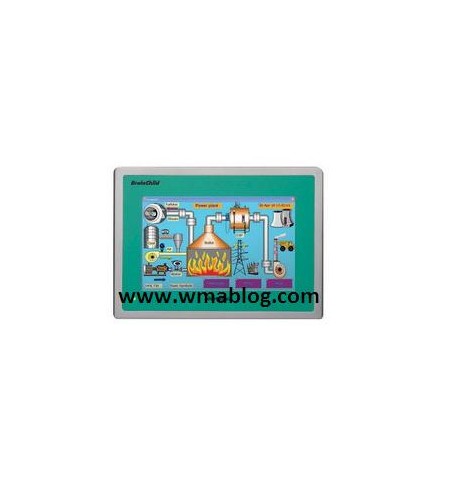

Human Machine Interface (HMI) Type 730
Description
SmartPanels are new Human Machine Interface (HMI) / Operator Interfaces, WinCE 6.0, LED technology, Wide panels, higher resolution, and four sizes in 4.3”, 7”, 10” & 15”. Ethernet, USB host, 2 Serial ports, SD, Audio input/output. Extensive connectivity to MPI/Profibus-DP, ProfiNet, DeviceNet, EtherNet/IP. CANopen,BACnet/IP & CC-Link. Metal/Stainless steel enclosures for rugged environments.
Vertical/Horizontal installation. IP66K for Food, Beverage, Pharma and Oil & Gas. As a professional and experienced manufacturer, we supply high-performance and quality human machine interfaces (HMI), which are also called operator panels,operator interfaces, operator interface terminals, HMI, industrial HMI, HMI screen, and HMI touch screen.
Features
•Six models in four sizes of 4.3”, 7”, 10” & 15”
•Two low-cost models HMI 450 & 730 with optional Ethernet and SD slot, three high-performance HMI 750, 1050, 1060 (wide screen) & 1550 with standard Ethetnet and SD slot.
•Touch panels, higher resolution and all in 65536 colors
•USB host, 2 Serial ports.
•Net works of Profibus-DP, ProfiNet, DeviceNet & EtherNet/IP, CANopen, CC-Link.
•Advenced and reliable WinCE 6.0 platform with more features for efficient and sophisticated control solutions
•HMI 750, 1050, 1550 standard aluminum front bezels, optional stainless steel fronts for food, beverage, pharmaceutical industries
•Rugged stainless steel front bezels with IP66K for high protection on dust & water, and polished surface for easy cleaning
•Large memory of 128 MB Flash, 256MB SDRAM, sound input + output, 3DI + 3DO
•USB Host port used for Keyboard, USB stick and mouse
•Horizontal or vertical installation and display
•Wide range of power supply 11-36 VDC or 90-250 VAC
•LED backlight for even-color displays and long lifetime
•Open WinCE 6.0 Core & Professional panels for OEM business
Specification
|
Display |
|
|
Size |
7" |
|
Resolution (W x H in pixels) |
800 x 480 |
|
Display type |
TFT wide touch screen |
|
Colors |
65,536 |
|
Touch screen Type |
Resistive analog |
|
Active Display Area ( W x H mm ) |
152 x 91 |
|
Display position |
Both horizontal & vertical |
|
MTBF backlight at 25 °C |
50,000 hrs |
|
Backlight |
LED |
|
Brightness Adjustment |
Yes |
|
Screen Saver |
Yes |
|
Language Fonts |
Unicode including Simplified and Traditional Chinese, Japanese & Korean |
|
Main Hardware |
|
|
Processor, CPU speed |
ARM Cortex-A8,667Mhz |
|
Flash Memory (ROM) |
128 MB |
|
SDRAM (RAM) |
128 MB |
|
Operation System |
WinCE 6.0 |
|
Real Time Clock |
Yes |
|
Buzzer |
Yes |
|
Sound Input+Output,3DI+3DO |
N.A. |
|
SD card slot |
Option |
|
Interfaces |
|
|
RS232C, DB9 Male |
1 |
|
RS232C/ RS422/ RS485, DB25 Female |
1 |
|
Ethernet 10/100 Mbps, RJ45 |
Option |
|
USB Host |
1 |
