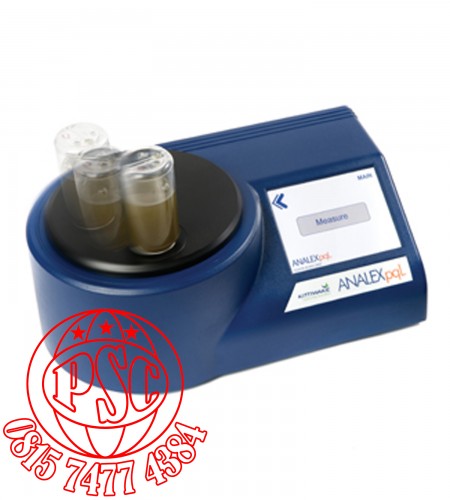

ANALEX PqL-PQ Index Wear Debris FG-K17000-KW Kittiwake

ANALEX pqL - PQ Index Wear Debris

Product Code

FG-K17000-KW

ANALEX PQ measurements are a very commonly applied technique for screening laboratory Used Oil Analysis samples. This is the most significant improvement made in the last 20 years with greatly increased reproducibility at low range, reduced footprint and faster cycle time. Wear debris screening allows easy trending and rapidly identifies high wear rates to flag for in-depth examination. Reporting ferrous debris levels is an essential part of used oil analysis.

Designed specifically for used oil analysis laboratories as a replacement for the widely used pqM and pqA instruments. Developed with new hardware and upgraded software, the boasts the most accurate means of detecting and measuring ferrous wear debris in lubricating oils, hydraulic oils and greases. Features include :

Increased accuracy and low range reproducibility ( across instruments )

Improved reliability and durability

Measurement cycle time more than halved compared to pqA

Reduced footprint

Sample container flexibility

Backwards data compatibility

PC and ethernet connectivity

4 x USB Ports ( for Memory Stick, Printer, Keyboard, Mouse etc )

Optional barcode scanner, Optional loading robot

Specifications

Repeatability

±4 PQ or ±1% [ whichever is greater ]

Resolution

1 PQ

Measurement Range

0 - 5000 PQ

Cycle Duration

4 Seconds

Minimum PQ Detection

1 PQ

Size & Weight

370 mm x 230 mm ( 3.6 kg )

Optional Extras & Consumables

Part Number

Description

FG-K18300-KW

Printer Kit

FG-K18311-KW

Barcode Scanner

FG-K18305-KW

Spare Paper

Part Number

Description

FG-K3-208-KW

100 ml HDPE sample bottles ( 288 )

FG-K3-207-KW

100 ml PET sample bottles ( 288 )

FG-K15005-KW

5 ml plastic sample pots for oils and greases ( 3000 )
