Digi-Heating Mantles Electrothermal

Digi-Mantles Electrothermal

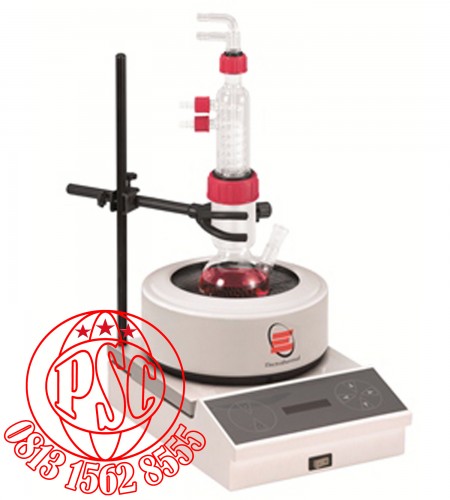

Digi-Mantles enable a round bottom flask of 100 to 250 ml, 500 ml or 1000 ml capacity to be stirred and heated up to an element temperature of 450°C through precise electronic control, giving an accurate measure of temperature and stirring. The modular design allows heating cartridges of different sizes to be interchanged using the same OMCA digital controller as a base, which makes Digi-Mantles a very cost-effective option.

Heater Cartridge

The heater cartridge ensures that the temperature is uniformly distributed across the round bottom flask. Even at an element temperature of 450 °C, the outside of the heater cartridge remains "cool-to-the-touch" due to the air flow through ventilation slots beneath and around the rim of the case.

The heater cartridge comes in 3 sizes for heating round bottom flasks of capacity 100 to 250 ml ( OMCA0250 ), 500 ml ( OMCA0500 ) and 1000 ml ( OMCA1000 ) capacity.

OMCA Digital Controller

Used to control both temperature and stirring speed independently, the OMCA digital controller has a revolutionary CTC (Capacitance Touch Control) panel, which is both easy to read and use, and you can set the required temperature and stir speed by using the up/down arrows. The control panel has separate indicators lights for the power, heater and stirrer functions, along with a 3-digit display indicating the actual temperature from ambient to 450°C. Stirring speeds from 100 2000rpm are obtained by lightly touching the stirrer speed keys.

Temperature Control

Heating is controlled by a modern state of the art microprocessor, which displays the heat setting as a percentage of the total power. An optional temperature probe may be used to gauge the temperature of the flask contents more accurately; the temperature probe's heating is controlled via the temperature feedback circuit and the actual temperature is displayed.

Improved Stirring

The OMCA digital controller and motor arrangement has recently been upgraded to allow for accurate low speed stirring control and higher stirring speeds. Uniform stirring is provided via a motorised rotating magnet assembly positioned to provide maximum magnetic flux linkage to rotate the stirrer bars in each reaction vessel.

Key Features

Same OMCA controller accommodates different capacity heating cartridges, i.e. interchangeable design

Round bottom flask capacity of between 100 -1000 ml

Vented casing ensures the outer is safe to touch

Greater stirring stability and speeds from 100 to 2000 rpm

Controller with display menus and touch pad interface

Indicator lights for power, stirrer and heater operation

Supplied with a support rod ( NOTE clamps are not supplied )

CE Certification

Technical specification

Model

Digi-Mantle 250

Digi-Mantle 500

Digi-Mantle 1000

Catalogue Number

OMCA0250

OMCA0500

OMCA1000

Voltage

230 V or 115 V

230 V or 115 V

230 V or 115 V

Flask Capacity

100 - 250 ml

500 ml

1000 ml

Max Element Temperature

450 °C

450 °C

450 °C

Stir Speed Range

100 - 2000 rpm

100 - 2000 rpm

100 - 2000 rpm

Case Material

Powder-coated Aluminium

Powder-coated Aluminium

Powder-coated Aluminium

Dimensions ( D x W x H )

300 x 300 x 650 mm

300 x 300 x 650 mm

300 x 300 x 650 mm

Shipping weight

3.1 kg

3.1kg

3.1kg

Ordering information

Catalogue no

Description

OMCA*

Digi-Mantle digital controller for temperature and stirring

OMCA0250*

Digi-Mantle kit ( 250 ml capacity )

OMCA0500*

Digi-Mantle kit ( 500 ml capacity )

OMCA1000*

Digi-Mantle kit ( 1000 ml capacity )

ATS10063

PT100 Temperature probe ( 5 pin )

OM0250*

Replacement 250 ml Digi-Mantle heater cartridge

OM0500*

Replacment 500 ml Digi-Mantle heater cartridge

OM1000*

Replacement 1000 ml Digi-Mantle heater cartridge
