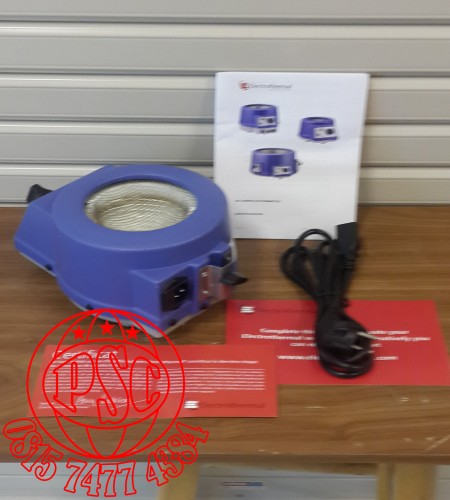

EMV and EMX Heating Mantles Electromantles
Perhatian!
Spesifikasi EMV and EMX Heating Mantles Electromantles
|
EMV and EMX Electromantles : V-shaped and Spill-Proof |
||||
|
EMX Spill-proof Electromantles and EMV V-shaped Electromantles may accommodate 60° funnels, pear-shaped or round botom flasks. They have been designed to accept a large range of flasks and funnel sizes for added flexibility. |
||||
|
The stainless steel screen on all EMV models covers the heater element to protect you from shock hazards due to spills or flask breakage. The EMX models feature a stainless steel liner over the heating element to provide additional electrical and mechanical protection against spills and ensures easier cleaning. |
||||
|
Key Features of EMV V-shaped models |
||||
|
Bottom opening accommodates round bottom and pear-shaped flasks and 60° funnels of various diameters |
||||
|
Capacity between 10 ml to 5 litres |
||||
|
Coiled heating element, suspended within a thermal insulating cartridge, provides maximum heat transfer and support |
||||
|
"Cool-to-touch" outer casing |
||||
|
Maximum element temperature 450 °C |
||||
|
Built-in energy regulator |
||||
|
Replaceable insulated heater cartridge |
||||
|
Indicator lamps for power and heater operation |
||||
|
Chemically resistant polypropylene outer casing |
||||
|
Grounded earth screen and double fuses for added safety |
||||
|
Bracket for 1.3 cm support rods ( but not including support rods ) |
||||
|
Key Features of EMX Spill-proof models |
||||
|
Bottom opening accommodates round bottom and pear-shaped flasks and 60° funnels of various diameters |
||||
|
Capacity between 500 ml to 5 litres |
||||
|
Coiled heating element, suspended within a thermal insulating cartridge, provides maximum heat transfer and support |
||||
|
"Cool-to-touch" outer casing |
||||
|
Maximum element temperature 450°C |
||||
|
Built-in energy regulator |
||||
|
Replaceable insulated heater cartridge |
||||
|
Indicator lamps for power and heater operation |
||||
|
Chemically resistant polypropylene outer casing |
||||
|
Double fuses for added safety |
||||
|
Grounded earth stainless steel liner to provide additional spill-proof protection |
||||
|
Bracket for 1.3 cm support rods ( but not including support rods ) |
||||
|
Technical Specification |
||||
|
EMX/EMV Model |
EMV0050 |
EMV0250 |
EMV1000, EMX1000 |
EMV5000, EMX5000 |
|
Flask capacity |
10 - 50 ml |
100 - 250 ml |
500 - 1000 ml |
2000 - 5000 ml |
|
Funnel Sizes |
50 - 75 mm |
75 - 100 mm |
100 - 200 mm |
200 - 300 mm |
|
Max element temperature |
450 °C |
450 °C |
450 °C |
450 °C |
|
Dimensions ( D x W x H ) |
260 x 175 x 127 mm |
260 x 175 x 127 mm |
310 x 238 x 145 mm |
400 x 350 x 190 mm |
|
Shipping Weight |
0.78 kg |
0.78 kg |
2.76 kg |
5.96 kg |
|
EMV Series Ordering Information |
||||
|
Model |
Capacity |
Electrical Requirement |
||
|
EMV0050/CE |
10 to 50 ml |
230v 50/ 60Hz, 60 w UK and EU plug |
||
|
EMV0050/CEX1 |
10 to 50 ml |
115v 50/ 60Hz, 75 w |
||
|
EMV0250/CE |
100 to 250 ml |
230v 50/ 60Hz, 150 w UK and EU plug |
||
|
EMV0250/CEX1 |
100 to 250 ml |
115v 50/ 60Hz, 150 w |
||
|
EMV1000/CE |
500 to 1000 ml |
230v 50/ 60Hz, 300 w UK and EU plug |
||
|
EMV1000/CEX1 |
500 to 1000 ml |
115v 50/ 60Hz, 300 w |
||
|
EMV5000/CE |
2000 to 5000 ml |
230v 50/ 60Hz, 800 w UK and EU plug |
||
|
EMV5000/CEX1 |
2000 to 5000 ml |
115v 50/ 60Hz, 800 w |
||
|
EMX Series Ordering Information |
||||
|
Model |
Capacity |
Electrical Requirement |
||
|
EMX1000/SCE |
500 to 1000 ml |
230v 50/ 60Hz, 240 w UK and EU plug |
||
|
EMX1000/SCEX1 |
500 to 1000 ml |
115v 50/ 60Hz, 240 w |
||
|
EMX5000/SCE |
2000 to 5000 ml |
230v 50/ 60Hz, 600 w UK and EU plug |
||
|
EMX5000/SCEX1 |
2000 to 5000 ml |
115v 50/ 60Hz, 600 w |
||
