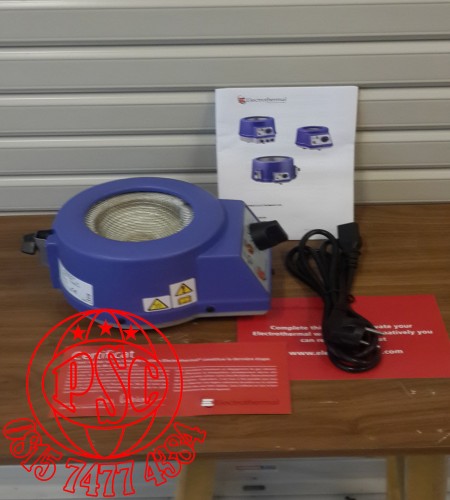

CMU Heating Mantles Controlled Electromantles
Perhatian!
Spesifikasi CMU Heating Mantles Controlled Electromantles
|
CMU Controlled Electromantles |
||
|
CMU metal-cased Electromantles are used in chemistry to heat liquids in round bottom flasks. They are ideal for busy laboratories with multiple users as they are very safe to use, the metal case being designed to remain cool when in operation. Additionally, they have a stainless steel grounded earth screen covering the element and are double-fused for added safety. In the event of any liquid spillage, the heating mantles automatically cut out to protect the user from electric shocks. |
||
|
Electrothermal Heating Mantles are manufactured to the highest quality in our UK manufacturing facility. Each mantle is made with extreme care and is hand sewn to assure its reliability, quality and safety. Maximum heat transfer to the sample is achieved by having excellent insulation around the cartridge and good flask coverage. All Electrothermal mantles go through the 'burn off' procedure at the end of the manufacturing process enabling use straight out of the box. |
||
|
Key Features |
||
|
Round bottom flask capacity of between 50 ml - 5000 ml |
||
|
Element temperatures up to 450 °C |
||
|
Built-in energy regulator |
||
|
Indicator lamps for power and heater operation |
||
|
Replaceable insulated heater cartridge |
||
|
An easy to clean powder coated aluminium outer casing |
||
|
"Cool-to-the-touch" exterior |
||
|
Non-skid feet and support rod bracket ( but not including the support rods ) |
||
|
Added safety features such as a grounded earth screen and double fuses |
||
|
Uncontrolled versions are also available ( recommended controller, MC5 ) |
||
|
Technical Specification |
||
|
CMU Model |
CMU0050, CMU0100, CMU0250 |
CMU0500, CMU1000 |
|
Flask capacity |
50 - 250 ml |
500 - 1000 ml |
|
Case material |
Powder-coated aluminium |
Powder-coated aluminium |
|
Max element temperature |
450°C |
450°C |
|
Dimensions ( D x W x H ) |
175 x 175 x 150 mm |
220 x 220 x 170 mm |
|
Shipping weight |
0.75 kg |
1.5 kg |
|
Ordering Information |
||
|
Model |
Capacity |
Electrical Requirements |
|
CMU0050CE |
50 ml |
230v 50 60Hz, 75 w UK and EU plug |
|
CMU0050CEX1 |
50 ml |
115v 50 60Hz, 75 w |
|
CMU0100CE |
100 ml |
230v50 60Hz, 100 w UK and EU plug |
|
CMU0100CEX1 |
100 ml |
115v 50 60Hz, 100 w |
|
CMU0250CE |
250 ml |
230v 50 60Hz, 200 w UK and EU plug |
|
CMU0250CEX1 |
250 ml |
115v 50 60Hz, 200 w |
|
CMU0500CE |
500 ml |
230v 50 60Hz, 280 w UK and EU plug |
|
CMU0500CEX1 |
500 ml |
115v 50 60Hz, 280 w |
|
CMU1000CE |
1000 ml |
230v 50 60Hz 380 w, UK and EU plug |
|
CMU1000CEX1 |
1000 ml |
115v 50 60Hz, 380 w |
