Spesifikasi Heating Mantles Multi Extraction 3 Recess Electrothermal
|

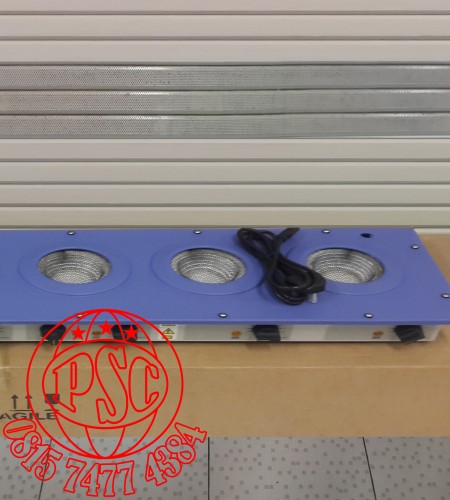

Multi ( Extraction ) Mantles : 3 Recess Model |
|||||
|
The 3 place multi position ( extraction ) mantle has a built-in electronic controller and offers a choice of heater only ( EME3 ) or heater/stirrer ( EMEA3 ) combination. |
|||||
|
The vented case's unique air flow ensures the outer case remains safe to touch. |
|||||
|
For both Heater EME3 and Heater/Stirrer EMEA3 models |
|||||
|
Individual built-in solid state electronic controls enable easy regulation of heater, while removing sparking associated with mechanical switching |
|||||
|
Three 12.7 mm diameter support rods are included |
|||||
|
Round bottom flask capacity from 100 ml to 1000 ml at all 3 positions |
|||||
|
Top cover is polypropylene and external surfaces are powder coated giving good general chemical resistance |
|||||
|
Coiled heating element is suspended within a thermal insulating cartridge to provide maximum heat transfer and support |
|||||
|
Earth ( ground ) screen encloses the heater for added safety |
|||||
|
Individual heater cartridges are replaceable |
|||||
|
Neon lights indicate when power is on and supplied to heaters and, if applicable, supplied to stirrers |
|||||
|
Additional Features for Heater/Stirrer EMEA3 models only |
|||||
|
Allow the solution to be stirred and heated simultaneously |
|||||
|
Provide stirring speeds of between 50 to 1000 rpm |
|||||
|
One stirring control operates each set of three recesses |
|||||
|
Technical Specification |
|||||
|
Material |
Polypropylene top on powder-coated aluminium |
||||
|
Max element temp. |
450°C |
||||
|
Heater Model Ordering Information |
|||||
|
Model |
Flask |
Dimensions |
Reces |
Electrical |
Shipping |
|
Capacity |
D x W x H. mm |
Requirements |
Weight, kg |
||
|
EME30100/CEB |
3 x 100 ml |
270 x 640 x 110 |
3 |
230v 50/ 60Hz, 180W UK and EU plug |
6.2 |
|
EME30100/CEBX1 |
3 x 100 ml |
270 x 640 x 110 |
3 |
115v 50/ 60Hz, 180W |
6.2 |
|
EME30250/CEB |
3 x 250 ml |
270 x 640 x 110 |
3 |
230v 50/ 60Hz, 450W UK and EU plug |
6.2 |
|
EME30250/CEBX1 |
3 x 250 ml |
270 x 640 x 110 |
3 |
115v 50/ 60Hz/ 450W |
6.2 |
|
EME30500/CEB |
3 x 500 ml |
285 x 755 x 130 |
3 |
230v 50/ 60Hz, 600W UK and EU plug |
7.4 |
|
EME30500/CEBX1 |
3 x 500 ml |
285 x 755 x 130 |
3 |
115v 50/ 60Hz, 600W |
7.4 |
|
EME31000/CEB |
3 x 1000 ml |
285 x 755 x 130 |
3 |
230v 50/ 60Hz, 900W UK and EU plug |
7.4 |
|
EME31000/CEBX1 |
3 x 1000 ml |
285 x 755 x 130 |
3 |
115v 50/ 60Hz, 900W |
7.4 |
|
Heating/Stirrer Model Ordering Information |
|||||
|
Model |
Flask |
Dimensions |
Reces |
Electrical |
Shipping |
|
Capacity |
D x W x H. mm |
Requirements |
Weight, kg |
||
|
EMEA30100/CE |
3 x 100 ml |
270 x 640 x 110 |
3 |
230v 50/ 60Hz, 220W UK and EU plug |
7 |
|
EMEA30100/CEX1 |
3 x 100 ml |
270 x 640 x 110 |
3 |
115v 50/ 60Hz, 220W |
7 |
|
EMEA30250/CE |
3 x 250 ml |
270 x 640 x 110 |
3 |
230v 50/ 60Hz, 490W UK and EU plug |
7 |
|
EMEA30250/CEX1 |
3 x 250 ml |
270 x 640 x 110 |
3 |
115v 50/ 60Hz, 490W |
7 |
|
EMEA30500/CE |
3 x 500 ml |
285 x 755 x 130 |
3 |
230v 50/ 60Hz, 640W UK and EU plug |
8.4 |
|
EMEA30500/CEX1 |
3 x 500 ml |
285 x 755 x 130 |
3 |
115v 50/ 60Hz, 640W |
8.4 |
|
EMEA31000/CE |
3 x 1000 ml |
285 x 755 x 130 |
3 |
230v 50/ 60Hz, 940W UK & EU plug |
8.4 |
|
EMEA31000/CEX1 |
3 x 1000 ml |
285 x 755 x 130 |
3 |
115v 50/ 60Hz, 940W |
8.4 |
