Spesifikasi OS6000 series STEM Omni Reaction Stations Electrothermal

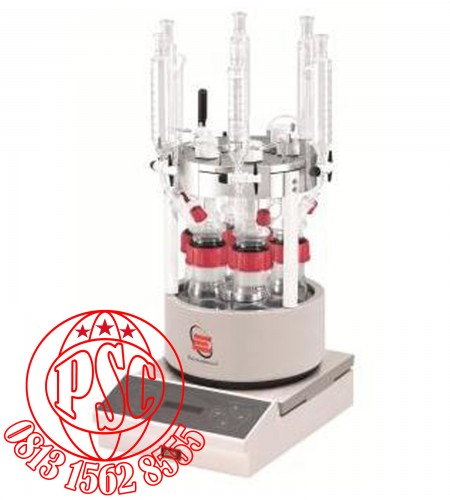

OS6000 series STEM Omni Reaction Stations

Our OS6000 series Omni Reaction Stations enable you to run up to 6 reactions simultaneously at the same controlled temperature and stirring rate. The modular design of the OS6000 series Omni Reaction Stations means that the same base unit ( OMCA ) can accommodate a variety of cartridges and sample volumes from 1 to 1000 ml. This base unit can accommodate the Digi-Mantle heating cartridges making OMCA a space saving, cost effective option for all labs.

There are 3 models in the OS6000 series :
  • OS6050 with a working volume of 5 - 50 ml
  • OS6100 with a working volume of 50 - 100 ml
  • OS6250 with a working volume of 100 - 250 ml
All heating cartridges, glassware and reflux heads are also interchangeable. In addition, the compact footprint of the OS6000 series means that they can be placed into any fume hood or onto a small bench space.

The upgraded OS6000 series Omni Reaction Stations now offer:
  • Interchangeable modular design
  • Greater stirring stability and stir speeds of 100- 800 rpm
  • Simple and intuitive operation
  • All heater cartridges are equipped with "in block heaters" that allow accurate temperatures up to 220°C.
  • High level of stability ( ± 1.5°C ) across the heater cartridge itself
  • An external temperature probe to increase temperature accuracy to ± 0.5°C
  • Selected cartridges can also be used in conjunction with a cooling plug to extend the temperature range from - 30°C to 220°C

Technical Specification
*Add X1 suffix for 115V model
Model OS6050 OS6100 OS6250
Voltage 230 & 115 230 & 115 230 & 115
Number of Positions 6 6 6
Well Diameter 40.5 mm 56.5 mm 56.5 mm
Working Volume 5- 50 ml 50- 100 ml 100- 250 ml
Controlled Block Temperature Range Ambient to 220ºC Ambient to 220ºC Ambient to 220ºC
Temperature range using cooling plug and chiller -30°C to 220°C -30°C to 220°C -30°C to 220°C
Stir Speed Range rpm 250- 800 250- 800 250- 800
Dimensions ( W x D x H ) 300 x 300 x 450 300 x 500 x 550 330 x 650
Shipping Weight ( kit ) 10 kg 10 kg 10 kg

Ordering Information

Catalogue no. Model kit
OS6050* Series 6050 kit for 6 position Omni Reaction Station ( working volume of 5- 50 ml )
OS6100* Series 6100 kit for 6 position Omni Reaction Station ( working volume of 50- 100 ml )
OS6250* Series 6250 kit for 6 position Omni Reaction Station ( working volume of 100- 250 ml )
OMCA Omni base Controller
ATS10112 Cooling plug for OS6050, OS6100 and OS6250











*Add X1 suffix for 115V model

OS6000 Series Kit Contents

Kit Contents OS6050 OS6050X1 OS6100 OS6100X1 OS6250 OS6250X1
OMCA Omni Controller + + + + + +
Omni heating cartridge 6 x 56 mm 6 x 56 mm 6 x 56 mm 6 x 56 mm 6 x 56 mm 6 x 56 mm
Reducing sleeves ( ATS10110 ) + + - - - -
Omni reaction Vessels ( glassware ) 6 x 50 ml 6 x 50 ml 6 x 100 ml 6 x 100 ml 6 x 250 ml 6 x 250 ml
Inerting caps + + + + + +
Stirrer bars + + + + + +
Omni reflux head + + + + + +
External Temperature Probe + + + + + +




















Accessories Ordering Information

Part Code Description
ATS10096 Reducing Column x 6
ATS10108 50 ml Round bottomed vessel x 6
ATS10110 Reducing sleeves for ATS10108
ATS10092 100 ml round bottomed vessel x 6
ATS10094 250 ml round bottomed vessel x 6
ATS10141 Inerting caps SVL thread x 6
ATS10186 Stir bars 25 x 14 mm Eliptical shape x 6
ATS10097 Stir bars 15 x10 mm Eliptical shape x 6
ATS10116 RefluxInerting block
ATS10112 OS6000 Series cooling plug
ATS10063 Temperature probe PT100
ATS10170 Dropping funnel ( 50 ml ) x 1
