Homogeniser SHM1 & SHM2 Stuart

Handheld Homogeniser - SHM1 Stuart

Ergonomic design

Variable motor speed 5,000 to 35,000 rpm

Processing range from 0.03 ml-100 ml

Can be used with robust polycarbonate disposable probes or stainless steel ones

The Stuart® SHM1 is a powerful, variable speed, homogeniser. The high-speed, high-torque motor makes the unit ideal for most homogenising applications. During operation the rotor shaft, which is directly coupled to the motor, spins at up to 35,000 rpm. The tube assembly that fits around the shaft remains static and as the rotor shaft spins, within the tube assembly, it creates a pumping action drawing the sample into the open end of the tube,  or probe, and forcing it through the windows at the bottom of the tube assembly. This shearing action reduces the particle size of the sample. In addition the speed differential between the rapidly moving rotor, and the static tube assembly creates cavitational force, further dismantling the sample to additionally reduce particle size.

The SHM1 is lightweight making it comfortable to use, and most samples can be processed within thirty seconds. For longer processing the unit can be stand mounted using the included post clamp assembly. A retort stand is available separately.

The SHM1 can accommodate a selection of stainless steel probes for larger and tougher samples and also our polycarbonate disposable probes. Disposable probes are suitable for hard tissues and ideal where cross contamination is of concern. If necessary disposable probes can be easily dismantled and autoclaved up to seven times. Through careful selection of probe type, samples of 0.03 ml to 100 ml can be processed.

All Stuart® homogenisers are supplied with a tool kit for dismantling the rotor probes for easy cleaning.

Specifications

Motor

125 watt

Speed Control

5,000 to 35,000 rpm

Processing Range

0.03 ml to 100 ml

Sound level

<72 dB

Net Weight, kg

0.5

Dimensions, mm ( h x ø )

160 x 55

Electrical supply

220-240,50 Hz

IP Rating

30

Order Information

Model

Description

SHM1/UK

Handheld homogeniser, UK plug

SHM1/EURO

Handheld homogeniser, European plug

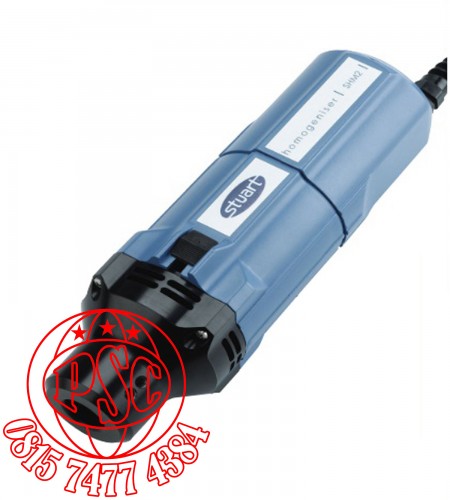

Laboratory Homogeniser - SHM2

Can be handheld or stand mounted

Variable motor speed 5,000 to 28,000 rpm

Processing range from 0.0 3 ml-2 L

Powerful 700 watt motor

The Stuart® SHM2 with its 700 watt motor is incredibly powerful and versatile. The unit can handle virtually any processing application making it ideal for all homogenising applications such as tissue homogenisation, cell disruption, emulsions, suspensions and protein extraction and with the powerful motor especially suitable for tougher samples and larger volumes. The SHM2 can either be handheld for quick processes or securely stand mounted with a direct connection to the SHM/STAND.

The SHM2 can accommodate a selection of stainless steel probes for larger and tougher samples and also our polycarbonate disposable probes. Disposable probes are suitable for hard tissues and ideal where cross contamination is of concern. If necessary disposable probes can be easily dismantled and autoclaved up to seven times.

Through careful selection of probe type samples of 0.03 ml to 2 L can be processed.

All Stuart® homogenisers are supplied with a tool kit for dismantling the rotor stator generator probes for easy cleaning

Specifications

Motor

700 watt

Speed control

5,000 to 28,000 rpm

Processing range

0.03 ml to 2 L

Sound level

<72 dB

Net Weight, kg

1.6

Dimensions ( h x ø )

220 x 70

Electrical supply

220/240V, 50 Hz

IP Rating

30

Order Information

Model

Description

SHM2/UK

Laboratory homogeniser, UK plug

SHM2/EURO

Laboratory homogeniser, European plug
