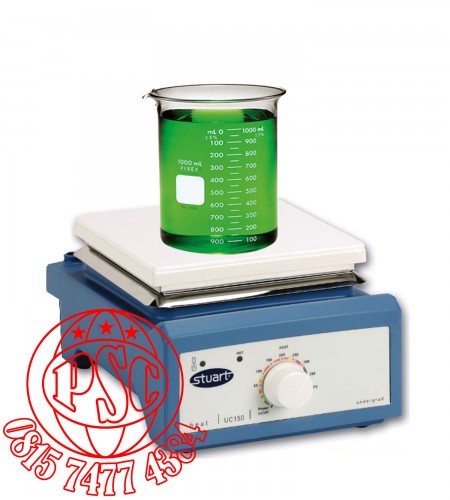

Hotplate UC150 & US150 Stuart

Hotplate UC150 and US150 Stuart

Choice of top plate :

- Robust coated aluminium

- Chemically resistant ceramic

Flashing "Hot" warning light, mains independent

Accurate temperature control with LED setting scale

Compact space saving design

Stylish and economical general purpose hotplate designed with safety as well as performance in mind. The compact shape takes up less bench space and makes storage easier. The hotplate has microprocessor control and an innovative LED based true °C temperature setting system rather than simply a 1 to 10 arbitrary scale. The unit can also be used in conjunction with the SCT1 digital temperature controller to accurately control sample temperature rather than plate temperature.

The "Hot" warning light will flash whenever the plate temperature is above 50°C even when the hotplate is turned off and unplugged from the mains.

Model UC150 has a glass ceramic top which has excellent chemical resistance. The surface is easy to clean and allows high plate temperatures for faster heating.

Model US150 has a robust aluminium/silicon alloy top plate for excellent heat transmission. The top plate has a thin ceramic coating for added chemical resistance. A 700W element gives rapid heating and ensures even temperature distribution across the whole surface of the plate.

Both models have an integral fitting for a retort rod and the bottom is shaped to allow a retort base to slide underneath the unit if required so saving further bench space.

Technical Specification

Model

US150

UC150

Plate Material

Coated AluminiumSilicon

Glass ceramic

Plate Dimensions, mm

150 x 150

150 x 150

Heated Area, mm

150 x 150

120 x 120

Heater Power, Watt

700

500

Max plate temp, °:C

325

450

Contact thermometer socket

Yes

Yes

Dimensions ( w x d x h ), mm

172 x 248 x 120

172 x 248 x 122

Net weight, kg

2.2

2.2

Electrical supply

230 V, 50-60 Hz, 700 W

230 V, 50-60 Hz, 500 W

IP Rating

32

32
