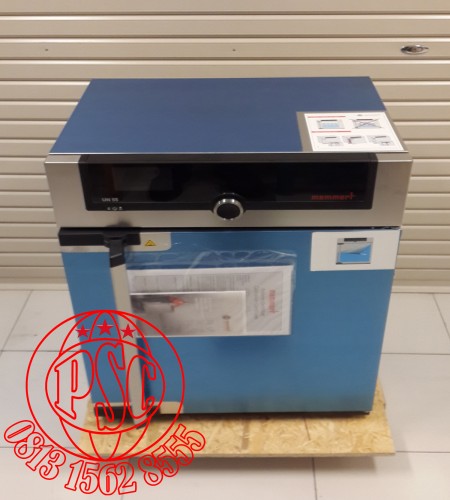

Ovens UN30Plus, UN55Plus, UN75Plus & UN110Plus Memmert

Update Terakhir
02-12-2019
Minimum Pembelian
1 Unit
Dilihat Sebanyak
713 kali
Lokasi
DKI Jakarta - Jakarta Barat - Taman Sari
Harga
Rp. 1
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi Ovens UN30Plus, UN55Plus, UN75Plus & UN110Plus Memmert

Ovens UN30Plus, UN55Plus, UN75Plus & UN110Plus Memmert
Control of standard components
ControlCOCKPIT                            : adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays
Temperature : 2 Pt100 sensors Class A in 4-wire-circuit, mutually monitoring and taking over the performance at the same temperature value
Timer                                              : Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
Temperature
Set temperature range in °C : min. 5°C above ambient up to +300°C
  : resolution of display for setpoint values 0.1°C up to 99.9°C, 0.5°C from 100°C and for actual values 0.1°C (LED)
Control technology
adjustable parameters                  : temperature (Celsius or Fahrenheit), air flap position, programme time, time zones, summertime/wintertime
Function SetpointWAIT                : the process time does not start until the set temperature is reached
Language setting                          : German/English/Spanish/French
Calibration                                      : three freely selectable temperature values
Ventilation
natural convection
Fresh air admixture                      : adjustment of pre-heated fresh air admixture by air flap control in 10 % steps for each segment individually
Vent                                                : vent connection with restrictor flap
Communication
Programming : AtmoConTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port
documentation                            : programme stored in case of power failure
Safety
Alarm                                              : visual and acoustic
Temperature control                      : overtemperature monitor TWW, protection class 3.1 or adjustable temperature limiter TWB, protection class 2, selectable on display
AutoSAFETY : additionally integrated over- and undertemperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature
Temperature control                      : mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature
Autodiagnostic system                : for fault analysis
Standard equipment
Door                                                : fully insulated stainless steel door with2-point locking ( compression door lock )
Internals                                          : 1 stainless steel grid
Scope of delivery                          : incl. works calibration certificate for +160°C
Housing                                          : rear zinc-plated steel
Interior : easy-to-clean interior,made of stainless steel,reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
Oven UN30 Plus
Stainless steel interior
Dimensions W x H x D in mm : w(A) x h(B) x d(C): 400 x 320 x 250 mm
Volume                                            : 32 Liter
Max. loading of chamber : 60 kg
Textured stainless steel casing : w(D)   x h(E) x d(F): 585 x 704 x 434 mm
Electrical data
Voltage : 230 V, 50/60 Hz
Electrical load : approx. 1600 W
Voltage : 115 V, 50/60 Hz
Electrical load : approx. 1600 W
Dimensions approx incl. carton : B x H x T: 660 x 890 x 650 mm
Gross weight carton                      : approx. 61 kg
Oven UN55 Plus
Stainless steel interior
Max. loading of chamber : 80 kg
Dimensions W x H x D in mm : w(A) x h(B) x d(C): 400 x 400 x 330 mm
Volume : 53 Liter
Textured stainless steel casing : w(D) x h(E) x d(F): 585 x 784 x 514 mm
Electrical data
Voltage : 230 V, 50/60 Hz
Electrical load : approx. 2000 W
Voltage : 115 V, 50/60 Hz
Electrical load : approx. 1700 W
Dimensions approx incl. carton : B x H x T: 730 x 950 x 670 mm
Net weight : approx. 57 kg
Gross weight carton : approx. 76 kg
Oven UN75 Plus
Stainless steel interior
Max. loading of chamber : 120 kg
Dimensions W x H x D in mm : w(A) x h(B) x d(C): 400 x 560 x 330 mm
Volume : 74 Liter
Textured stainless steel casing : w(D) x h(E) x d(F): 585 x 944 x 514 mm
Electrical data
Voltage : 230 V, 50/60 Hz
Electrical load : approx. 2500 W
Voltage : 115 V, 50/60 Hz
Electrical load : approx. 1800 W
Dimensions approx incl. carton : B x H x T: 730 x 1130 x 670 mm
Net weight : approx. 66 kg
Gross weight carton : approx. 85 kg
Oven UN110 Plus
Stainless steel interior
Max. loading of chamber : 175 kg
Dimensions W x H x D in mm : w(A) x h(B) x d(C): 560 x 480 x 400 mm
Volume : 108 l
Textured stainless steel casing : w(D) x h(E) x d(F): 745 x 864 x 584 mm
Electrical data
Voltage : 230 V, 50/60 Hz
Electrical load : approx. 2800 W
Voltage : 115 V, 50/60 Hz
Electrical load : approx. 1800 W
Dimensions approx incl. carton : B x H x T: 830 x 1050 x 800 mm
Net weight : approx. 74 kg
Gross weight carton : approx. 99 kg
