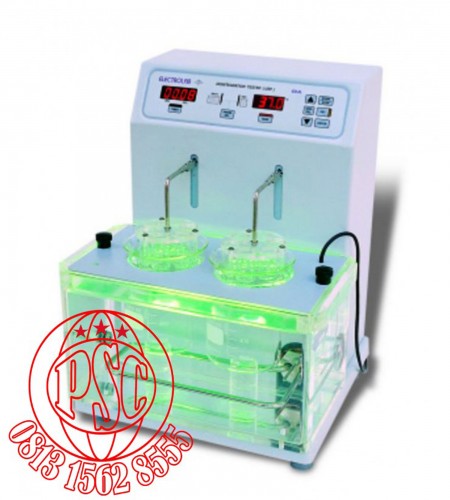

Disintegration Tester ED-2L Electrolab

Disintegration Tester ED-2L Electrolab

Specification

Models

ED-2L

ED-2AL

ED-2 SAPO

ED-3PO

ED-4AL

ED-6AL

No. of stations

2

2

2

3

4

6

Water bath

6 mm thick transparent acrylic

Clear acrylic moulded water bath

6 mm thick transparent acrylic

No. of strokes

30 + 0.5 strokes/min

Stroke height

55 mm ± 2 mm

Controlled temp. range

20 ⁰C to 39.9 ⁰C

15 ⁰C to 40 ⁰C

20 ⁰C to 39.9 ⁰C

Temp. resolution

0.1 ⁰C

Timer

Range 1- 1 sec. to 99 min. & 59 sec. Range 2 - 1 min. to 9 hrs & 59 min

Range-1 sec to 23 hrs 59 min. 59 sec. ( for both baskets )

Range 1- 1 sec. to 99 min. & 59 sec. Range 2 - 1 min. to 9 hrs & 59 min

Display

4 digit led

20 x 4 LCD

4 digit led

Printer interface

-

Centronics

-

-

Parallel port

PC connectivity

-

-

LAN

-

-

No. of motors

1

2

2

3

2

2

Motor type

DC stepper motor of 6V DC and 3.5 kg cm torque

DC stepper motor of 6V DC and 10 kg cm torque

DC stepper motor of 6V DC and 3.5 kg cm torque

Heater

300 watts, S.S. 304

400 watts, S.S. 304

750 watts, S.S. 304

1kv

Illumination

Green Tube

White LED

Green Tube

Light

Light

Stirrer motor

-

DC 6V

-

Water level sensor

-

Float switch type level sensor

-

Power supply

220/230 VAC, 50/60 Hz, 690

220/230 VAC, 50/60 Hz, 575

220/230 VAC, 50/60 Hz,

VA 110VAC, 50/60Hz,660VA

VA 110 VAC, 50/60Hz,550VA

1380 VA

Dimensions

400 x 365 x 510 mm

450 x 360 x 575 mm

600 x 360 x 575 mm

995 x 345 x 501 mm

( Lx W x H )

Weight

23 kg

23 kg

25 kg

39 kg

43 kg

50 kg
