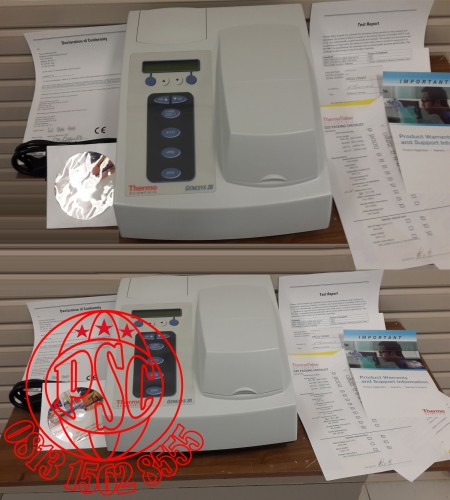

Genesys 20 Visible Spectrophotometer Thermolyne
Perhatian!
Spesifikasi Genesys 20 Visible Spectrophotometer Thermolyne
|
Genesys 20 Visible Spectrophotometer Thermolyne Description |
|
|
Multiple purpose capabilities allow you to measure a wide range of analytes. |
|
|
Precise and Reliable |
|
|
Compact footprint provides a space-saving, convenient system‚ Intuitive keyboard with integrated controls and LCD display |
|
|
Routine measurements require just a few keystrokes |
|
|
Direct measurement of routine absorbance or transmittance data |
|
|
Concentration mode for single point standard or factor-based quantitative analysis |
|
|
Optional holders for test tubes and long path cells to 50mm |
|
|
User-selectable choice of five languages ( English, French, German, Spanish, Italian ) |
|
|
Bidirectional RS-232-C interface |
|
|
Low Cost of Ownership |
|
|
Cleanable, chemical-resistant surfaces and rugged design withstands harsh laboratory environments |
|
|
Few moving parts; virtually maintenance-free operation |
|
|
Choose instrument with or without integral printer |
|
|
GENESYS 20 Specifications |
|
|
Part Number 4001 & 4004 Series |
|
|
Optical Design |
Single beam |
|
Spectral Bandwidth |
≤8 nm |
|
Light Source |
Tungsten-Halogen |
|
( Typical Service Life ) |
( 1000 hours ) |
|
Detector |
Silicon Photodiode |
|
Wavelength |
325 to 1100 nm |
|
Range |
|
|
Accuracy |
±2.0 nm |
|
Photometric |
-0.1–2.5 A; 0–125 %T, 0–1999C |
|
Range |
|
|
Readout |
Absorbance, % Transmittance, Concentration |
|
Accuracy |
±0.003 A from 0.0 to 0.3A |
|
|
1.0 % from 0.301A to 2.5A, NIST 930D filters |
|
Noise |
≤0.001 A at 0A |
|
|
≤0.004 A at 2A, 500 nm |
|
Drift |
0.003 A /hour |
|
Stray Light |
<0.1 %T at 340 nm and 400 nm |
|
Display |
20-character, 2-line LCD |
|
Keypad |
Sealed Membrane Keypad |
|
Standard Interfaces |
RS-232C and Centronics ports |
|
Languages |
Software, printouts and operator’s manual: English, French, German, Spanish, Italian ( user selectable ) |
|
Power Requirements |
Selected automatically; 100–240 Volts |
|
Dimensions |
30 cm W x 33 cm D x 19 cm H |
|
( 12" W x 13" D x 7" H ) |
|
|
Weight |
4.5 kg (10 lbs) |
|
Warranty |
1 Year |
|
Ordering Information |
|
|
Description |
Part Number |
|
GENESYS 20, 120 V ( US line cord ) |
4001-000 |
|
GENESYS 20 with Printer,120 V ( US line cord ) |
4004-000 |
|
GENESYS 20, 240 V ( Euro CE line cord ) |
4001-03 |
|
GENESYS 20 with Printer,240 V ( Euro CE line cord ) |
4004-03 |
|
GENESYS 20, 240 V ( UK CE line cord ) |
4001-04 |
|
GENESYS 20 with Printer, 240 V ( UK CE line cord ) |
4004-04 |
|
Optional Software and Accessories |
|
|
Application Software |
|
|
Part Number VISIonlite 5 |
834-0913 00 |
|
EnzLab Enzymatic Food Analysis Software |
869-131500 |
|
|
|
|
Sample Holders |
Part Number |
|
Single Cell Holder |
4010-000 |
|
Test Tube/COD Vial Holder |
4014-000 |
|
Rectangular Cell Holder ( up to 50 mm ) |
4012-000 |
|
Cylindrical Cell Holder ( up to 50 mm ) |
4011-000 |
|
1" Test Tube Holder ( 1" pathlength up to 104 mm tall ) |
4015-000 |
|
Solid Sample Holder ( up to 8 mm thick ) |
4028-000 |
|
Miscellaneous |
Part Number |
|
Serial RS232C Cable for PC Connection |
335942-000 |
|
Absorption Spectroscopy Wall Chart ( 24" x 36" ) |
269-268100 |
