UV-VIS-NIR-SWIR Spectroradiometers PSR+3500 Spectral

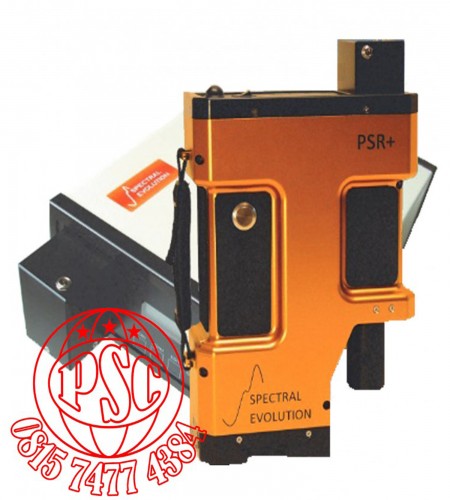

Portable UV-VIS-NIR-SWIR Spectroradiometers PSR+3500 Spectral Evolution

Our field portable, remote sensing units offer the following advanced features :

100% linear photodiode array platform- with InGaAs and silicon detectors for best resolution and sensitivity @ 350-2500nm ranges

Fast, full spectrum UV-VIS-NIR measurements with one-touch operation- autoexposure & auto dark current shutter

Diffraction grating / beam splitter optics- no moving gratings or trifurcated fiber optics to break in the field

No internal fiber optics- allows maximum sensitivity and S/N ratio with higher performance direct FOV lens optics

Industry standard optional SMA fiber optic connection for easy interchangeability

Lightweight ( <7 lbs with slide-in LiIon rechargeable battery ) and easy to carry

Bluetooth interface for wireless operation

Features unique to SPECTRAL EVOLUTION Portables include :

Li-Ion slide-in rechargeable batteries ( 2 provided ) with separate external charger for continuous, uninterrupted use

Software for both Windows-based laptops and bluetooth-compatible personal digital assistant (PDA) for maximum flexibility

Membrane control panel for stand-alone operation without a computer (includes flash memory to hold 1000 scans)

Snap-on battery-operated cooling fan option for stable performance in extreme high-temperature conditions

Nylon carrying strap with sturdy, reinforced eyelets for added security

Laser guide to aid in target sighting with foreoptics (spectroradiometers only)

Tripod mounting holes

Specifications

Model

PSR+ 3500

PSR-2500

Spectral Range

350–2500 nm

350–2500 nm

Spectral Resolution

3 nm ( @700 nm )

3.5 nm ( @700 nm )

8 nm @ 1500 nm

22 nm @ 1500 nm

6 nm @ 2100 nm

22 nm @ 2100 nm

Sampling Interval

Data output in 1nm increments;

Data output in 1nm increments;

2151 channels reported

2151 channels reported

Si Photodiode Detector

512 element Si array

512 element Si array

( 350–1000 nm )

( 350–1000 nm )

InGaAs Photodiode

256 element extended wave- length array ( 970–1910 nm )

256 element extended wave- length array ( 970–2500 nm )

Detectors TE-cooled

256 element extended wavelength array ( 1900-2500 nm )

FOV Options

4°, 8°, or 14° lens,

4°, 8°, or 14° lens,

25° fiber optic, diffuser,

25° fiber optic, diffuser,

integrating sphere

integrating sphere

Noise Equivalence Radiance

≤0.5x10-9 W/cm2/nm/sr @400 nm

≤0.8x10-9 W/cm2/nm/sr @400 nm

( 4° lens )

≤0.8x10-9 W/cm2/nm/sr @1500 nm

≤1.5x10-9 W/cm2/nm/sr @1500 nm

≤1.0x10-9 W/cm2/nm/sr @2100 nm

≤1.8x10-9 W/cm2/nm/sr @2100 nm

Max Radiance @ 700nm

1.5x10-4 W/cm2/nm/sr

1.5x10-4 W/cm2/nm/sr

( 4° lens )

Calibration Accuracy

±5 % @ 400 nm

±5 % @ 400 nm

( NIST Traceable )

±4 % @ 700 nm

±4 % @ 700 nm

±7% @ 2200 nm

±7% @ 2200 nm

Minimum Scan Speed

100 milliseconds

100 milliseconds

Wavelength Reproducibility

0.1 nm

0.1 nm

Wavelength Accuracy

±0.5 bandwidth

±0.5 bandwidth

Communications interface

USB or Class I Bluetooth–

USB or Class I Bluetooth–

laptop or PDA compatible

laptop or PDA compatible

Size

8.5” x 11.5” x 3.25”

8.5” x 11.5” x 3.25”

Tripod mounting

2 each ¼-20 mounting holes provided

2 each ¼-20 mounting holes provided

Weight

7.3 lbs

7.3 lbs

Batteries

Two lithium ion; 7.4 V

Two lithium ion; 7.4 V

Battery Operation

Removable battery; up to 4 hour operation/battery ( 2 provided )

Removable battery; up to 4 hour operation/battery ( 2 provided )

On board memory

Storage of 1000 spectra

Storage of 1000 spectra
