Visco Tester VT-06 Rion
Perhatian!
Spesifikasi Visco Tester VT-06 Rion
|
Rion VT-05/VT-06 Viscotester |
||
|

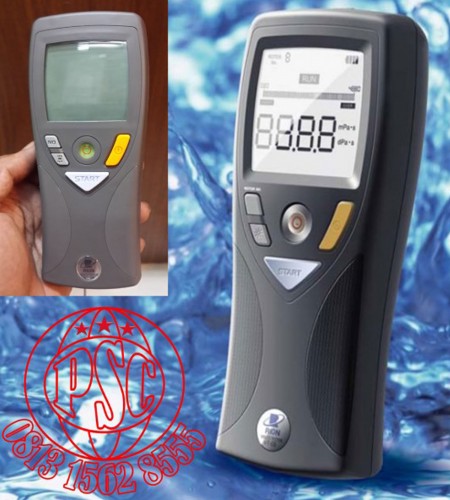

The Rion VT-05/VT-06 Viscotester provides a unique objective and cost-effective means of directly measuring the viscosity of liquids/fluids. The viscosity of many substances is of crucial importance yet, up to now, measurement of this quantity has often been achieved through indirect, complicated and/or expensive methods. Application areas include chemicals, paint, petrochemicals, adhesives and foodstuffs. |
||
|
The VT-05 ( for lower viscosity fluids ) and VT-06 ( for higher viscosity fluids) consist of a hand-held ( or it can be mounted on a stand) meter with an integral digital display with a rotor that is connected to the rear of the device. With the meter held ( approximately ) horizontally, the appropriate rotor is submerged in the fluid to be tested. The meter will then give a direct digital readout of the viscosity of the fluid in millipascal/decipascal seconds ( the SI unit for Viscosity ) |
||
|
The VT-05 can measure up to 300 mPas. The VT-06 can measure up to 4000 dPas. |
||
|
Examples of typical viscosity ( at 23 °c ) : |
||
|
Milk - 2.6 mPas; |
||
|
Olive Oil - 71 mPas; |
||
|
Tomato Ketchup - 43 dPas; |
||
|
Toothpaste - 320 dPas. |
||
|
A summary of features for the VT-05/VT-06 : |
||
|
Direct, objective and repeatable measurement of viscosity; |
||
|
Extremely simple operation |
||
|
Direct digital readout of viscosity in SI units |
||
|
Cost effective; |
||
|
Supplied with rotors and other accessories ready for immediate use |
||
|
VT-05 Measurement Range up to 300 mPas |
||
|
VT-06 Measurement Range up to 4000 dPas |
||
|
VT-05 Accuracy ± 5 % of measurement range |
||
|
VT-06 Accuracy ± 10 % or reading - reproducibility ± 5 % |
||
|
Lightweight ( 260 g without batteries ) |
||
|
Runs on 4 AA cells ( including nickel-hydride rechargeables ) |
||
|
Specifications |
VT-05 |
VT-06 |
|
Measurement range |
No. 4 rotor: 2 to 33 mPa.s |
No. 3 rotor: 0.3 to 13 dPa.s ( with No. 3 cup ) |
|
No. 5 rotor: 15 to 150 mPa.s |
No. 1 rotor: 3 to 150 dPa.s ( with JIS 300 mL beaker *1 ) |
|
|
No. 3 rotor: 50 to 300 mPa.s |
No. 2 rotor: 100 to 4000 dPa.s ( with JIS 300 mL beaker *1 ) |
|
|
Sample fluid capacity |
Approx. 460 mL ( with Cup A or Cup B ) |
No. 1 and No. 2 rotor ( with JIS 300 mL beaker*1 ) approx.300 mL |
|
No. 3 rotor ( with No. 3 cup ) approx. 170 mL |
||
|
Clearance between rotor end and cup bottom : about 15 mm |
||
|
Measurement accuracy |
Within ±5 % of max. measurement range for each rotor |
±10 % of indicated value, reproducibility ±5 % |
|
Rotor speed |
62.5 rpm |
|
|
Power supply |
IEC LR6 (size AA) alkaline batteries, nickel-hydride rechargeable batteries, AC adapter VA-05J |
|
|
Dimensions and Weight |
175 ( H ) × 77 ( W ) × 40 ( D ) mm ( without protruding parts ), Approx. 260 g ( without batteries ) |
|
|
Supplied accessories |
No. 3 rotor ( dia.45 × 47 × 160 mm ) SUS304 1 |
No. 1 rotor ( dia. 24 × 53 × 166 mm ) SUS304 1 |
|
No. 4 rotor ( dia.78 × 46 × 159 mm ) A1050 ( Alumite ) 1 |
No. 2 rotor ( dia. 15 × 1 × 113 mm ) SUS304 1 |
|
|
No. 5 rotor ( dia.61.2 × 36 ×149 mm ) A1050 ( Alumite ) 1 |
No. 3 rotor ( dia. 45 × 47 × 160 mm ) SUS304 1 |
|
|
Cup A ( dia. 92 × 76 mm, without hole ) A1050 ( Alumite ) 1 |
No. 3 rotor ( dia. 52.6 × 75 mm ) SUS304 1 |
|
|
Cup B ( dia. 92 × 76 mm, with hole ) A1050 ( Alumite ) 1 |
Extension rod ( 900 mm.300 X 3 ) 1 |
|
|
IEC LR6 ( size AA ) alkaline batteries 4 |
IEC LR6 ( size AA ) alkaline batteries 4 |
|
|
*1 JIS R 3503 : 1994, ø 78 X 103 ( H ) |
||
