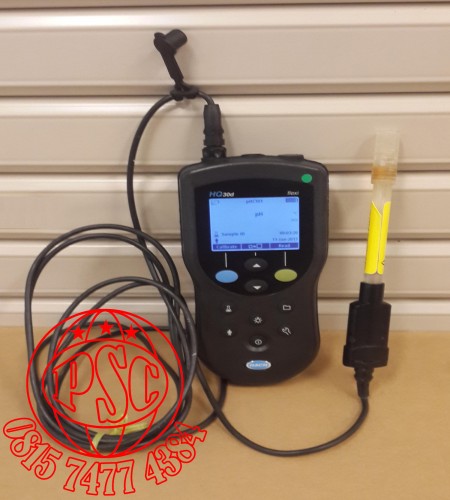

HQ30d Dissolved Oxygen Meter with LDO101 Hach
Perhatian!
Spesifikasi HQ30d Dissolved Oxygen Meter with LDO101 Hach
HQ30d Dissolved Oxygen Meter with LDO101 Hach |
|
Specification |
|
Barometric Pressure Measurement |
For automatic compensation of DO when using an LDO or LBOD probe |
BOD5/CBOD resolution |
Available when used with Hach WIMS BOD Manager software |
Calibration Curves Display |
Calibration summary data logged and displayed |
Calibration Intervals/alerts/Reminder |
2 hours to 7 days |
Compliance Certifications |
CE |
Conductivity Accuracy |
± 0.5 % from ( 1µS/cm - 200 mS/cm ) |
Conductivity measurement |
5 different stability modes |
Conductivity Measurement Range |
0.01 µS/cm to 200 mS/cm |
Conductivity resolution |
0.01 µS/cm with 2 digits |
Custom Calibration Standards |
User-defined standard sets |
Data Export |
Download via USB connection to PC or flash memory device. |
Automatically transfer entire data log or as readings are taken. |
|
Data Memory |
500 results |
Data Storage |
GLP/ISO compliant reading data stored with calibration details. |
Calibration details and check standard readings documented in data log. |
|
Automatically store in "press to read" mode and interval measurement mode. |
|
Manually store in "continous read" mode. |
|
Digital ( intelligent ) electrode inputs |
2 channel |
Dimensions ( H x W x D ) |
197 x 95 x 36 mm |
Display |
Display readings from one or two probes |
Simultaneous readings from two probes ( HQ440d only ) |
|
pH : pH, mV, temp. |
|
Conductivity : Conductivity, TDS, salinity, resistivity, temp. |
|
LDO : dissolved oxygen, pressure, temp. |
|
LBOD : dissolved oxygen, pressure, temp. |
|
ORP/Redox : mV, temp. |
|
Sodium : Sodium, mV, temp. |
|
Display Lock Function |
Continuous measurement or "press to read" mode available with averaging function for LDO measurement. |
Display Type |
240 x 160 pixel Display readings from one or two probes |
Simultaneous readings from two probes |
|
pH : pH, mV, temperature |
|
Conductivity : Conductivity, TDS, salinity, resistivity, temp. |
|
LDO : dissolved oxygen, pressure, temp. |
|
ORP/Redox : mV, temp. |
|
Sodium : Sodium, mV, temp. |
|
DO Measurement Range |
0.1 to 20 mg/L mg/L ( 0 to 200 % ) |
DO Resolution |
0.01 mg/L mg/L |
Fixed Buffer Selection |
IUPAC standards |
( DIN 19266 ) or Technical buffer ( DIN 19267 ) or 4-7-10 series or user defined |
|
Inputs |
1 |
Interface Languages |
13** |
Internal Data Storage |
500 |
IP Rating |
IP67 |
ISE Direct Measurement Range |
Yes |
ISE Electrode Calibration |
Electrode specific - see electrode user instructions |
Languages |
English, French, German, Italian, Spanish, Danish, Dutch, Polish, Portuguese, Turkish, Sweedsh, Czech, Russian |
Measure Range ORP |
-1500 to 1500 mV |
mV Accuracy |
± 0.1 mV |
mV Measure at Stable Reading |
5 ( auto ) stabilization settings |
mV Measurement Range |
-1500 to 1500 mV |
mV Resolution |
0.1 mV |
Operating Error Messages |
Text messages displayed |
Operating Humidity |
90 % relative humidity ( non-condensing ) |
Operating Interface |
Keypad |
Operating Temperature |
5 to 45 °C |
ORP Electrode Calibration |
Predefined ORP standards ( including Zobell's solution ) |
Parameter |
pH, mV, ISE, DO, Conductivity, TDS, Salinity, Resistivity, ORP, Temp |
pH Accuracy |
± |
pH Electrode calibration |
0.002 |
pH Measurement |
0 to 14 pH |
pH Measure at stable reading |
5 stabilization settings |
pH Resolution |
Selectable between 0.001 to 0.1 pH |
Printer |
Optional accessory |
Probe Type |
Standard |
Resolution |
0.1/ 0.01/ 0.001 |
Salinity Resolution |
0.01 ppt |
Sample Temperature |
2 channels |
Sodium resolution |
0.001 mg/L ( ppm ) |
Temp Compensation |
Off, automatic, and manual ( auto correction is parameter dependent ) |
Off, automatic, and manual ( auto correction is parameter dependent ) |
|
Warranty |
1 year |
Weight |
0.71 lbs. ( 0.323 kg ) |
