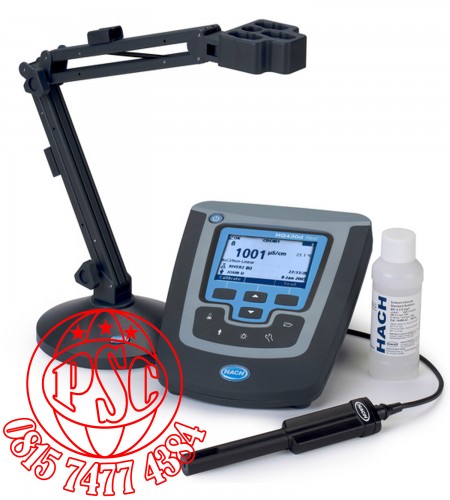

HQ440D Laboratory Dual Input, Multi-Parameter Meter Hach
Perhatian!
Spesifikasi HQ440D Laboratory Dual Input, Multi-Parameter Meter Hach
HQ440D Laboratory Dual Input, Multi-Parameter Meter - pH, Conductivity, Optical Dissolved Oxygen, ORP, and ISE Hach |
|
Specifications |
|
Automatic Buffer Recognition |
Yes |
Barometric Pressure Measurement |
Automatic compensation of DO when using an LDO or LBOD probe |
Calibration |
Demal ( 1D/ 0.1D/ 0.01D ); |
Molar ( 0.1 M/ 0.01 M/0.001 M ); |
|
NaCl ( 0.05 %; 25 µS/cm; 1000 µS/cm; 18mS/cm ); |
|
Standard sea water; |
|
User defined |
|
Calibration Intervals/alerts/Reminder |
Off, Selectable from 2 hours to 7 days |
Communication |
Integrated USB type A ( for USB 2.0 flash memory device, printer, keyboard ) & Integrated USB type B ( for PC ) |
Compliance Certifications |
CE.WEEE |
Conductivity measurement |
Yes |
Conductivity measurement |
Temperature correction:None; Linear; NaCl Non-Linear Natural Water. |
Conductivity Measurement Range |
0.01 µS/cm - 0.1 mS/cm upon selected measuring range |
Conductivity resolution |
0.01 µS/cm - 200.0 mS/cm |
Contents |
Meter Only |
Custom Calibration Standards |
Yes |
Data Export |
Download via USB connection to PC or flash memory device. Automatically transfer entire data log or as readings are taken. |
Data Memory |
500 records/FIFO |
Data Storage |
Automatic, GLP ISO compliant reading data stored with calibration details. |
Dimensions |
859 x 175 x 235 mm ( 3.38 x 6.88 x 9.25 in.) |
Display |
Detailed mode/Large mode |
Display Lock Function |
Continuous / Auto-stabilization ( "press to read" ) / At Interval |
Display Type |
440 x 160 pixel LCD with backlight illumination |
DO Measurement Range |
0.1 - 20.0 mg/L ( ppm ) 1 – 200 % saturation |
DO Resolution |
0.1 |
DO sensor calibration |
• 100 % (water-saturated air ( 100 % ) calibration |
• 100 % with 0 ( water-saturated air ( 100 % ) calibration with 0 point |
|
• mg/L ( calibration with a specified dissolved oxygen concentration ( mg/L ) solution ) |
|
• mg/L with 0 ( calibration with a specified dissolved oxygen concentration ( mg/L ) solution with 0 point ) |
|
• Factory ( calibration with the default LDO calibration ) |
|
Electrode stand |
Optional |
GLP Features |
Date; Time; Sample ID; Operator ID |
Instrument |
Bench |
IP Rating |
IP54 ( Resistant to spray of water; Dust-proof ) |
ISE Direct Measurement Range |
Yes |
ISE Electrode Calibration |
2 - 5 points |
Languages |
English, French, German, Italian, Spanish, Danish, Dutch, Polish, Portuguese, Turkish, Swedish, Czech, Russian |
Measurement Method |
Probe specific programmed method settings |
Model |
HQ440D – Multi/2 Channels |
mV Measurement at Stable Reading |
Yes |
mV Measurement Range |
-1500 - 1500 mV |
mV Resolution |
0.1 mV |
Operating Error Messages |
Clear text error messages displayed |
Operating Humidity |
90 % relative humidity ( non-condensing ) |
Operating Interface |
Soft Touch Keypad |
Operating Temperature |
0 - +60 °C ( 32 - 140 °F ) |
ORP Electrode Calibration |
Predefined ORP standards ( including Zobell's solution ) |
Parameter |
pH/Oxydo Reduction Potential ( ORP ) |
Conductivity/Total Dissolved Solid ( TDS )/Salinity/Resistivity |
|
Dissolved Oxygen ( DO ) |
|
Biochemical Oxygen Demand ( BOD ) |
|
Ion Selective Electrode ( ISE ) |
Ammonia, Ammonium, Chloride, Fluoride, Nitrate, Sodium |
PC Data Transfer Software |
HQd Series Meter Data Transfer Utility |
pH Buffer Sets |
Color-coded: 4.01, 7.00, 10.01 pH; |
IUPAC: 1.679, 4.005, 7.000, 10.012, 12.45 pH |
|
DIN: 1.09, 4.65, 9.23 pH |
|
User-defined custom buffer sets |
|
pH Electrode calibration |
1 - 3 Calibration points |
Calibration summary data logged and displayed |
|
pH Measurement Range |
0 - 14 pH |
pH Resolution |
Selectable : |
0.001/0.01/0.1 pH |
|
Printer |
Yes, Optional |
Probes included |
None |
Resistivity Measurement |
2.5 Ω.cm - 49 MΩ.cm |
Resistivity Resolution |
0.1 |
Salinity Measurement Range |
0 - 42 ( ppt ) ( ‰ ) |
Salinity Resolution |
0.01 ( ppt ) ( ‰ ) |
Simultaneous measurements |
Yes |
TDS Measurement Range |
0.00 mg/L - 50.0 g/L as NaCl |
TDS Resolution |
0.01 mg/L - 0.1 g/L upon measuring range. |
Temperature Compensation |
Automatic Temperature compensation for pH |
Temperature Measurement |
°C or °F |
Temperature Range |
-10 °C - 110 °C |
Temperature Resolution |
0.1 |
Warranty |
1 year |
Weight |
750 g (1.65 lb ) without batterie; 850 g ( 1.87 lb ) with batteries |
