Kofloc Simplified Flexible Flow Meter Model RK 1100 Series
Perhatian!
Spesifikasi Kofloc Simplified Flexible Flow Meter Model RK 1100 Series
MODEL RK 1100 SERIES
The flexible flow meter is designed to permit easy disassembly, cleaning, and reassembly. It is ideal for equipment that must be disassembled for maintenance. Users can change the flow meter tube only without changing the block.
Features
- Easy disassembly and reassembly It can be disassembled just with a screwdriver and wrench. This flow meter is ideal when frequent cleaning or tube change is required.
- Sophisticated design Equipped with many shaped component parts and an alumite body with a satin finish, the product has a sophisticated design.
- High-precision flow meter A high-precision flow meter tube equivalent to that used in the precision flow meter RK1450 is used.

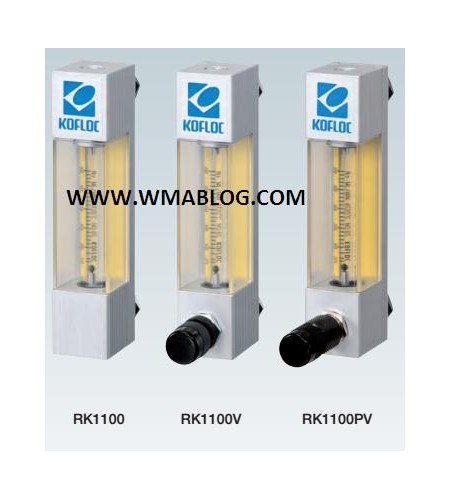

- Models (1100V and 1100VP) equipped with a valve are also available. The models with a needle valve come in two types – a precision needle valve type 1100PV and a simplified needle valve type 1100V.
Applications
-In combination with various measuring instruments
-Measurement of pipe lines
-Compressors
-Semiconductor related equipmen
Standard Specifications
- Fluids : Air,N2,O2,H2,He,Ar,and CO2 (Calibration by actual gas) For other gases,consultation is necessary regarding whether conversion conditions or calibration by actual gas is to be used.
- Flow range(Full scale) : * RK1100,RK1100PV : 10ML/MIN-20L/MIN
*RK1100V : 1L/MIN-20L/MIN
- Accuracy : FS±5%(Measurement point)
- Proof pressure :0.5MPa
- Available scale : 10:1
- Body block and some other components : *S : SUS304; SUS303
*Al : Al
- Tapered tube : S & Al : Pyrex®, glass
- Packing : *S : FKM
* Al : NBR
- Float : * S & Al : Pyrex,SUS316, glass
- Protective cover : * S & Al : Acrylic resin
- (Temperature resistance) : * S & Al : MAX60°
- Connection : * S & Al : Rc1/4(Standard), Rc1/8(Optional)
