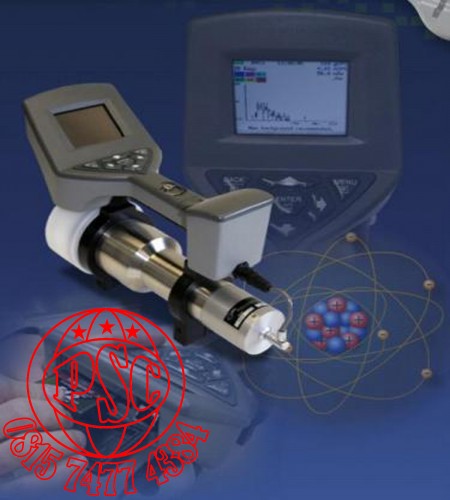

Radioactive Isotope Identification SAM 940 BNC
Perhatian!
Spesifikasi Radioactive Isotope Identification SAM 940 BNC
|
Radioactive Isotope Identification SAM 940 BNC |
|
|
Features |
Applications |
|
SAM 940 Videos |
Emergency Response |
|
Industry Leading Spectral Resolution |
Law Enforcement |
|
No Warm Up or Waiting Period |
Homeland Security |
|
One Hand / One Glove Operation |
Undercover Surveillance |
|
Network Ready with ANSI N42.42 Data Transmission |
HAZMAT |
|
Search and Confirm with One Instrument |
Industrial |
|
COTS Batteries for Rapid Deployment |
Medical |
|
Highest Sensitivity and Response in Real Time |
Radiation Safety |
|
Operates Accurately in High Background |
Passenger and Freight Monitoring |
|
Auto Calibration and Stabilization with NORM |
Non-proliferation Enforcement |
|
Cambio or Peak Easy Compatible |
Health Physics |
|
Ships with ANSI-Viewer Software |
Food, Water & Public Health Monitoring |
|
DOE Reachback Ready, JAC Ready |
Environmental Waste Monitoring |
|
Unattended/Remote Monitoring |
|
|
Specifications |
|
|
Detector |
Nal Lil, or optional CeBr |
|
Integrated Electronics |
Digital signal-processing MCA |
|
Energy Range |
18 keV - 3 meV |
|
Controller I/O |
10/100 Ethernet port and CompactFlash reader with USB adaptor |
|
Power |
8 standard AA batteries |
|
Weight |
4.5 lbs with 2" x 2" Nal detector and batteries |
|
Dimensions |
12"L x 4"H x 5"W ( excluding detector ) |
|
Water/Dust Resistance |
IP56 |
|
Temperature Range |
-20 to 50 °C |
|
Controls |
7-key custom keypad with one-thumb operation |
|
Alarm |
Visual (On screen) and Audio ( internal speaker or optional headphones ) |
|
Detachable Detectors |
2"x2" or 3"x3" Nal Detector options, with or without Neutron detector |
|
Integral HV bias supply and optional CeBr detector |
|
|
Patented Technology |
Quadratic Compression Conversion ( QCC ) allows for identification of mixed isotopes in one second |
|
Hysteresis |
Provides 97 % ID confidence level in 2 seconds |
|
Optional Modules |
Serial GPS receiver for specrtal report mapping, wireless communication |
|
ADC : |
Type: base Converter 14-bit pipelined-flash |
|
Conv. Modes: Linear 256, 512, 1024 |
|
|
QCC 256, 512 ( U.S. Patent 5,608,222 ) |
|
|
Calibration |
Automatic Stabilization with temperature |
|
Customization |
Modifications of isotopes and their associated energy lines, either in the field or using Microsoft Excel |
|
Essentially no limit to number of isotopes or lines |
|
|
Sound and language preference can be changes |
|
|
Library |
Standard N42.34 ANSI isotopes, ITRAP, IAEA list, medical, industrial, SNM, or user-defined lists |
|
Functions |
Nuclide identification, spectrum analysis, dose rate calculation (rem/Sv), total dose, audible search tool, data logging |
|
Options |
|
|
SAM 940 Systems |
Product Descriptions |
|
Model 940-C |
SAM 940 w/o detector/CF Card/Acces. |
|
Model 940-2-G |
SAM 940 w/ ext. 2.0"x2.0" det., Eagle OS, Quantum NaI, ANSIview |
|
Model 940-2-GN |
SAM 940 w/ Neutron, ext. 2.0"x2.0", Eagle OS |
|
Model 940-2-GH |
SAM 940 w/ 3He Neutron, ext. 2.0"x2.0", Eagle OS |
|
Model 940-3-G |
SAM 940 w/ ext. 3.0"x3.0" det., Eagle OS |
|
Model 940-3-GN |
SAM 940 w/ Neutron, ext. 3.0"x3.0", Eagle OS |
|
Model 940-3-GH |
SAM 940 w/ 3He Neutron, ext. 3.0"x3.0", Eagle OS |
|
Model 940-2GN-1 |
SAM 940 with Custom GUI, Gamma/Neutron Detector, Eagle OS |
|
Model 940-2C |
SAM 940 w/ CeBr Detector, 1.5"x1.5", Eaglo OS |
|
Model 970 Custom |
2" x 2" NaI Stationary SAM Monitor, Portal or Wall Mount, with Reachback, 1 Second Relay, Identification, GUI - Call for quote and design specs |
