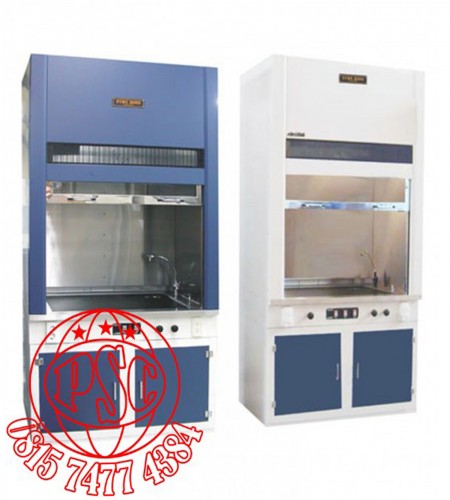

FumeHood +Scrubber LFH Daihan Labtech
Perhatian!
Spesifikasi FumeHood +Scrubber LFH Daihan Labtech
|
FumeHood + Scrubber Daihan Labtech |
||||
|
Features |
||||
|
▪ Built-in Sirocco Fan on the Top compact designed centrifugal suction and blower |
||||
|
▪ Microprocessor Digital Controller Automatic compensated Air Velocity control and low air velocity alarm system and temperature monitor at working for data logging |
||||
|
▪ Air Leak Proof Cabinet Structure with high clean stainless steel interior work station and epoxy powder coated steel exterior for long durability |
||||
|
▪ Inflow Air Velocity Control range 0.3 m/s to 1.0 mzs |
||||
|
▪ Tempered Safety GlassSliding Door for maintain high quality cleanliness and for clear view operated by counter balanced weight |
||||
|
▪ Mechanical Design Structure High durable and sturdy base cabinet and Fume Cupboard |
||||
|
▪ Low Noise Level and Vibration Free 56-60 dB high effiCiency sirocco fan blower |
||||
|
Design and Performance are conform to International Standard : |
||||
|
• SEFA1-2002 |
||||
|
• ASHRAE 110-95 |
||||
|
• AS2243-8 |
||||
|
• EN 14175 |
||||
|
• BS 7258 |
||||
|
Material Selection Guide |
||||
|
▪ WorkTop |
||||
|
1. Synthetic ceramic work top as standard |
||||
|
2. Stainless steel top 304 or 316 as optional |
||||
|
3. Epoxy resin top, Heavy duty as optional |
||||
|
4. Trespa phenolic IVOrk top as optional |
||||
|
▪ Sink |
||||
|
1. PP or PVC Round type |
||||
|
2. PP or Stainless steel Rectangular Type |
||||
|
▪ Exterior Structure |
||||
|
1. Epoxy powder coated EGJ |
||||
|
2. Hair-lined stainless steel 430 or 304 as optional |
||||
|
▪ SashGlass |
||||
|
1. Tempered safety glass t : 5 mm |
||||
|
2. Tempered safety glass with laminated t : 6 mm |
||||
|
▪ Interior Structure |
||||
|
1. Hair-lined stainless steel 430 as standard |
||||
|
2. Hair-lined stainless steel 304 or 316 as optional |
||||
|
3. Trespa phenolic resin as optional |
||||
|
4. Epoxy powder coated EGJfor ecomonic models |
||||
|
▪ Exterior Color Selection for 2 tone |
||||
|
1. Main color off-white / light grey I dark grey |
||||
|
2. Front panel dark blue I red purple / all light grey |
||||
|
3. base Stand dark blue I red purple with light grey |
||||
|
▪ Centrifugal sirocco Fan |
||||
|
1. EGI steel fan with epoxy powder coated |
||||
|
2. Polypropelen fan for anti - add |
||||
|
Specification |
||||
|
Model |
LFH-1150H |
LFH-1150H |
LFH-1180H |
|
|
Dimensions |
Inner |
1050 x 650 x 750 mm |
1350 x 650 x 750 mm |
1650 x 650 x 750 mm |
|
(W x D x H mm) |
Outer |
1200 x 750 x 2250 mm |
1500 x 750 x 2250 mm |
1800 x 750 x 2250 mm |
|
Air Volume ( Approx ) |
1450 CMH ( +/- 10 % ) |
2400 CMH ( ±10 % ) |
2400 CMH (±10 % ) |
|
|
Buitt-in Sirroco Fan |
260 W |
400 W |
400 W |
|
|
Controller |
Air velocity and monitoring, automatic air velocity control |
|||
|
Low air velocily visual & audible alarm. Oock and 'time, auto stop for door excess open |
||||
|
Face Air Velocity |
0.5 mlsec at Factory set |
|||
|
Air Speed Control Range |
0.3 - 1.0 m/sec |
|||
|
Noise level |
56 - 60 dBA |
|||
|
Light with safety cover |
Stainless steel 304 Hair-lined |
|||
|
Material |
Interior |
Incandescent lamp x lEA |
||
|
Exterior |
Epoxy powder coated Electro Galvanized steel |
|||
|
Sash Door |
Tempered safety glass sliding door with stainless steel frame |
|||
|
Utility Device |
Water faucet; Air cock, Gas cock |
|||
|
2 Ports Power Receptacle 110 V or 220 V x 2 EA |
||||
|
Electric Supply |
llOV 60Hz or 220V SO/6OHz |
|||
