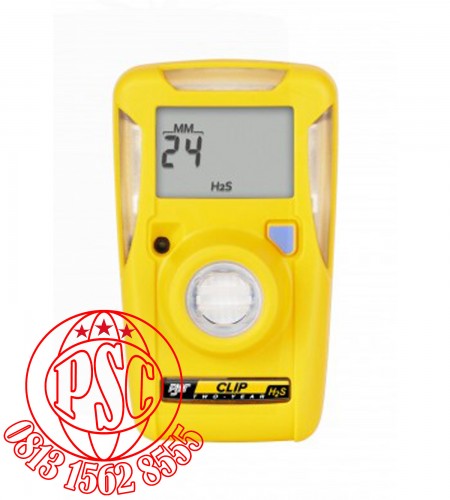

BW GasAlertClip Extreme Single Gas Detectors

BW GasalertClip Extreme Single Gas Detectors

Specifications

Size

1.6 x 2.0 x 3.4 in. / 4.1 x 5.0 x 8.7 cm

Weight

3.2 oz. / 92 g

Temperature

H₂S

-40 to +122 °F / -40 to +50 °C

CO

-22 to +122 °F / -30 to +50 °C

O₂

-4 to +122 °F / -20 to + 50 °C

SO₂

-22 to +122 °F / -30 to +50 °C

Humidity

5 % - 95 % RH ( non-condensing )

Alarms

Visual, vibrating, audible ( 95 dB ) - Low, High

Tests

Activated detectors automatically perform one internal diagnostic test every 24 hours.

Typical battery life

Two years ( H₂S, CO, O₂ or SO₂ or CO )

Event logging

35 most recent events

Ingress Protection

IP 66/67

Certifications and approvals

Class I, Div. 1, Gr. A, B, C, D Class I, Zone 0 , Gr. IIC

ATEX: 0539 II 1G

Ex ia IIC T4 Ga IP66/67

DEMKO 14 ATEX 1356

IECEx: Ex ia IIC T4 Ga IP66/67

IECEx UL 14.0063

European Conformity

Warranty

Two or three years from activation ( given normal operation ), plus one year shelf life ( 6 months for O₂ ). Up to three years for two-year H₂S and CO detectors when used with the hibernation feature, limited to 24 months of detector operation.

Sensor Specifications

Gas

Measuring Range

Low Alarm Level

High Alarm Level

2 or 3 year detector

H₂S

0 -100 ppm

10 ppm

15 ppm

CO

0 - 300 ppm

35 ppm

200 ppm

2 year detector only

O₂

0 - 25.0 % by vol.

19.5 %

23.5 %

SO₂

0 - 100 ppm

5 ppm

10 ppm

Alarm setpoints are user adjustable before and after activating the detector.

Set points shown are default values as shipped from the manufacturer. Additional default values are available.
