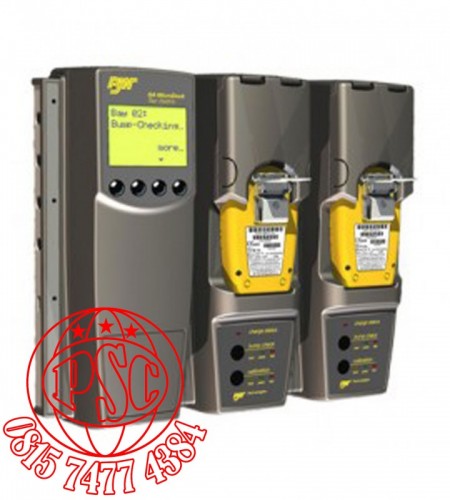

BW MicroDock 2 Calibration and Docking Station
Perhatian!
Spesifikasi BW MicroDock 2 Calibration and Docking Station
|
BW MicroDock2 Calibration and Docking Station |
|
|
Specifications |
|
|
Microcontroller |
High performance microcontroller system |
|
Power Supply |
6V wall adapter or four C-cell batteries |
|
Real-Time Clock |
Provides time and date stamp for "last calibration" and "last bump" data |
|
Data Storage |
Automatic (instrument and base station) 64 MB MultiMediaCard data storage system |
|
External Interface |
USB 2.0 interface for PC ( USB 2.0 full speed ) |
|
Pump |
DC motor, micro-diaphragm; 3.3V PCB mount |
|
Flow Rate |
Typically 300 mL/min |
|
Calibration Gas Cylinder Inputs |
2-gas inlets (standard) 5-gas inlets (maximum) |
|
Automatic Tests |
Functional bump, calibration, audible alarm, visual alarm |
|
Configuration Recognition |
Automatic ( instrument and sensor ) |
|
Detector Configuration |
User-settable with Fleet Manager applications |
|
Calibration Gas Connections |
Built-in ( base station ) 1/8" SMC connect sub-miniature coupling |
|
Solenoid |
Built-in ( docking modules ) |
|
LED Indicators |
Yellow - TEST ( on each docking module ) |
|
Green - PASS |
|
|
Red - FAIL |
|
|
LCD |
4 line x 16 characters, wide viewing angle, user-selectable backlighting |
|
Physical Size |
8.3 x 10.4 x 3.2 in. / 21.2 x 26.3 x 8.2 cm ( base station plus one docking module ) |
|
Enclosure |
Impact- resistant PC/ABS ( polycarbonate ) |
|
Command Keys |
base Station |
|
Menu navigation |
|
|
Docking Modules |
One touch Bump-test initiation |
|
One touch Calibration initiation |
|
|
Communications Method |
Infrared communication between docking module and detector |
|
Order Information |
|
|
BW DOCK2-3-1C1K-00-G |
base Station with GasalertMicro 5 Series Module, 1 Fresh Air and 2 Gas Inlets, Charging with Power Supply |
|
BW DOCK2-0-1G-00-G |
GasalertClip Extreme Carbon Monoxide ( CO ) Docking Module |
|
BW DOCK2-0-1M-00-G |
GasalertMax XT II and GasalertMax XT Docking Module, Charging With No Power Supply |
|
BW DOCK2-0-1N-00-G |
GasalertQuattro Docking Module, Charging With No Power Supply |
|
BW DOCK2-0-1P-00-G |
GasalertMicroClip Docking Module, Charging with No Power Supply |
|
BW DOCK2-2-00-G |
base Station with 1 Fresh Air and 1 Gas Inlet, Without Power Supply |
|
BW DOCK2-2-1C1K-00-G |
base Station with GasalertMicro 5 Series Module, 1 Fresh Air and 1 Gas Inlet, Charging with Power Supply |
|
BW DOCK2-2-1C1M-00-G |
base Station with GasalertMax XT II and GasalertMax XT Module, Charging with Power Supply |
|
BW DOCK2-2-1C1N-00-G |
base Station with GasalertQuattro Module, Charging with Power Supply |
|
BW DOCK2-2-1C1P-00-G |
base Station with GasalertMicroClip Docking Module, Charging with Power Supply |
|
BW DOCK2-2-1D-00-G |
base Station with Gasalert Extreme Module |
|
BW DOCK2-2-1E-00-G |
base Station with GasalertClip Extreme Hydrogen Sulfide ( H₂S ) Module |
|
BW DOCK2-2-1F-00-G |
base Station with GasalertClip Extreme Sulfur Dioxide ( SO₂ ) Module |
|
BW DOCK2-2-1G-00-G |
base Station with GasalertClip Extreme Carbon Monoxide ( CO ) Module |
|
BW DOCK2-2-1H-00-G |
base Station with GasalertClip Extreme Oxygen ( O₂ ) Module |
|
BW DOCK2-2-1J-00-G |
base Station with GasalertMicro 5 Series Module with 1 Fresh Air and 1 Gas inlet, Non-Charging |
|
BW DOCK2-2-1M-00-G |
base Station with GasalertMax XT II and GasalertMax XT Module, Charging with No Power Supply |
|
BW DOCK2-2-1N-00-G |
base Station with GasalertQuattro Module, Charging with No Power Supply |
|
BW DOCK2-2-1P-00-G |
base Station with GasalertMicroClip Docking Module, Charging with No Power Supply |
|
BW DOCK2-3-00-G |
base Station with 1 Fresh Air and 2 Gas Inlets, Without Power Supply |
|
BW DOCK2-4-00-G |
base Station with 1 Fresh Air and 3 Gas Inlets, Without Power Supply |
|
BW DOCK2-5-00-G |
base Station with 1 Fresh Air and 4 Gas Inlets, Without Power Supply |
