MSA Breathing Air Compressor 100 Series

MSA Breathing Air Compressor 100 Series

1 Concept, choice of 3 Models

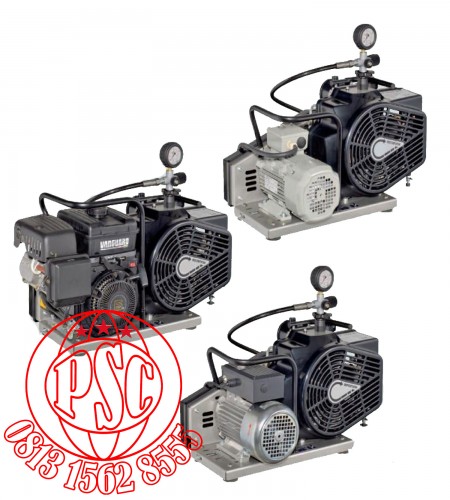

The MSA 100 Is a 3 stage, 3 cylinder air cooled, 011 lubricated high pressure compressor ava.ilableIn 3 versions :

Model

Drive Motor

MSA 100EFI

Electric motor 400V 3 Phase 50/60 Hz. Cable & Plug ( 16A CEE ) Start/Stop switch.

Recommended Fuse 16 A

MSA 100EFI1

Electric motor 230V AC ( 1 Phase ) 50160 Hz. Cable & Plug ( CEl, Start/Stop swncn,

Recommended Fuse 16A

MSA 100PFI

Vanguard 118400 4-stroke gasoline drlvewlth hand pull start, low 011cut off.

Technical Data

Model

Capacity

Drive

Max Pressure

Filter life

Dimensions

Weight

@20 °C

L x W x H

liter/min

cfm

Nm'/h

klV

HP

bar

RPM

m'

h

cm

Kg

MSA 100EFI

100

3.5

6

2.2

3

330

2300

108

18

67

40

40

43

MSA 100EFI1

100

3.5

6

2.2

3

330

2300

108

18

65

39

40

46

MSA 100PFI

100

3.5

6

4.~

6

330

230~

10.8

18

70

35

40

43

Features and Benefits

Hardened cylinder sleeves

- The Aluminium casting is equipped with 3 steel cylinder sleeves, hardened for long life and oonsistent high performance

All pistons witll meta/ piston rings

- The pistons are all equipped wtth metal piston rings tor high sealing performance and durability even when working under extreme conditions and high operating temperature

Stainless steel frame

- The stainless steel frame gives excellent stability and protection to the complete compressor. The frame design allows simply changes between drive motors

Precision macllined suction/pressure valves

- The oomblned suction/pressure valves and with stainless steel valVe plates have been specially designed and tried and tested tor reliability and perfor­ mance over a long lite expectancy

Efficient cooling for extended filter life

- The Inter-stage and final coolers are designed for optimum cooling and manufactured from non corroding material. The Inlet temperature to the filter Is only 6°C higher than the ambient temperature ( at 2O°Cl. which cooslderably extends the life of the filter cartridge and reduces running oosts )

Intearated carryIng lIand/es

- Ergonomically designed canylng handles allow easy transport and loading

- Into vehicles or onto vessels. The canylng handles also protect the upper components of the compressor.
