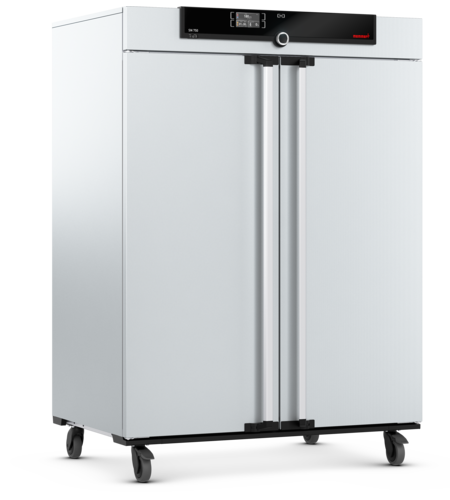

MEMMERT Steriliser SN750
Update Terakhir
08-08-2018
Dilihat Sebanyak
62 kali
Lokasi
DKI Jakarta - Jakarta Pusat - Kemayoran
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi MEMMERT Steriliser SN750
Temperature
| Set temperature range in °C | min. 5°C above ambient up to +250°C |
|---|---|
| resolution of display for setpoint values 0.1°C up to 99.9°C, 0.5°C from 100°C and for actual values 0.1°C (LED) | |
Control of standard components
| Temperature | 1 Pt100 sensor DIN class A in 4-wire-circuit |
|---|---|
| ControlCOCKPIT | adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display |
Control technology
| Timer | Digital backwards counter with target time setting, adjustable from 1 minute to 99 days |
|---|---|
| Function SetpointWAIT | the process time does not start until the set temperature is reached |
| Calibration | three freely selectable temperature values |
| Language setting | German/English/Spanish/French |
| adjustable parameters | temperature (Celsius or Fahrenheit), air flap position, programme time, time zones, summertime/wintertime |
Ventilation
| natural convection | |
|---|---|
| Fresh air admixture | adjustment of pre-heated fresh air admixture by air flap control in 10 % steps |
| Vent | vent connection with restrictor flap |
Communication
| Documentation | programme stored in case of power failure |
|---|---|
| Programming | AtmoCONTROL software for reading out, managing and organising the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand). |
Safety
| Temperature control | adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature |
|---|---|
| Autodiagnostic system | for fault analysis |
Standard equipment
| Scope of delivery | incl. works calibration certificate for +160°C |
|---|---|
| Door | fully insulated stainless steel doors with 2-point locking (compression door lock), lockable |
| Interior | easy-to-clean interior,made of stainless steel,reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides |
| Internals | 2 stainless steel grids |
Stainless steel interior
| Max. loading of chamber: | 300 kg |
|---|---|
| Dimensions W x H x D in mm | w(A) x h(B) x d(C): 1040 x 1200 x 600 mm |
| Volume | 749 l |
Textured stainless steel casing
| Housing | rear zinc-plated steel |
|---|---|
| Installation | on lockable castors |
| Dimensions | w(D) x h(E) x d(F): 1224 x 1726 x 784 mm |
Electrical data
| 400 V, 3 phases, 50 Hz / approx. 7000 W |
Packing/shipping data
| the appliances must be transported upright | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Customs tariff number | 8419 8998 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Country of origin | Federal Republic of Germany | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WEEE-Reg.-No. | DE 66812464 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions approx incl. carton | B x H x T: 1330 x 1910 x 1050 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net weight | approx. 217 kg | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross weight carton | approx. 288 kg
