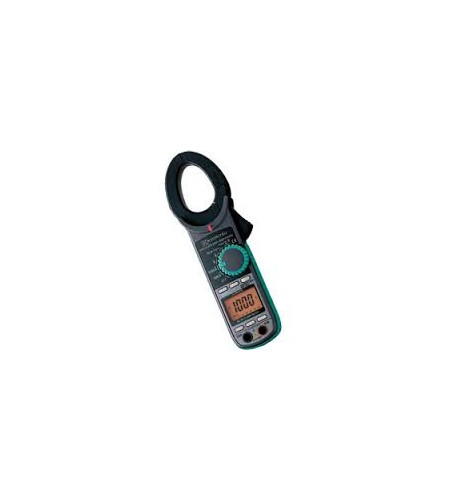

KYORITSU – 2056R

Update Terakhir
09-08-2018
Dilihat Sebanyak
83 kali
Lokasi
DKI Jakarta - Jakarta Pusat - Kemayoran
Harga
Kontak Kami
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi KYORITSU – 2056R



Product Description

  • Designed to meet international safety standard IEC 61010-1 CAT IV 600V.
  • CAT IV Clamp Meters can measure the Voltage and Current in both very low and high power circuits.
  • Thus, very useful for power distribution companies, power utilities and maintenance fields.
  • True RMS enables an accurate measurement.

Specification

AC A 0 – 600.0/1000A
|±2.0%rdg±5dgt (50/60Hz)
|±3.5%rdg±5dgt (40 – 500Hz)
DC A 0 – 600.0/1000A
|±1.5%rdg±5dgt
AC V 6/60/600V
Auto Ranging
|±1.5%rdg±4dgt (50/60Hz)
|±3.5%rdg±5dgt (40 – 400Hz)
DC V 600m/6/60/600V
Auto Ranging
|±1.0%rdg±3dgt
Ω 600/6k/60k/600k/6M/60MΩ (Auto Ranging)
|±1%rdg±5dgt (600 – 6M) / ±5%rdg±8dgt (60M)
Continuity buzzer Buzzer Sounds at 100Ω
Frequency/DUTY 10/100/1k/10kHz (Auto Ranging) / 0.1 – 99.9%
Temperature -50ºC – +300ºC (With the use of Temperature probe 8216)
Conductor Size Ø40mm
Withstand Voltage 6880V AC for 5 seconds
Safety Standard IEC 61010-1 CAT IV 600V,
IEC 61010-031,
IEC 61010-2-032,
IEC 61326
Power Source R03 (1.5V) (AAA) × 2
Dimensions 254(L) × 82(W) × 36(D)mm
Weight 310g
Accessories 7066A (Test leads)
9094 (Carrying case)
Instruction Manual
Optional 8008 (Multi-Tran)
8216 (Temperature probe)
