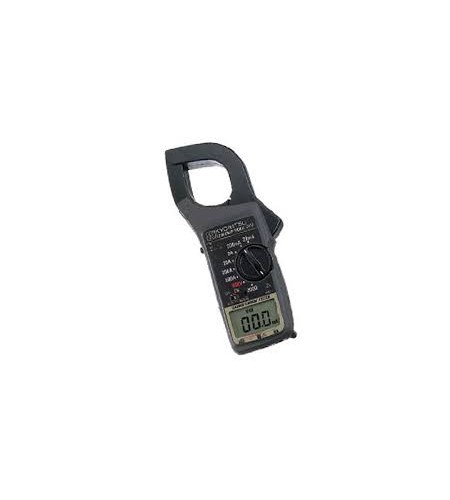

Spesifikasi KYORITSU – 2412



Product Description

  • Digital clamp meter with tear drop shaped, medium size transformer jaws specially designed for leakage current measurement.
  • Frequency filter switch to eliminate the effect of harmonics.
  • Output terminal for connection to recorders and facility to operate from external power supply permit continuous leakage current monitoring.

Specification

AC A
(50/60Hz)
20/200mA/2/20/200/500A
|±1.5%rdg±5dgt (20/200mA/2A)
|±2%rdg±5dgt (20/200A)
|±2.5%rdg±5dgt (500A)
AC A
(WIDE)
20/200mA/2/20/200/500A
|±1%rdg±3dgt [50/60Hz],
|
±5%rdg±5dgt [40 – 400Hz] (20/200mA/2A)
|±1.5%rdg±3dgt [50/60Hz],
|±5%rdg±5dgt [40 – 400Hz] (20/200A)
|±2%rdg±3dgt [50/60Hz],
|±5%rdg±5dgt [40 – 400Hz] (500A)
AC V 600V
|±2%rdg±5dgt (50/60Hz)
|±5%rdg±5dgt (40 – 400Hz)
Ω 200Ω|±1.5%rdg±5dgt
Conductor Size Ø40mm max.
Effect of External
Stray Magnetic Field
Ø15mm 100A
10mA AC max.
Frequency Response 40 – 400Hz
Output
Recorder : DC200mV against the maximum value of each range (500A range is 50mV)
Withstand Voltage 3700V AC for 1 minute
Power Source 6F22 (9V) × 1 or AC Adaptor
Dimensions 209(L) × 96(W) × 45(D)mm
Weight 450g approx.
Accessories 7066A (Test leads)
9169 (Carrying case)
8025 (Plug for output jack)
6F22 × 1
Instruction Manual
Optional 8008 (Multi-Tran)*
8022 (AC adaptor) (110V)
8023 (AC adaptor) (220V)
7256 (Output cord)
