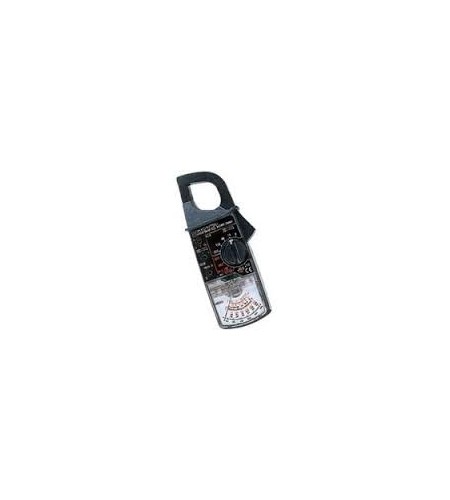

KYORITSU – 2608A
Gambar Produk
KYORITSU – 2608A
Update Terakhir
09-08-2018
Dilihat Sebanyak
101 kali
Lokasi
DKI Jakarta - Jakarta Pusat - Kemayoran
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi KYORITSU – 2608A
Product Description
- DC voltage range is also available especially for checking emergency battery operated power supply.
- Can measure temperature using optional probe.
- Tear drop shaped transformer jaws for ease of use.
Specification
| AC A | 6/15/60/150/300A ±3% of FS |
| AC V | 150/300/600V ±3% of FS |
| DC V | 60V ±3% of FS |
| Ω | 1/10kΩ (25/250Ω mid-scale) |±2% of scale length |
| Temperature | -20ºC – +150ºC (with the use of Temperature Probe 7060) |±5ºC (0ºC – +100ºC) |±10ºC (other ranges) |
| Conductor Size | Ø33mm max. |
| Frequency Response | 50Hz/60Hz |
| Safety Standard | IEC 61010-1 CAT III 300V Pollution Degree 2 IEC 61010-2-031 IEC 61010-2-032 |
| Withstand Voltage | 3700V AC for 1 minute |
| Power Source | R6 (AA) (1.5V) × 1 |
| Dimensions | 193(L) × 78(W) × 39(D)mm |
| Weight | 275g approx. |
| Accessories | 7066A (Test leads) 8923 (Fuse [0.5A/600V]) × 2 9097 (Carrying case) R6 (AA) × 1 Instruction Manual |
| Optional | 7060 (Temperature probe) 8008 (Multi-Tran) |
