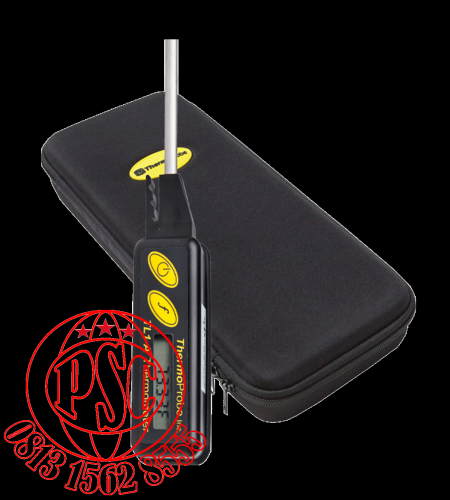

Digital Thermometer TL1-R ThermoProbe
Perhatian!
Spesifikasi Digital Thermometer TL1-R ThermoProbe
Digital Thermometer TL1-R ThermoProbe |
Product Description |
The TL1-R is an intrinsically safe precision thermometer designed for use in hazardous locations. The TL1-R is a compact reference with accuracy comparable to instruments costing twice as much. The TL1-R is well suited for establishing temperature traceability in equipment that requires high accuracy. The TL1-R is also perfect for metrology applications and as a calibration reference thermometer. It is an extremely accurate portable hand held instrument that is ideally suited for field applications and indoor laboratory uses. There is no other digital thermometer with this accuracy in such a small package. |
The versatile software functions allow easy selection of Celsius or Fahrenheit units and display resolution. Encoded calibration is unaffected by temperature, vibration, or battery removal. Low battery display, and failure mode indications protect the user from false data. The intuitive display indicators allow the user to establish accurate temperature readings. Minimum, maximum and average temperatures are automatically stored to memory for later reference |
The TL1-R is constructed with a robust aluminum case and stainless steel temperature probe. Different from most electronic thermometers, the “Cordless” TL1-R has no wires to get in the way or break. The sealed overlay switch interface makes for intuitive operation. Standard probe lengths are 8 and 12 inches with additional lengths available upon request. The TL1-R comes equipped with easily replaceable AAA batteries, providing up to 200 hours of operation |
Certifications |
The TL1-A certifications are recognized in Europe ( ATEX ) and internationally ( IECEx ) |
Applications |
|
Hazardous location, Intrinsically Safe, Laboratory, Temp., Calibration, Reference, Petroleum, Pipeline, Thermo well, Thermowell, Handheld, Metrology, NIST, Traceable, Certified, API, ASTM, Temp. bath, Distillation, Melting point test, Flash point test, Prover, Flow meter, Pharmaceutical, Food, Dairy, Pete’s Plug, Viscosity, Portable, Digital, Inspector, Temp. Calibrator, Precision, Ex, UL, ATEX, IECEx |
|
Technical Specifications |
|
Display |
LCD with 0.25 inch characters; Trend Indicating Arrows; Low Battery & Fault indication |
User Functions |
Auto Off after 20 minutes or continuous operation; Lowest Reading; Highest Reading, Average Reading; Switchable in Units of °C or °F; Display tenths or hundredths resolution |
Construction |
Stainless Steel temp. sensor; Standard Sensor length 20 cm ( 8" ); Standard diameter 6.35 mm ( 1/4" ) with reduced diameter tip of 4.76mm ( 3/16" ); Sensor mount acetyl plastic; Electronics and display in 3.5" × 1.2" anodised Aluminum enclosure; Molded Silicone seal; Highly durable display window, graphics and membrane switches. |
Weight |
124 g ( 4 ounce ) |
Temperature Resolution |
0.001 Degress |
Standard Calibrated Range : -20 °C to 150 °C; -4 °F to 300 °F |
Tolerance : ± 0.04 °C ; ± 0.07 °F NIST Traceable Report of Test |
Temperature Time Constant |
19 seconds in circulated water bath ( 63.2 % response to temperature change ) |
Electronics |
Microcontroller and precision 20 bit A/D Converter; FLASH memory; Recommended Ambient Temp. Range for best accuracy 0 °C to 44 °C, 32 °F to 112 °F |
Sensor |
200 Ohm, Wire-wound Platinum RTD |
Immersion depth 4", 11 cm |
|
Battery |
20 mm Coin Size 3 V Lithium, Duracell Type CR2032; Over 100 hours Service Life at 21 °C, 70 °F |
Battery Operating Range -20 °C to 54 °C ( -4°F to 130 °F ). |
|
Note: Battery may not provide adequate power if ambient temperature is below -20 °C, -4 °F or above 54 °C, 130 °F |
