Spesifikasi DBADGE2™ NOISE DOSIMETER



DBADGE2™ NOISE DOSIMETER

• INTRINSICALLY SAFE

• BLUETOOTH® CONNECTIVITY AND AIRWAVE APP

• OPTIONAL OCTAVE BAND ANALYSIS & RECORDING OF AUDIO

• MULTIPLE ‘SIMULATED’ DOSIMETERS

• MOTION SENSOR

  • PRODUCT OVERVIEW

    The dBadge2 is the next generation in personal noise dosimeters, offering features only previously available in the most advanced of hand held sound level meters.  The dBadge2 personal noise dosimeter is the ideal tool for a variety of workplace noise assessments and campaigns with the added benefit of Bluetooth® Connectivity meaning you can connect the dBadge2 to your smartphone or mobile device.  Now with Intrinsically Safe versions, the dBadge2 is the perfect tool for personal noise assessment, whichever industry or environment you work in.

    Intrinsically Safe

    Intrinsically Safe versions of the dBadge2 personal noise dosimeter are available.  The dBadge2 personal noise dosimeter has been designed specifically to be used in potentially explosive area in the oil and gas, petrochemical and pharmaceutical industries.

    Get Connected!

    Monitor your dBadge2 remotely with the supporting Airwave App on your mobile device.  There’s no need to disturb the wearer when you can view the status or even start, stop or pause the measurement run. The dashboard display provides summary data at a glance, and you can simply tap to select an instrument for further data.  Email this data alongside photos and notes direct to your PC for easier reporting.

    Audio Recording

    Available on the Plus and Pro models, the audio recording option allows you to record voice notes for a measurement run such as an employee’s name or task. The dBadge2™ personal noise dosimeter also allows you to set parameters to trigger a recording, e.g. when a limit is exceeded or to identify a particular event.

    Octave Band Analysis

    One only found on an advanced hand-held sound level meter, octave band analysis is available as an option on the dBadge2 Pro personal noise dosimeter model. It allows more information to be available on which to base important control measures and help with the choice of hearing protection. Overall LEQ and LMAX values are displayed both on screen in graphical format and in a table format when downloaded.

    Multiple Simulated Dosimeters

    The dBadge2 personal noise dosimeter has a ‘multiple simulated dosimeter’ capability to display noise exposure results according to differing regional or international protocols.  These simulated dosimeters simply define the measurement parameters displayed on screed, e.g. ISO, OSHA, MSHA, ACGIH set-ups as well as user defined set-ups.

    Colour Display

    The dBadge2™ personal noise dosimeter takes full advantage of the OLED display by colour coding screens, status and alarms.  This aids data interpretation in the field but also allows you to define your own alarm values where the screens will change colour, giving a strong visual indicator, when trigger levels have been exceeded.

    Motion Sensing

    The built in motion sensor expresses a worker’s movement as a percentage of the time that motion has been detected during a measurement run.  This means that you can be confident that the dBadge2™ personal noise dosimeter has been worn for the entire shift and therefore that the data from the measurement run in valid.

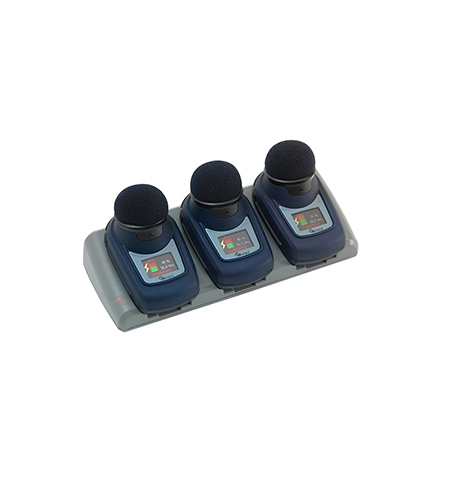

    Combined Docking Station and Charger

    When placed in any of the 3 pockets, the dBadge2™ personal noise dosimeter will begin to charge, progress being displayed on the screen of the meter.  The first pocket has a USB symbol and when placed in there, an individual dBadge2™ can download data, either via a Download Utility directly into Excel or via the Insight Data Management Software specialist dBadge2™ plugin.

    Choose your Model


    • ACCESSORIES AND PART NUMBERS

      Part Number

      Description

      dBadge2

      dBadge2   with Standard firmware, Airwave App and download utility

      dBadge2Plus

      dBadge2   Plus with Plus firmware (Audio notes & event recording), Airwave App and   download utility

      dBadge2Pro

      dBadge2   Pro with Pro firmware (Audio notes & event recording and real-time octave   band frequency analysis), Airwave App and download utility

      dBadge2/KIT1

      dBadge2   Kit, including 1-off dBadge2, CEL-120/2 Type 2 acoustic calibrator, 207078B Docking   station & charger, PC18 power supply, USB cable (CMC51), Casella Insight   data management software, Airwave App and download utility, 10-way kit case (DB2CASE/10)

      dBadge2Plus/KIT1

      dBadge2   Plus Kit, including 1-off dBadge2Plus, CEL-120/2 Type 2 acoustic calibrator,   207078B Docking station & charger, PC18 power supply, USB cable (CMC51), Casella   Insight data management software, Airwave App and download utility, 10-way   kit case (DB2CASE/10)

      dBadge2Pro/KIT1

      dBadge2   Pro Kit, including 1-off dBadge2Pro, CEL-120/2   Type 2 acoustic calibrator, 207078B Docking station & charger, PC18 power   supply and USB cable (CMC51), Casella Insight data management software, Airwave   App and download utility, 10-way kit case (DB2CASE/10)

      dBadge2/KIT10

      dBadge2   Kit including, 10-off dBadge2, CEL-120/2 Type 2 acoustic calibrator, 2 off   207078B Docking station & charger, interconnect cable (C6359/0.2), 1 off   PC18 power supply and USB cable (CMC51) , Casella Insight data management   software, Airwave App and download utility, 10-way kit case (DB2CASE/10)

      dBadge2Plus/KIT10

      dBadge2Plus   Kit, including 10-off dBadge2Plus, CEL-120/2 Type 2 acoustic calibrator, 2   off 207078B Docking station & chargers, interconnect cable (C6359/0.2), 1   off PC18 power supply, USB cable (CMC51), Casella Insight data management   software, Airwave App and download utility, 10-way kit case (DB2CASE/10)

      dBadge2Pro/KIT10

      dBadge2Pro   Kit, including 10-off dBadge2Pro, CEL-120/2   Type 2 acoustic calibrator, 2 off 207078B Docking station & charger, interconnect   cable (C6359/0.2), 1 off PC18 power supply, USB cable (CMC51), Casella Insight   data management software, Airwave App and download utility, 10-way kit case (DB2CASE/10)

      dBadge2IS

      dBadge2   IS  with Standard firmware, Airwave App   and download utility

      dBadge2ISPlus

      dBadge2   IS Plus with Plus firmware (Audio notes & event recording), Airwave App and   download utility

      dBadge2ISPro

      dBadge2   IS Pro with Pro firmware (Audio notes & event recording and real-time   octave band frequency analysis), Airwave App and download utility

      dBadge2IS/KIT1

      dBadge2   Kit, including 1-off dBadge2, CEL-120/2 Type 2 acoustic calibrator, 207078B Docking   station & charger, PC18 power supply, USB cable (CMC51), Casella Insight   data management software, Airwave App and download utility, 10-way kit case (DB2CASE/10)

      dBadge2ISPlus/KIT1

      dBadge2   IS Plus Kit, including 1-off dBadge2Plus, CEL-120/2 Type 2 acoustic calibrator,   207078B Docking station & charger, PC18 power supply, USB cable (CMC51), Casella   Insight data management software, Airwave App and download utility, 10-way   kit case (DB2CASE/10)

      dBadge2ISPro/KIT1

      dBadge2   IS Pro Kit, including 1-off dBadge2Pro, CEL-120/2   Type 2 acoustic calibrator, 207078B Docking station & charger, PC18 power   supply and USB cable (CMC51), Casella Insight data management software, Airwave   App and download utility, 10-way kit case (DB2CASE/10)

      dBadge2IS/KIT10

      dBadge2   IS Kit including, 10-off dBadge2, CEL-120/2 Type 2 acoustic calibrator, 2 off   207078B Docking station & charger, interconnect cable (C6359/0.2), 1 off   PC18 power supply and USB cable (CMC51) , Casella Insight data management   software, Airwave App and download utility, 10-way kit case (DB2CASE/10)

      dBadge2ISPlus/KIT10

      dBadge2   IS Plus Kit, including 10-off dBadge2Plus, CEL-120/2 Type 2 acoustic   calibrator, 2 off 207078B Docking station & chargers, interconnect cable   (C6359/0.2), 1 off PC18 power supply, USB cable (CMC51), Casella Insight data   management software, Airwave App and download utility, 10-way kit case (DB2CASE/10)

      dBadge2ISPro/KIT10

      dBadge2   IS Pro Kit, including 10-off dBadge2Pro, CEL-120/2   Type 2 acoustic calibrator, 2 off 207078B Docking station & charger,   interconnect cable (C6359/0.2), 1 off PC18 power supply, USB cable (CMC51),   Casella Insight data management software, Airwave App and download utility,   10-way kit case (DB2CASE/10)

      207107B/KIT

      Docking   station & charger including power supply and USB Cable for IS versions.

      207078B/KIT

      Docking   station & charger  including power   supply and USB cable, CMC51

      207078B/EXT

      Docking   station& charger extension including interconnect cable, C6359/0.2

      207078B/P

      Docking   station & charger only

      DB2WS

      Pack   of 5 windscreens

      DB2CLIPS

      Pack   of 10 Clips (5 pairs)

      DB2CASE/10

      10-way   kit case

      PC18

      Universal   12 V dc mains adaptor

      CMC51

      USB   Mini B to USB A Cable (Docking Station to PC)

      C6359/0.2

      Interconnect   cable

      CEL-252

      Type   2 microphone

      CEL-120/2

      Type   2 acoustic calibrator (in 2 off AAA batteries)

      DB2Upgrade1

      dBadge2   to dBadge2 Plus firmware upgrade

      DB2Upgrade2

      dBadge2   Plus to dBadge2 Pro firmware upgrade

      DB2Upgrade3

      dBadge2   to dBadge2 Pro firmware upgrade


      Key Uses

      • Complete shift exposure measurements
      • Task based measurements
      • Measurements in accordance with ISO9612:2009, CFR 1910.95 (USA), L108 Controlling Noise at Work (UK)
      • Identification of noise sources
      • Selection of hearing protection
      • PRODUCT DATASHEETS

        Datasheets

        • dBadge2 Noise Dosimeter (English)
