Spesifikasi Hammer Test Proseq | Digital Hammer Test Proceq SilverSchmidt ST/PC N

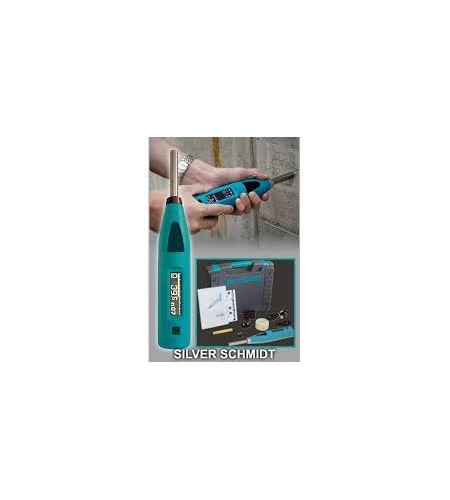

Detail Produk Digital Hammer Test Proceq SilverSchmidt

The SilverSchmidt ST/PC is the first integrated concrete test hammer featuring true rebound value and unmatched repeatability.
Two factors contribute to the improved performance of this concrete test hammer over its predecessors:

  • Velocity based detection of the rebound quotient
  • The lightweight hybrid design of the impact plunger is made from aerospace alloy, matched to the elastic properties of the concrete and equipped with a hardness steel cap

Independent validation testing by BAM (Federal Institute for Materials Research and Testing, Germany) has shown the SilverSchmidt ST/PC to have less dispersion than the classical concrete test hammer over the entire range.
The unique design and high quality construction of the concrete test hammer SilverSchmidt ST/PC makes rebound hammer testing quicker and more accurate than ever before.

Features
  • The SilverSchmidt ST/PC concrete test hammer combines a high measurement accuracy with an unmatched repeatability.
  • The rebound value requires no angular correction
  • The concrete test hammer offers customer conversion curves for a wide range of compressive concrete strengths, including low fc (<10 N/mm2, 1’450 psi) and high strength concrete (up to 100 N/mm2, 14’500 psi)
  • A large number of measurement points can be easily collected by the concrete test hammer and automatically evaluated according to statistical data
  • The concrete test hammer offers automatic conversion to the required measurement unit (MPa, N/mm2, kg/cm2, psi).
  • Price Negotiable
Technical Data
Mechanical data Type ST N / PC N
concrete test hammer
Type ST L / PC L
concrete test hammer
Impact energy 2.207 Nm 0.735 Nm
Hammer mass 135 g 135 g
Spring constant 0.79 N/mm 0.26 N/mm
Spring extension 75 mm (2.95”) 75 mm (2.95”)
Housing dimensions 55 x 55 x 255 mm (2.16” x 2.16” x 9.84”)
Weight 570 g (1.3 lb)
PC application
Only for the concrete test hammer SilverSchmidt versions PC N and PC L: Hammerlink Software
Electrical data

Display 17 x 71 pixels; graphic / alphanumeric
Power consumption ~13 mA measuring, ~4 mA setup and review, ~0.02 mA idle
Battery life >5000 impacts (before recharging)
Charger connection USB type B (5V, 100 mA)
Measuring ranges
Concrete compressive strength 10-100 N/mm2 (1450-14500 psi)
Operating temperature 0 to 50 °C (32 to 122 °F)
Storage temperature -10 to 70 °C (14 to 158 °F)
