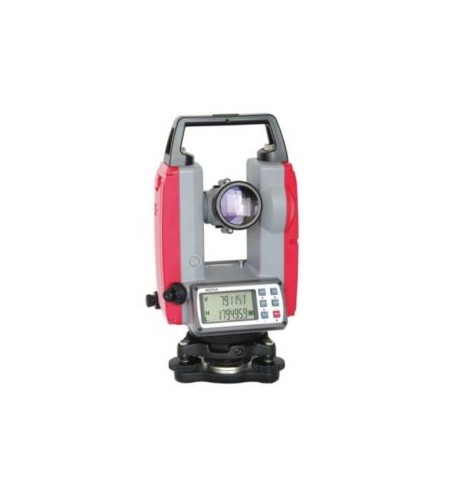

Digital Theodolite Pentax ETH-505
Gambar Produk
Digital Theodolite Pentax ETH-505
Update Terakhir
24-05-2017
Dilihat Sebanyak
66 kali
Lokasi
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Digital Theodolite Pentax ETH-505
Digital Theodolite Pentax ETH 505
Features :
- Large easy to read-display
- Zero set and reverse angle display
- A row of soft keys allows simple and fast operation.
- A large display (LCD) is incorporated on both sides of the instrument. Both vertical and horizontal angles are displayed in degrees or gons.
- All the models have a bright 30x magnification telescope which ensures sharp and clear images even in poor light conditions.
- Clockwise and counter-clockwise angle measurement
- Conversion of the vertical angle to a percentage grade
- Zero setting of the horizontal angle at any position
- Horizontal angle ‘Hold key function
- Clockwise and counter-clockwise angle measurement
- Conversion of the vertical angle to a percentage grade
- Zero setting of the horizontal angle at any position
- Horizontal angle ‘Hold key function
- Powered by Alkaline batteries
Applications
- Setting out right angles and checking plumb
- Alignment measurements
- Anchor bolt layout
- 90° layout
| Electronic Theodolites ETH-500 | Series Specification | ||||
| Model | ETH-502 | ETH-505 | ETH-510 | ETH-520 | |
| Telescope | Imaging | Erect image | |||
| Objective aperture | 45 mm | ||||
| Magnification | 30 x | ||||
| Resolution | ≤ 3” | ||||
| Field of view | 1° 20’ | ||||
| Shortest focusing distance | 1.35 m | ||||
| Stadia multiplication constant | 100 | ||||
| Stadia addition constant | 0 | ||||
| Angle Measuring | Angle measuring mode | Absolute encoder | |||
| Angle measuring accuracy | 2″ | 5″ | 10″ | 20″ | |
| Angle display | 1″/5″ | 1″/5″ | 5″/10″ | 10″/20″ | |
| Angle unit | 360°/400G | ||||
| Compensator | Tilt sensor | Automatic vertical compensation | |||
| Tilt compensator | Yes | Yes | No | No | |
| Soft switch | ON/OFF | ON/OFF | – – | – – | |
| Compensation range | ± 3’ | ||||
| Display unit | Two-sided | Two-sided | |||
| Optical plummet Image | Erect | Erect | |||
| Magnification | 3 x | ||||
| Angle of vision | 3° | ||||
| Focusing range | 0.5 m ~ ∞ | ||||
| Sensitivity of tubular vial mm | 30”/2 | 30”/2 | 40”/2 mm | 40”/2 mm | |
| Sensitivity of circular vial | 8’/2 mm | ||||
| Dust & Water Protection | IP44 | ||||
| Type of base | Detachable | ||||
| Power supply | Battery | 4 x single three (AAA) type dry battery | |||
| Ambient temperature | For operation | -20°C – +50°C | |||
| Weight | Instrument | 4.5 kg | |||
| Measurements | Carrying case | 1.9 kg | |||
| Instrument | W 175 mm x L 170 mm x H 334 mm | ||||
| Carrying case | W 330 mm x L 450 mm x H 220 mm |
