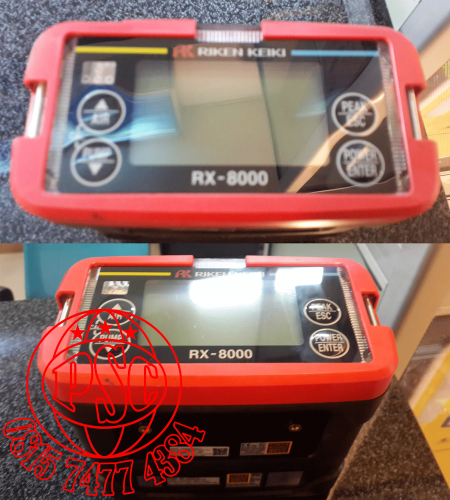

MultiGas Detector RX 8000 Riken Keiki
Perhatian!
Spesifikasi MultiGas Detector RX 8000 Riken Keiki
|
Multi Gas Detector RX 8000 Riken Keiki |
|||||
|
Specifications |
|||||
|
Target gas |
Combustibles |
Oxygen |
Hydrogen Sulfide |
Carbon Monoxide |
|
|
( CH₄, i-C₄H₁₀, H₂, others ) |
O₂ |
( H₂S ) |
( CO ) |
||
|
Detection principle |
Thermal Conductivity |
Catalytic Combustion |
Galvanic cell |
Electro-chemical |
Electro-chemical |
|
Detection range |
0-100 vol % |
0-100 LEL % |
0-40.0 % vol |
0-100.0ppm |
0-500 ppm |
|
( increments ) |
( 1 % vol ) |
( 1 % LEL ) |
( 0.1 % ) |
( 0.5ppm ) |
( 1 ppm ) |
|
Gas alarm |
N/A |
1st : 10 % LEL |
1st : 19.5 % |
1st : 10.0 ppm |
1st : 25 ppm |
|
|
2nd : 50 % LEL |
2nd : 23.5 % |
2nd : 30.0 ppm |
2nd : 50 ppm |
|
|
|
|
TWA: 10.0 ppm |
TWA : 25 ppm |
||
|
STEL: 15.0 ppm |
STEL : 200 ppm |
||||
|
Types of alarm |
Gas alarm : Latching, 2 alarms |
||||
|
Failure alarm : Flow failure, Sensor failure, Battery failure, Circuit failure, Calibration failure |
|||||
|
Display of alarm |
LED : Flashing LED’s |
||||
|
Buzzer: : Buzzer sounds alternates between a low and high pitch |
|||||
|
Visual display : Indication value flashes. Alarm message displays and flashes. |
|||||
|
Alarm sound |
More than 95 dB ( A ) at 30 cm |
||||
|
Display |
Digital LCD with auto backlight |
||||
|
Digital display ( 7 segments ) and digital bar graph ( 25 segments ) |
|||||
|
( 50 segments with single gas versions GX-8000 Type LEL & Type O₂ ) |
|||||
|
Sampling method |
Sample Draw, Minimum 0.75L/min |
||||
|
Power source |
Lithium-ion battery as standard ( fully charged in 3 hours ) |
||||
|
Optional 3 pcs AA alkaline battery pack also available ( Alkaline battery pack standard with single gas versions: GX-8000 Type O₂ / GX-8000 Type LEL -Lithium-ion battery optional ) |
|||||
|
Continuous operation |
Lithium-ion battery: more than 12 hours ( GX-8000 Type O₂, more than 20 hours ) |
||||
|
AA alkaline battery pack: more than 6 hours ( GX-8000 Type O₂, more than 12 hours ) |
|||||
|
Operating temp & humidity |
-20~+50 °C, -4-+122 °F below 95 % & RH ( Non-condensing C28 ) |
||||
|
Dimensions & Weight |
Approx. 154 (W) x 81 (H) x 127 (D) mm, Approx. 1.1 kg with Lithium ion battery (Alkaline battery 0.9 kg) |
||||
|
Approx. 6.1″ (W) x 3.1″ (H) x 4.9″ (D), Approx. 2.4 lb with Lithium ion battery (Alkaline battery 2.0 lb) |
|||||
|
Ingress proof rating |
IP67 |
||||
|
Explosion proof |
Intrinsically safe Exia II CT4 |
||||
|
Approvals |
IECEx, ATEX, MED ( Wheel Mark ), CE, TIIS, HK |
||||
|
Additional features |
Activity indicator ( pilot indicator and pump driving indicator ), Pump stop function, Bump test function, IrDA communication, Data logger, Password protection ( GX-8000 single gas versions Type LEL & Type O₂ with confidence beep and LED flash ( once every minute ) |
||||
|
|
|||||
|
GX-8000 |
Combustibles |
Oxygen ( O₂ ) |
Hydrogen Sulfide ( H₂S ) |
Carbon Monoxide ( CO ) |
|
|
Type |
( CH₄, i-C₄H₁₀, H₂, etc )* 0-100 % |
0-40 % VOL |
0-100 ppm |
0-500 ppm |
|
|
% LEL |
% VOL |
|
|
|
|
|
( catalytic sensor ) |
( TC sensor ) |
|
|
||
|
Type A |
● |
● |
● |
● |
● |
|
Type B |
|
● |
● |
● |
● |
|
Type C |
|
● |
● |
● |
|
|
Type D |
|
● |
● |
|
● |
|
Type E |
● |
● |
● |
|
|
|
Type F |
|
● |
● |
|
|
|
Type LEL |
|
● |
|
|
|
|
Type O₂ |
|
|
● |
|
|
